Sony HCD-SHAKE10 - CD;DVD Mechanism Section Exploded View

60
HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70

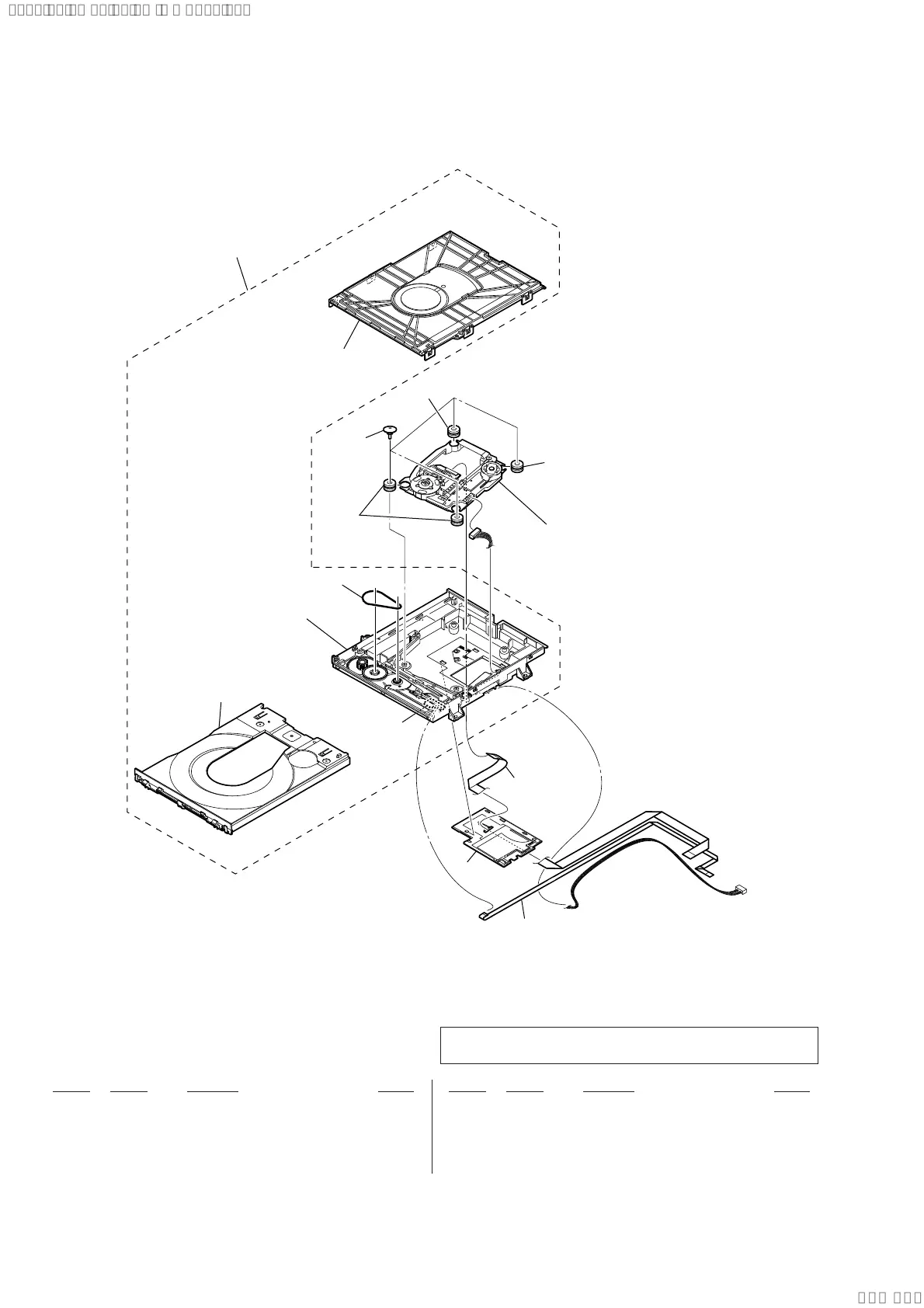

7-8. CD/DVD MECHANISM SECTION
(CDM90-DVBU204//M)
351 A-1896-391-B LOADING COMPLETE ASSY (T)
(including MS-476 board)
352 3-087-599-01 INSULATOR SCREW
353 2-634-618-21 INSULATOR
0
354 A-2046-956-A SERVICE, OPTICAL DEVICE (7G)
355 1-912-103-21 FLEXIBLE FLAT CABLE (5 CORE)
356 1-912-102-21 FLEXIBLE FLAT CABLE (24 CORE)
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If fl exible fl at cable is replaced, install it after bending it in
the same form as that before replacement.
ns
MS-476 board
(ns)
351 (including MS-476 board)
352
353
353
353
354
356
355
ns
ns
ns
ns
Ver. 1.3
