Sony HCD-SHAKE10 - Back Panel Section Exploded View

55
HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70

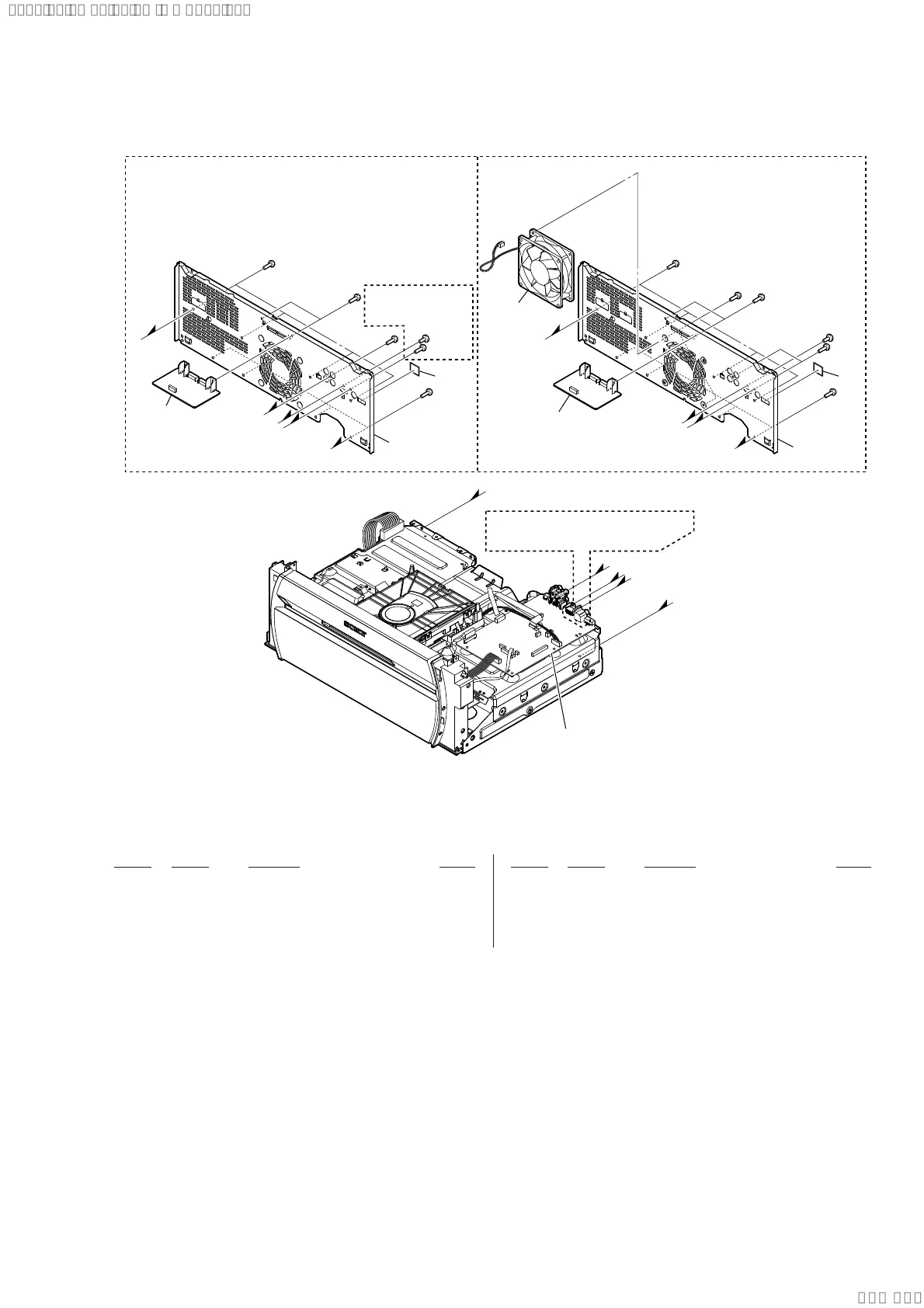

7-3. BACK PANEL SECTION
0 101 1-855-340-11 DC FAN (HCDSHAKEX70)
102 A-2167-940-A LED DRIVER BOARD, COMPLETE (SHAKE10/
SHAKE30/HCDSHAKEX10/HCDSHAKEX30)
102 A-2167-941-A LED DRIVER BOARD, COMPLETE
(HCDSHAKEX70)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-547-04 SCREW +B 3X6 (HCDSHAKEX10/
HCDSHAKEX30/HCDSHAKEX70)
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(HCDSHAKEX10/HCDSHAKEX30/
HCDSHAKEX70)
(SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30) (HCDSHAKEX70)
102
101
#1
#1
#1
#1
#1
ns
ns
ns
MOTHERBOARD BOARD section
K
K
L
L
H
H
I
102
#1
#1
#1
#2
#2
#1
#1
ns
K
L
H
I
J
I
J
(HCDSHAKEX10/
HCDSHAKEX30)
Ver. 1.1
