Sony HCD-SHAKE10 - Exploded Views of Major Sections; Panel and Side Section Exploded View

53
HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
SECTION 7
EXPLODED VIEWS
Note:
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Items marked “*” are not stocked since
they are seldom required for routine
service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

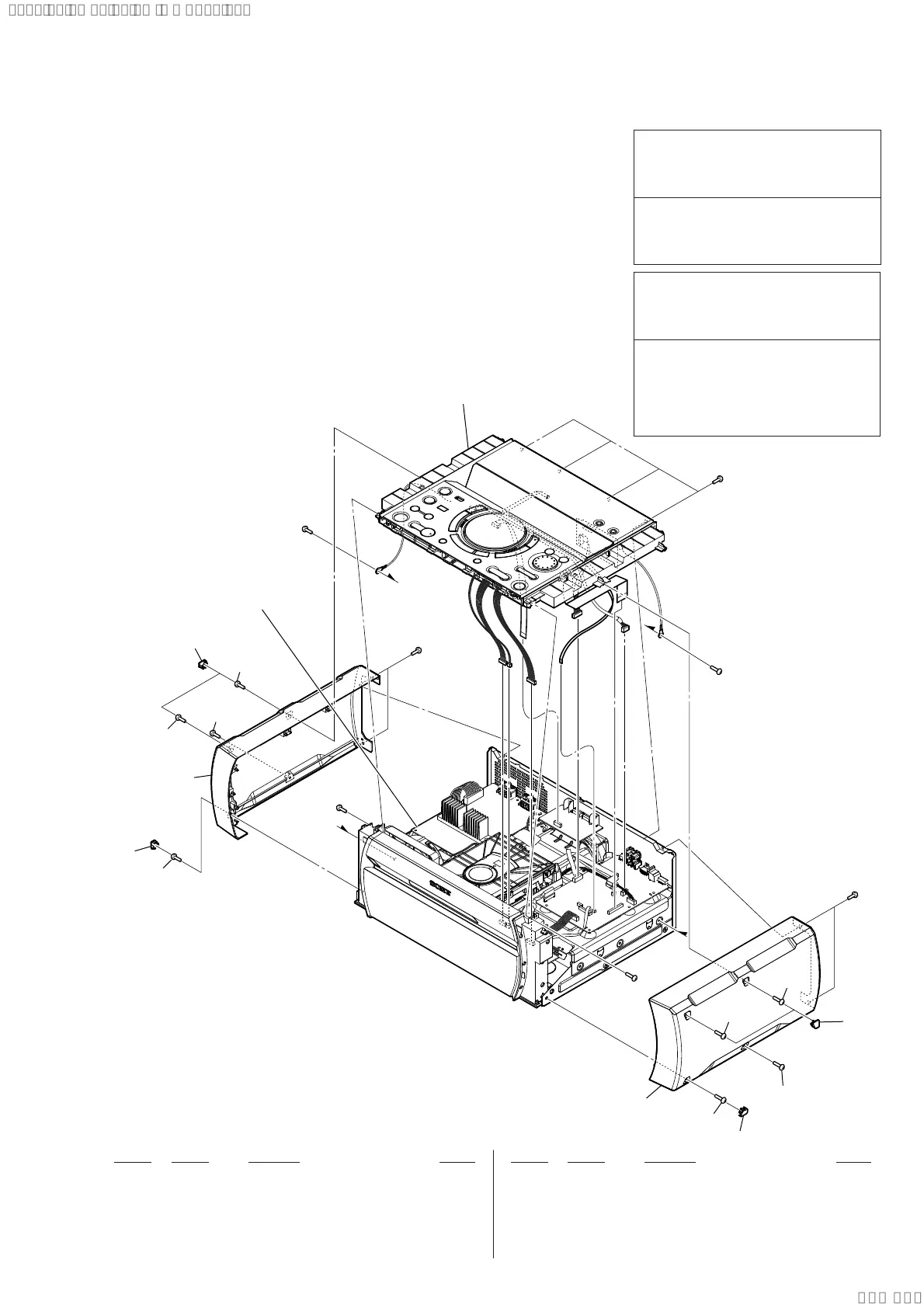

7-1. PANEL, SIDE SECTION
1 4-558-956-01 COVER SCREW A
2 4-558-957-01 COVER SCREW B
3 4-162-271-01 SCREW, TAPPING
4 4-548-124-01 PANEL, SIDE (L) (HCDSHAKEX10/
HCDSHAKEX30/HCDSHAKEX70)
4 4-548-124-11 PANEL, SIDE (L) (SHAKE10/SHAKE30)
5 4-548-125-01 PANEL, SIDE (R) (HCDSHAKEX10/
HCDSHAKEX30/HCDSHAKEX70)
5 4-548-125-11 PANEL, SIDE (R) (SHAKE10/SHAKE30)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Abbreviation
AR : Argentina model
AUS : Australian model
CND : Canadian model
E4 : African model
E12 : 220 – 240 V AC area in E model
EA : Saudi Arabia model
LA9 : Latin-American model
MY : Malaysia model
RU : Russian model
TH : Thai model
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
top panel section
A
B
B
A
1
3
3
3
3
4
5
3
3
3
3
2
1
2
#1
#1
#1
#1
#1
#1
#1
2CH DAMP, 4CH DAMP
board section
