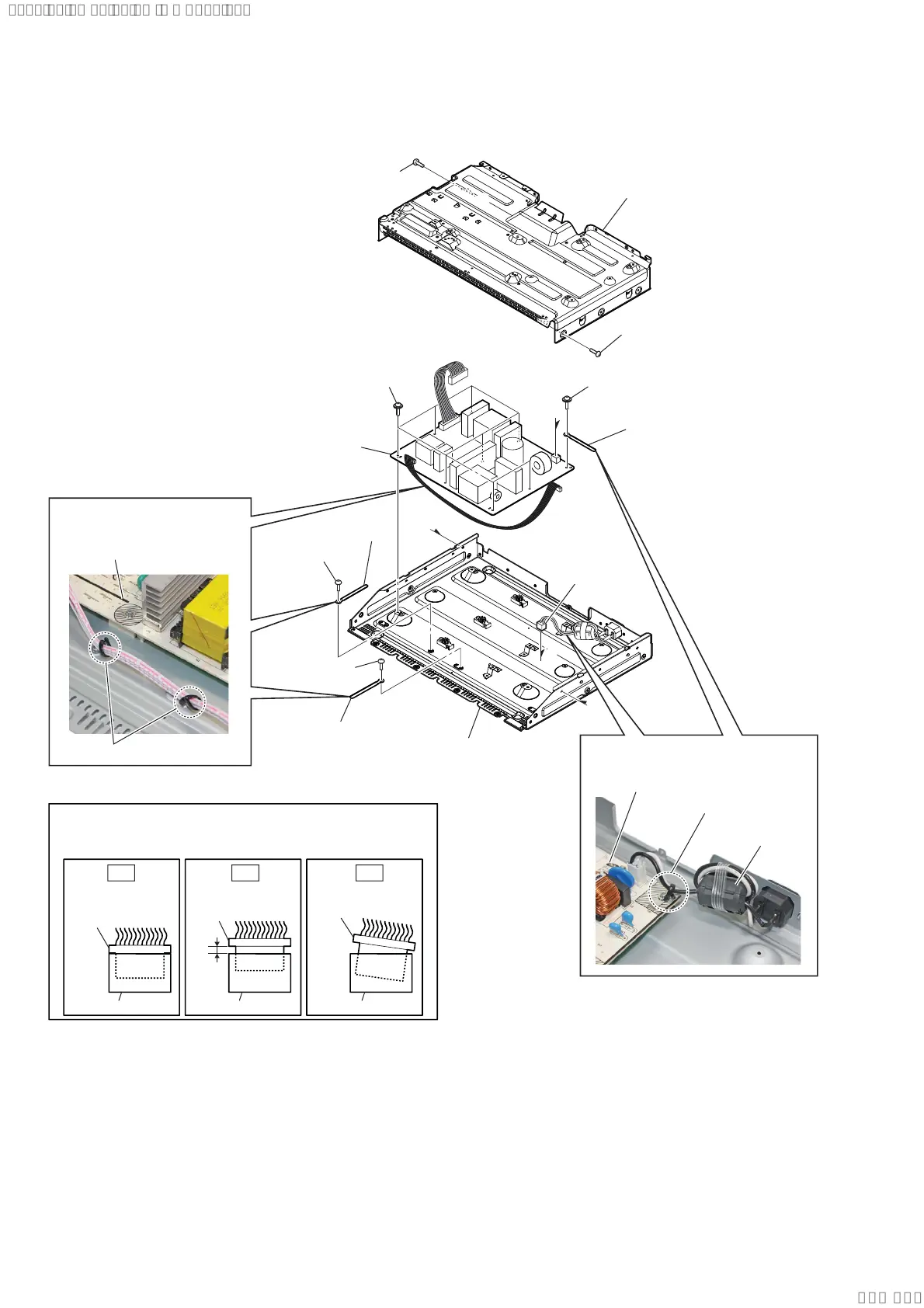

2-11. REGULATOR, SWITCHING (SSN-172AD) (SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30)
:LUHVHWWLQJ
F
5 eight screws
(+PWH 3 u 8 (SUMITITE))
5 one screw
(+PWH 3 u 8 (SUMITITE))
8 REGULATOR, SWITCHING
(SSN-172AD)
REGULATOR, SWITCHING
(SSN-172AD)
REGULATOR, SWITCHING
(SSN-172AD)
9 chassis assy (RAI)
F
E
E
1 one screw
(+BV3 (3-CR))
D
D
3 one screw
(+BVTP 3 u 8)
2 clamp (N)
3 one screw
(+BVTP 3 u 8)
4 chassis, sub assy
7 CN1 (2P)
6 clamp (N)
clamp (N)
clamp (N)
core, ferrite
1 one screw
(+BV3 (3-CR))
2 clamp
(N)
Note : When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG
