Sony HCD-SHAKE10 - Board Removal Procedures

HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
12

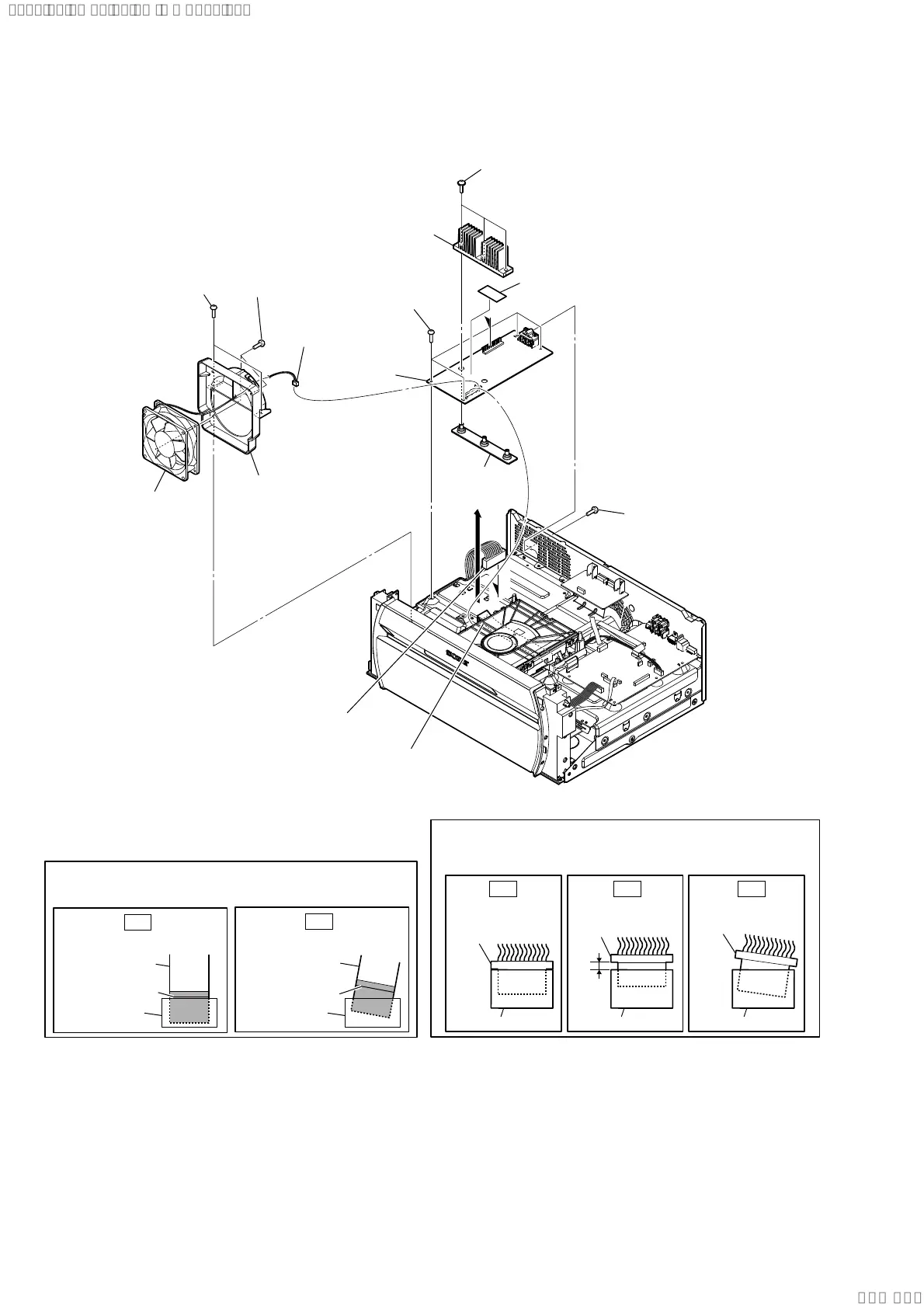

2-3. 2CH DAMP BOARD (SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30)
qs four screws
(+BVTP 3 u 8)
2 two screws
(+BVTP 3 u 8)
3 two screws
(+BVTP 3 u 8)
4 bracket, fan
(white)
5 DC fan
qg 2CH DAMP
board
qf bracket,
heat sink
qd
8 one screw
(+BVTP 3 u 8)
6 flexible flat cable
(19 core) (CN1013)
7 CN1001 (10P)
1 CN1003
(2P)
C
C
9 three screws
(+PTPWH 2.6 u L (DIA8.0))
0 sheet, thermal
qa heat sink (M3)
Note 2: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 1: When installing the flexible flat cable, ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat cable flexible flat cable
connectorconnector
OK
NG
OK NG NG
