Sony HCD-SHAKE10 - Front Panel Section; 2-10. Motherboard Board

HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
17

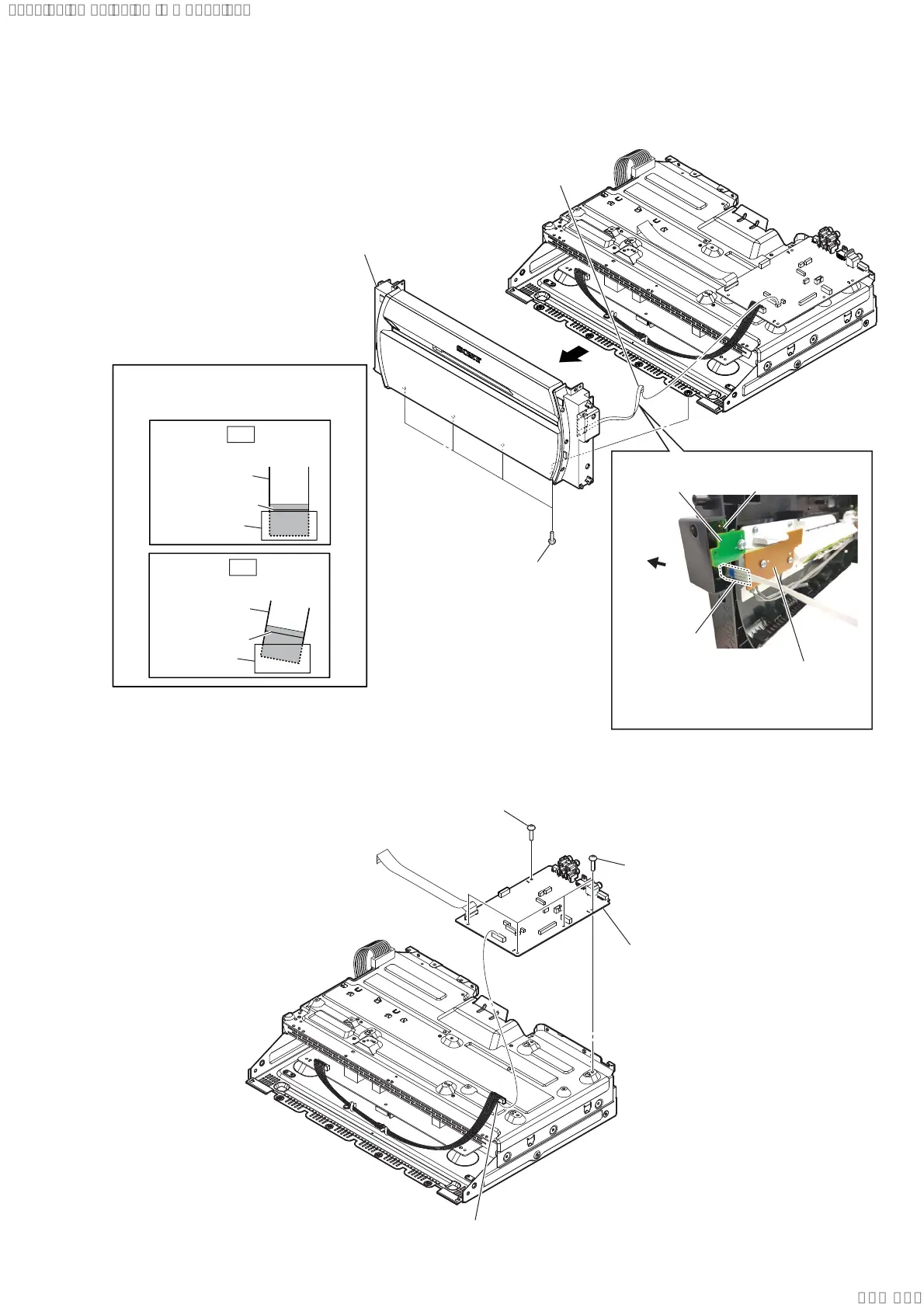

2-9. FRONT PANEL SECTION
2-10. MOTHERBOARD BOARD
2 four screws
(+BVTP 3 u 8)
2 one screw
(+BVTP 3 u 8)
3 MOTHERBOARD
board
1 CN001 (9P)
3
1 flexible flat cable
(10 core) (CN102)
2 four screws
(+BVTP 3 u 8)
4 panel, front assy
:LUHVHWWLQJ
front side
filament tape
BT holder PWB
HI-RGB RIGHT LED PC BO board
(EXCEPT HCDSHAKEX70)
HI-RGB RIGHT board
(HCDSHAKEX70)
BLUETOOTH module
Note: When installing the flexible flat cable,
ensure that the colored line
is not slanted after insertion.
colored line
Insert is straight to the interior.
connector
OK
colored line
Insert is incline
connector
NG
flexible flat cable
flexible flat cable
Ver. 1.1
