Sony HCD-SHAKE10 - Panel, Loading Assy

HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
15

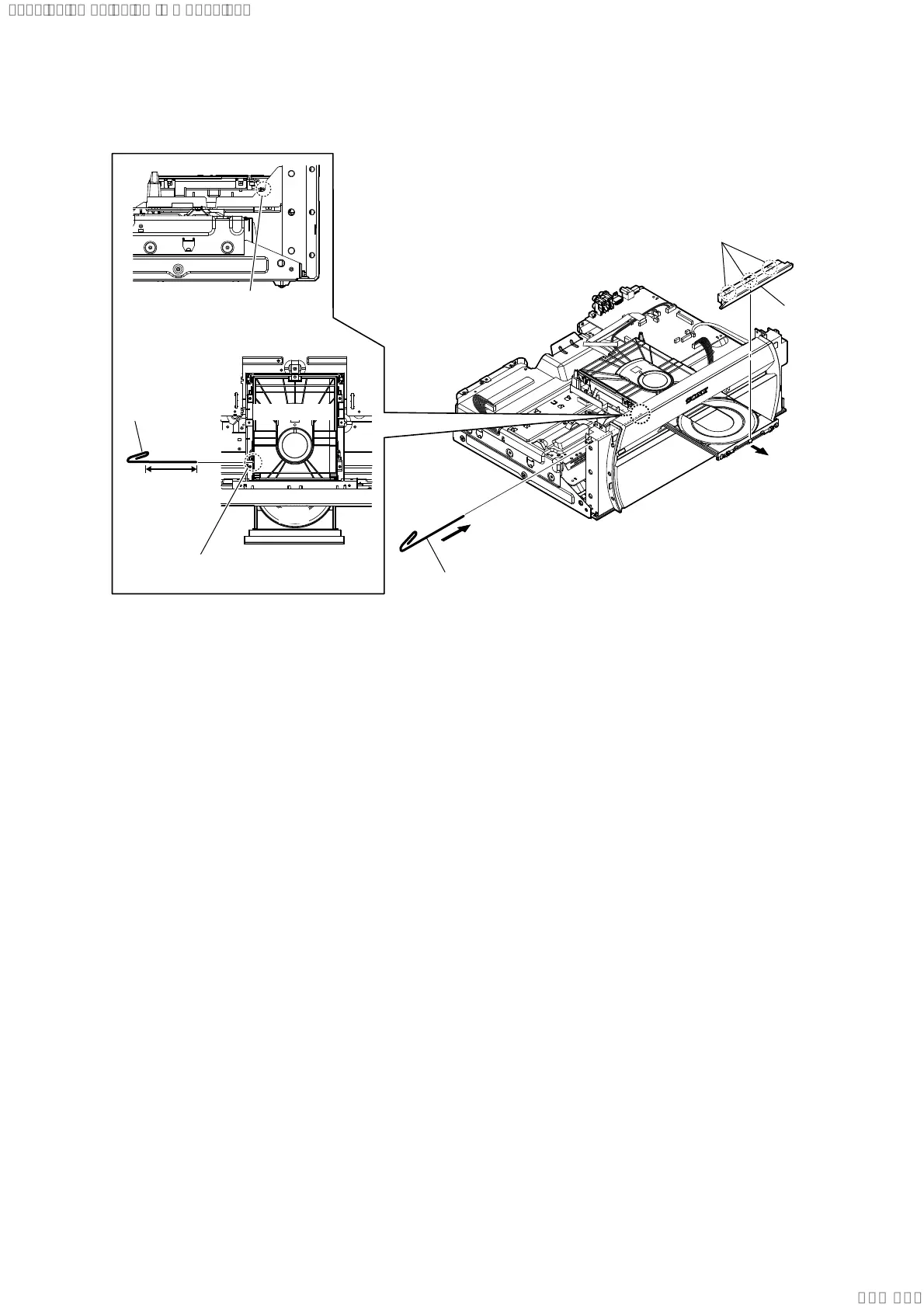

2-7. PANEL, LOADING ASSY
1 Insert the clip etc.
2
3 three claws
4 panel, loading
assy
CD/DVD drive
tray
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
CDM and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
