Sony HCD-SHAKE10 - Front Panel Section Exploded View

57
HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
#1
#1
#1
#1
#1
#1
#1
#1
ns
ns
ns
ns
ns
ns
201
202
206
203
204
204
205
205
IR board (ns)
#1
#1
(HCDSHAKEX70)
(SHAKE10/SHAKE30/
HCDSHAKEX10/HCDSHAKEX30)
M
N
N
M

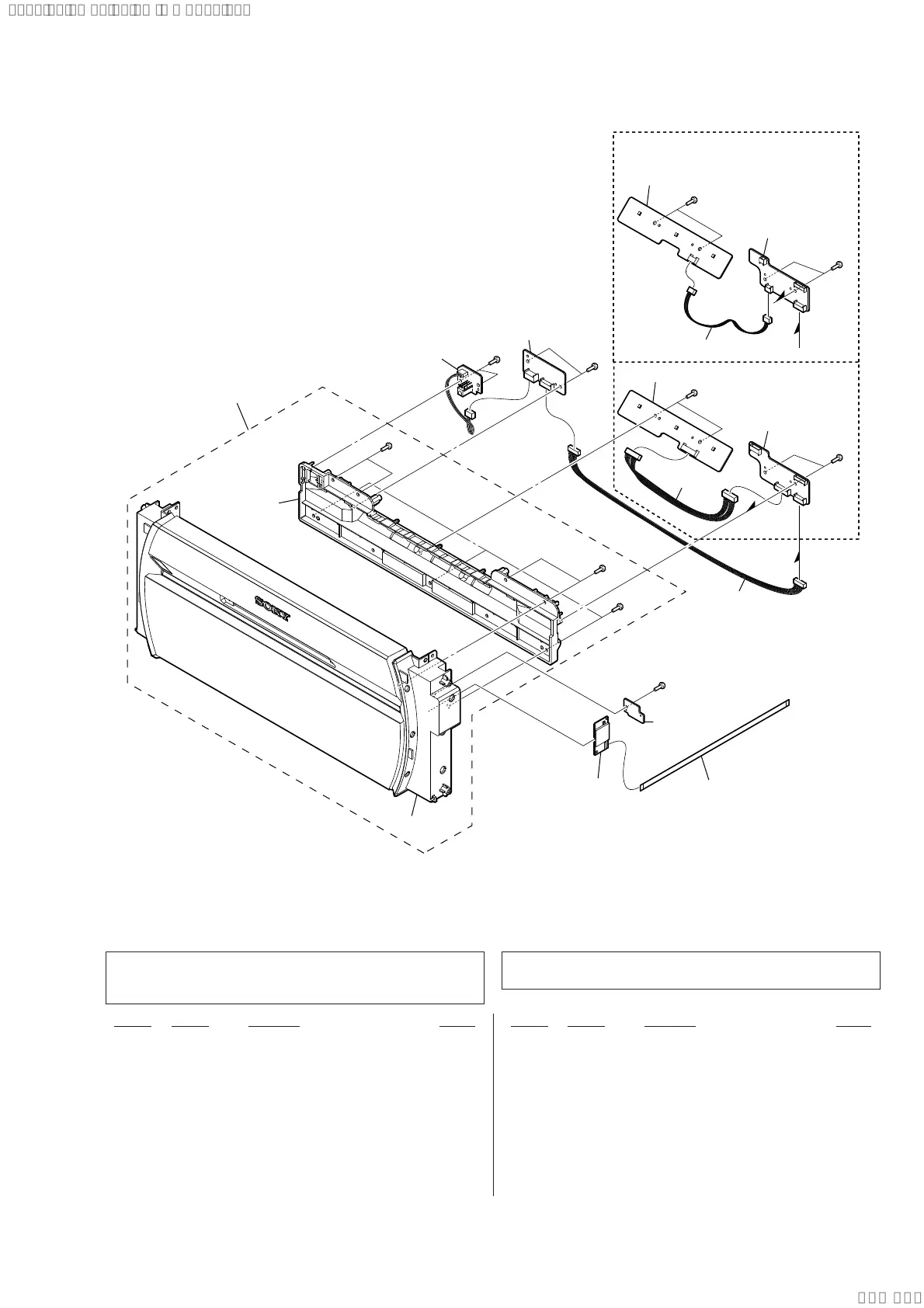

7-5. FRONT PANEL SECTION
201 1-912-099-21 FLEXIBLE FLAT CABLE (10 CORE)
202 1-492-699-32 BLUETOOTH MODULE
203 A-2170-673-A HI-RGB LEFT BOARD, COMPLETE
204 A-2183-157-A BAR CENTER BOARD, COMPLETE
(HCDSHAKEX70)
204 A-2183-158-A SKY BLUE BOARD, COMPLETE (SHAKE10/
SHAKE30/HCDSHAKEX10/HCDSHAKEX30)
205 A-2170-671-A HI-RGB RIGHT LED PC BO BOARD, COMPLETE
(SHAKE10/SHAKE30/
HCDSHAKEX10/HCDSHAKEX30)
205 A-2183-269-A HI-RGB RIGHT BOARD, COMPLETE
(HCDSHAKEX70)
206 X-2594-413-1 PANEL, FRONT ASSY (SHAUN) (HCDSHAKEX70)
206 X-2594-414-1 PANEL, FRONT ASSY (STEVE-LA9)
(HCDSHAKEX10/HCDSHAKEX30)
206 X-2594-415-1 PANEL, FRONT ASSY (STEVE-UC2)
(SHAKE10/SHAKE30)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 1: When the BLUETOOTH MODULE is replaced, refer to
“NOTE OF REPLACING MOTHERBOARD BOARD OR
BLUETOOTH MODULE OR RC-S730 (WW)” on page 7.
Note 2: If fl exible fl at cable is replaced, install it after bending it in
the same form as that before replacement.
Ver. 1.3
SYSSET
2019/10/2523:34:43(GMT+09:00)
