Sony HCD-SHAKE10 - Back Panel Section (Shake10;Shake30;Hcdshakex10;Hcdshakex30); Back Panel Section (HCDSHAKEX70)

HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
14
5
1 one screw
(+BVTP 3 u 8)
2 one screw (+B 3 u 6)
1 one screw
(+BVTP 3 u 8)
6 sheet,
service cover
3 four screws
(+BVTP 3 u 8)
4 five screws
(+BVTP 3 u 8)
(HCDSHAKEX10/
HCDSHAKEX30)
(HCDSHAKEX10/
HCDSHAKEX30)
7 back panel section

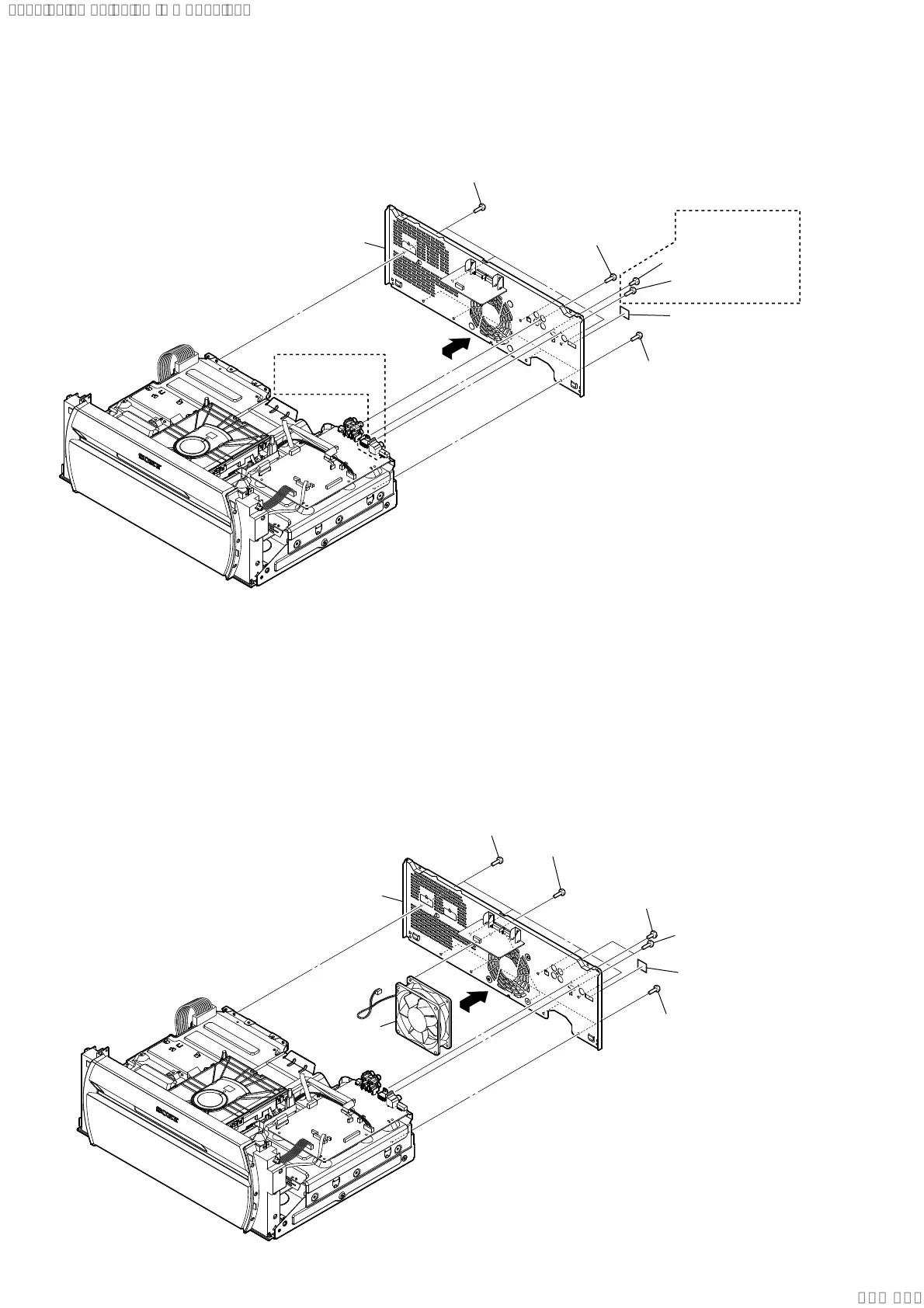

2-5. BACK PANEL SECTION (SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30)
2-6. BACK PANEL SECTION (HCDSHAKEX70)
5
1 two screws
(+BVTP 3 u 8)
2 one screw
(+B 3 u 6)
8 sheet,
service cover
9 back panel section
3 four screws
(+BVTP 3 u 8)
4 five screws
(+BVTP 3 u 8)
6 two screws
(+BVTP 3 u 8)
7 DC fan
Ver. 1.1
