Sony HCD-SHAKE10 - Motherboard Board Section Exploded View

56
HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
CD/DVD MECHANISM section
(CDM90-DVBU204//M)
ns
ns
152
153
151
#1
#1
#1
#1
#1
#1
chassis section
front panel section

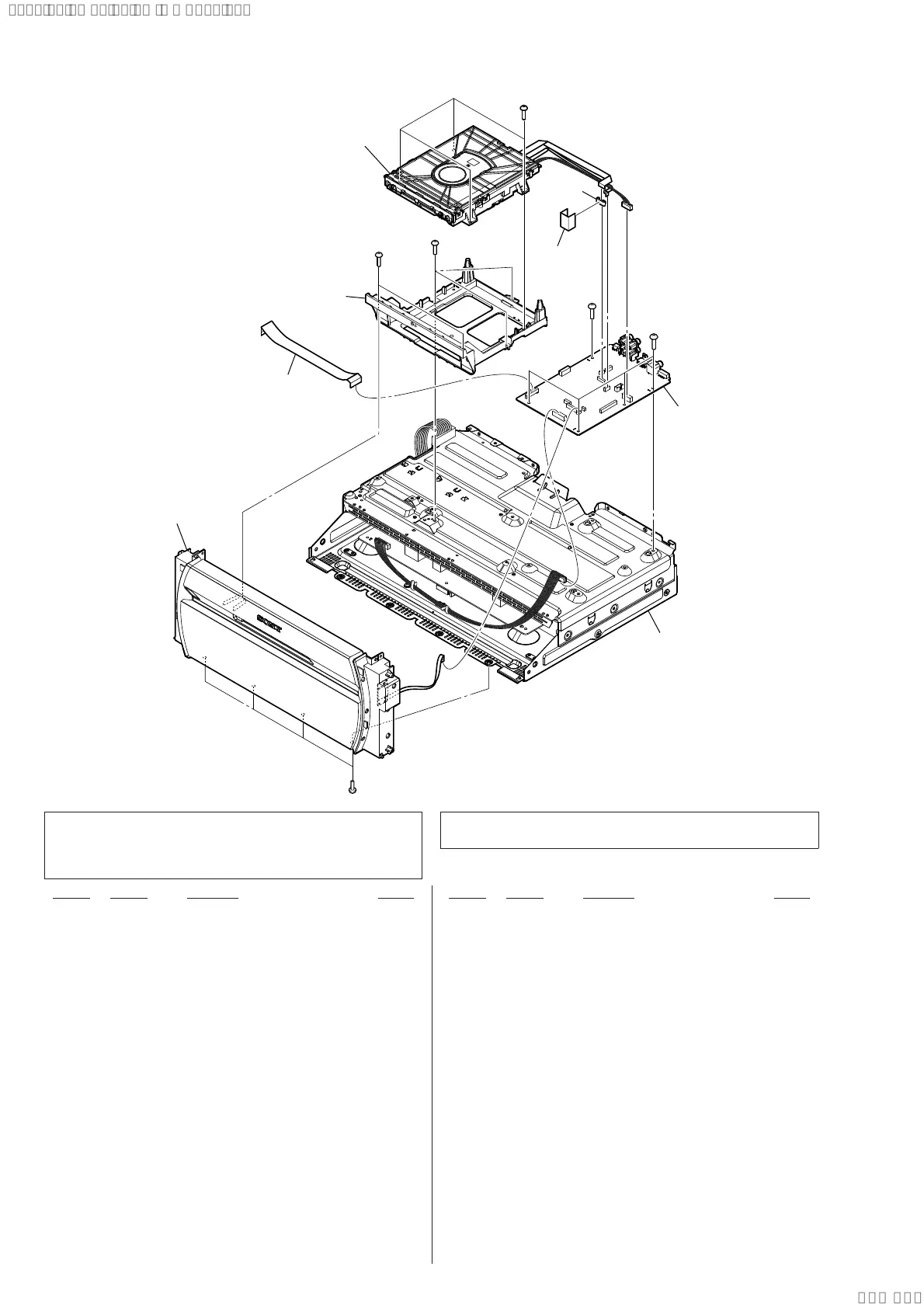

7-4. MOTHERBOARD BOARD SECTION
Note 1: When the complete MOTHERBOARD board is replaced,
refer to “NOTE OF REPLACING MOTHERBOARD
BOARD OR BLUETOOTH MODULE OR RC-S730 (WW)”
on page 7.
Note 2: If fl exible fl at cable is replaced, install it after bending it in
the same form as that before replacement.
151 1-469-829-11 CORE, FERRITE
152 1-912-091-21 FLEXIBLE FLAT CABLE (19 CORE)
(HCDSHAKEX70)
152 1-912-106-21 FLEXIBLE FLAT CABLE (19 CORE) (SHAKE10/
SHAKE30/HCDSHAKEX10/HCDSHAKEX30)
9 153 A-2184-395-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX10: AR, LA9)
9 153 A-2184-396-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX10: RU)
9 153 A-2184-397-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX10: AUS)
9 153 A-2184-398-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX10: MY)
9 153 A-2184-400-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX10: EA, E4)
9 153 A-2184-402-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKE10)
9 153 A-2184-404-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX30: AR, LA9)
9 153 A-2184-405-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX30: RU)
9 153 A-2184-406-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX30: AUS)
9 153 A-2184-407-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX30: MY, TH)
9 153 A-2184-408-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (E12)
9 153 A-2184-409-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX30: EA, E4)
9 153 A-2184-410-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX30: AEP, UK)
9 153 A-2184-411-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKE30)
9 153 A-2184-412-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX70: AR, LA9)
9 153 A-2184-415-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX70: MY, TH)
9 153 A-2184-417-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX70: EA, E4)
9 153 A-2184-418-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (HCDSHAKEX70: AEP)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.3
