Sony HCD-SHAKE10 - Component Removal: CD;DVD Mechanism and Front Panel

HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
16
9

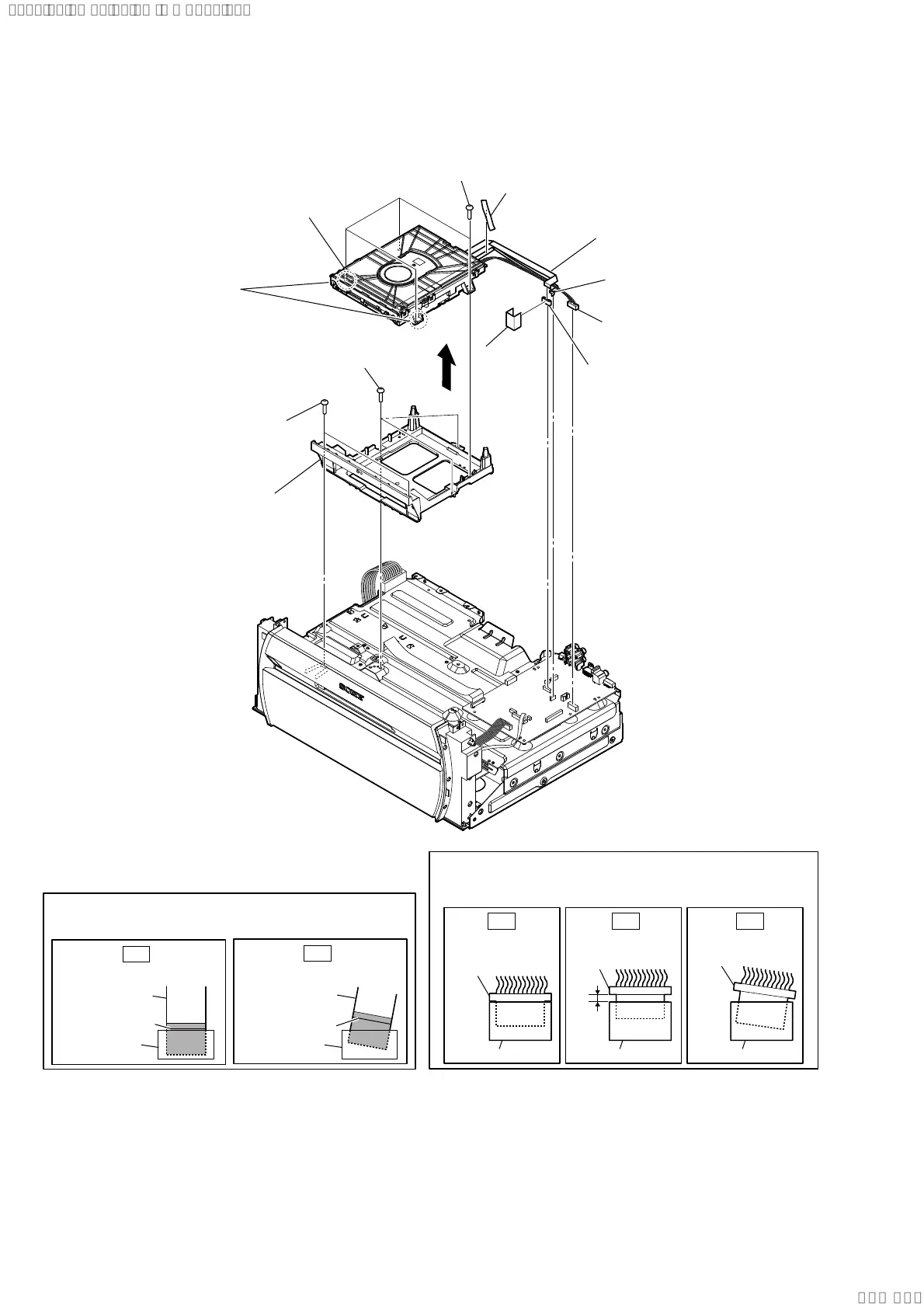

5 CN401 (6P)
6 flexible flat cable (5 core)
(CN303)
2 flexible flat cable (24 core)
(CN302)
7 four screws
(+BVTP 3 u 8)
1 filament tape
qa three screws
(+BVTP 3 u 8)
qs two screws
(+BVTP 3 u 8)
Note 1: When you install the CD/DVD
drive (CDM90-DVBU204//M),
please match the position of
the boss two places.
8 boss
0 CDM90-DVBU204//M
qd bracket, CDM
3 cushion,
saranet
(30 u 50)
4 core, ferrite
Note 3: When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 2: When installing the flexible flat cable, ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat cable flexible flat cable
connectorconnector
OK
NG
OK NG NG
2-8. CDM90-DVBU204//M
