Sony HCD-SHAKE10 - Regulator, Switching (Ssn-171 Ad) (Hcdshakex70)

HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
19

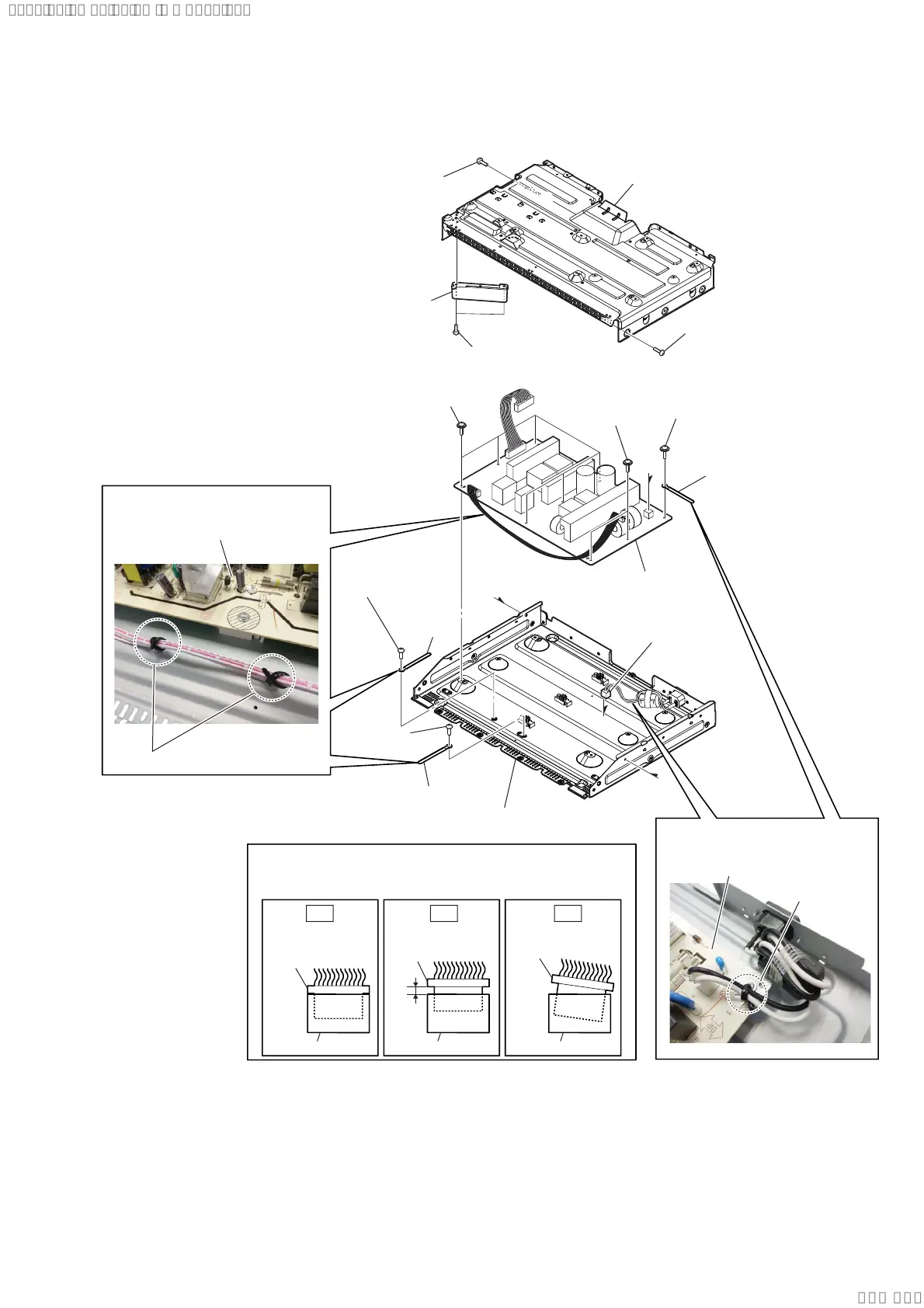

2-12. REGULATOR, SWITCHING (SSN-171AD) (HCDSHAKEX70)
Note : When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG
F
E
F
E
D
D
3 one screw
(+BVTP 3 u 8)
3 one screw
(+BVTP 3 u 8)
6 chassis, sub assy
4 two screws
(+BV3 (3-CR))
5 bracket, L
1 one screw
(+BV3 (3-CR))
2 clamp
(N)
7 six screws
(+PWH 3 u 8
(SUMITITE))
7 one screw
(+PWH 3 u 8
(SUMITITE))
7 two screws
(+PWH 3 u 8
(SUMITITE))
0 REGULATOR, SWITCHING
(SSN-171AD)
REGULATOR, SWITCHING
(SSN-171AD)
qa chassis assy (RYU)
8 clamp (N)
9 CN1 (2P)
REGULATOR, SWITCHING
(SSN-171AD)
clamp (N)
clamp (N)
:LUHVHWWLQJ
1 one screw
(+BV3 (3-CR))
2 clamp (N)
:LUHVHWWLQJ
Ver. 1.2
