105
HCD-SR4W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

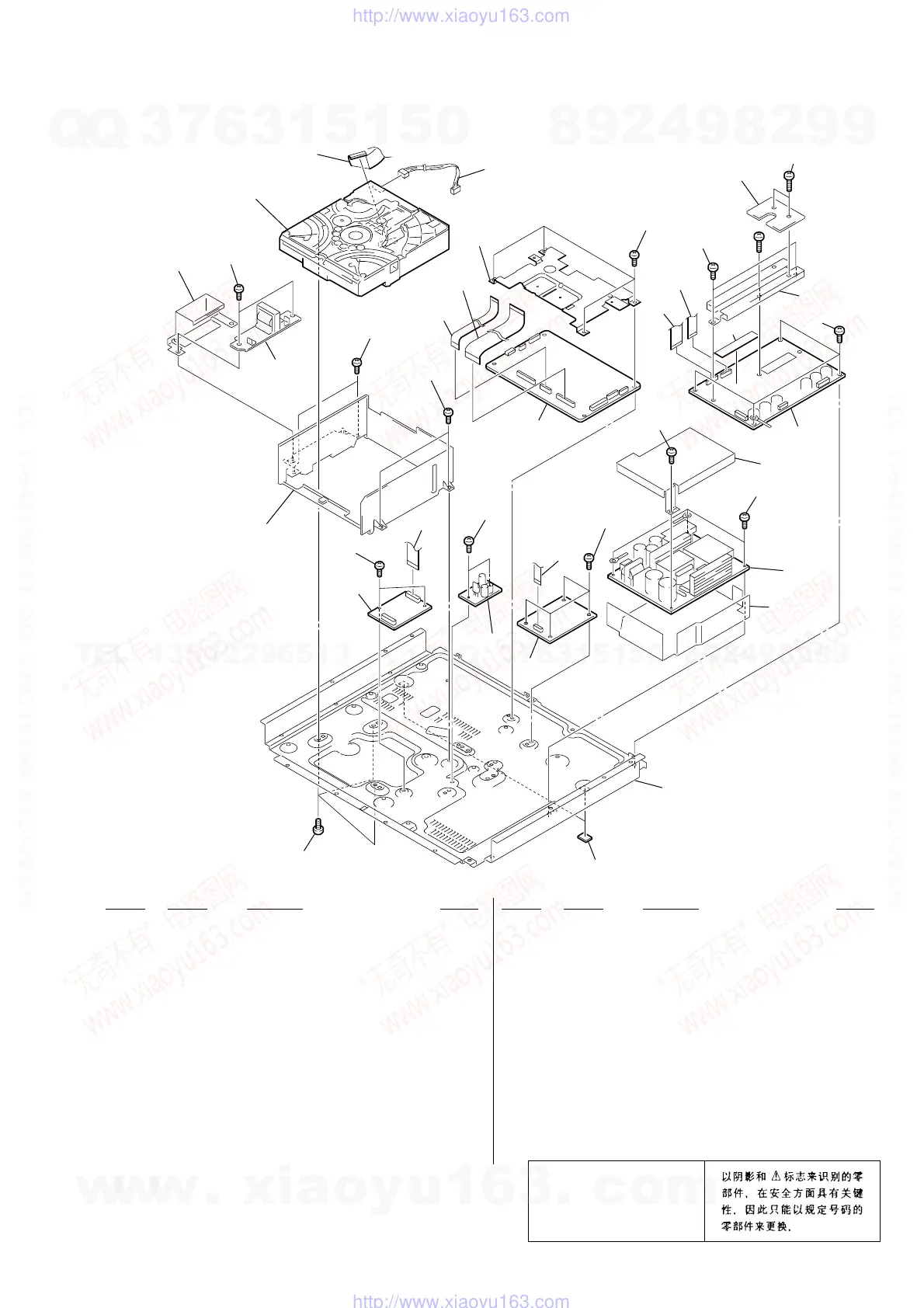

7-3. CHASSIS SECTION
101 A-4751-739-A DDCON BOARD, COMPLETE
102 3-077-331-21 +BV3 (3-CR)
103 A-1066-364-A DMB08 BOARD, COMPLETE (AEP, UK, KR, CH)
103 A-1066-641-A DMB08 BOARD, COMPLETE (AUS)
103 A-1067-278-A DMB08 BOARD, COMPLETE (EA)
103 A-1067-307-A DMB08 BOARD, COMPLETE (RU)
103 A-1067-492-A DMB08 BOARD, COMPLETE (HK, SP, TW)
103 A-1067-693-A DMB08 BOARD, COMPLETE (MX)
103 A-1067-774-A DMB08 BOARD, COMPLETE (E41)
104 A-1066-370-A AMP BOARD, COMPLETE
(AEP, UK, RU, EA, KR, AUS, CH, E41)
104 A-1067-535-A AMP BOARD, COMPLETE (MX, HK, SP)
104 A-1067-630-A AMP BOARD, COMPLETE (TW)
0105 1-468-838-11 REGULATOR, SWITCHING
106 4-232-478-31 FOOT
107 4-254-954-01 SHEET (DMB), RADIATION
108 1-828-339-11 WIRE (FLAT TYPE) (15 CORE)
109 1-828-409-11 WIRE (FLAT TYPE) (29 CORE)
110 1-829-280-11 FLEXIBLE FLAT CABLE (15 CORE)
111 1-828-411-11 WIRE (FLAT TYPE) (29 CORE)
112 1-829-743-11 CABLE, FLEXIBLE FLAT (9 CORE)
113 1-829-281-11 FLEXIBLE FLAT CABLE (17 CORE)
114 1-828-323-11 WIRE (FLAT TYPE) (11 CORE)
115 A-1056-504-A DIAT TRANSMIT BOARD, COMPLETE (CH)
115 A-1079-939-A DIAT TRANSMIT BOARD, COMPLETE
(EXCEPT CH)
#2 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
101
102
103
104
107
105
mechanism deck section-1
(CDM80A-DVBU24)
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
not
supplied
#2
not
supplied
not
supplied
not
supplied
not
supplied
106
102
102
111
108
110
109
102
102
102
102
113
112
102
102
102
102
102
102
115
114
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
