HCD-SR4W
HCD-SR4W

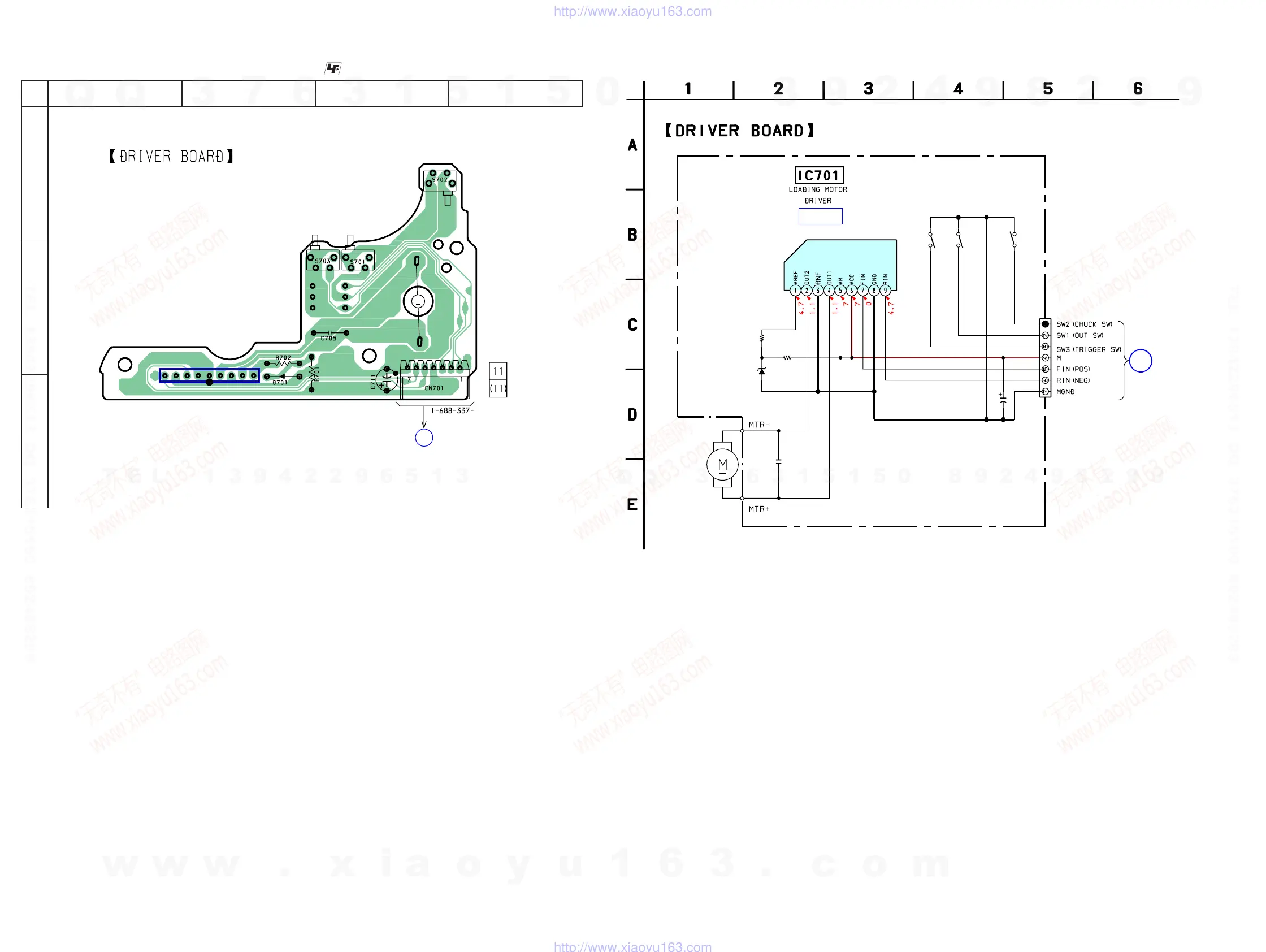

6-10. SCHEMATIC DIAGRAM — DRIVER BOARD —6-9. PRINTED WIRING BOARD — DRIVER BOARD —
• See page 28 for Circuit Boards Location.
:Uses unleaded solder.
IC701
G
DMB08 BOARD
CN007
(Page 39)
M701
(LOADING)
(TRIGGER) (DISC IN/OUT)
(CHUKING)
1
9
M
12
A
B
C
34
IC B/D
No mark : DVD STOP
+7V
G
DMB08 BOARD (10/10)
CN007
(Page 50)
IC701
CN701
R702
R701
C711
C705
D701
S703 S701 S702
M701
BA6956AN
7P
CT-L
100
680
10
50V
0.01
M
TZJ-T-77-4.7C
(TRIGGER) (DISC IN/OUT) (CHUKING)
(LOADING)
• See page 78 for IC Block Diagram.
