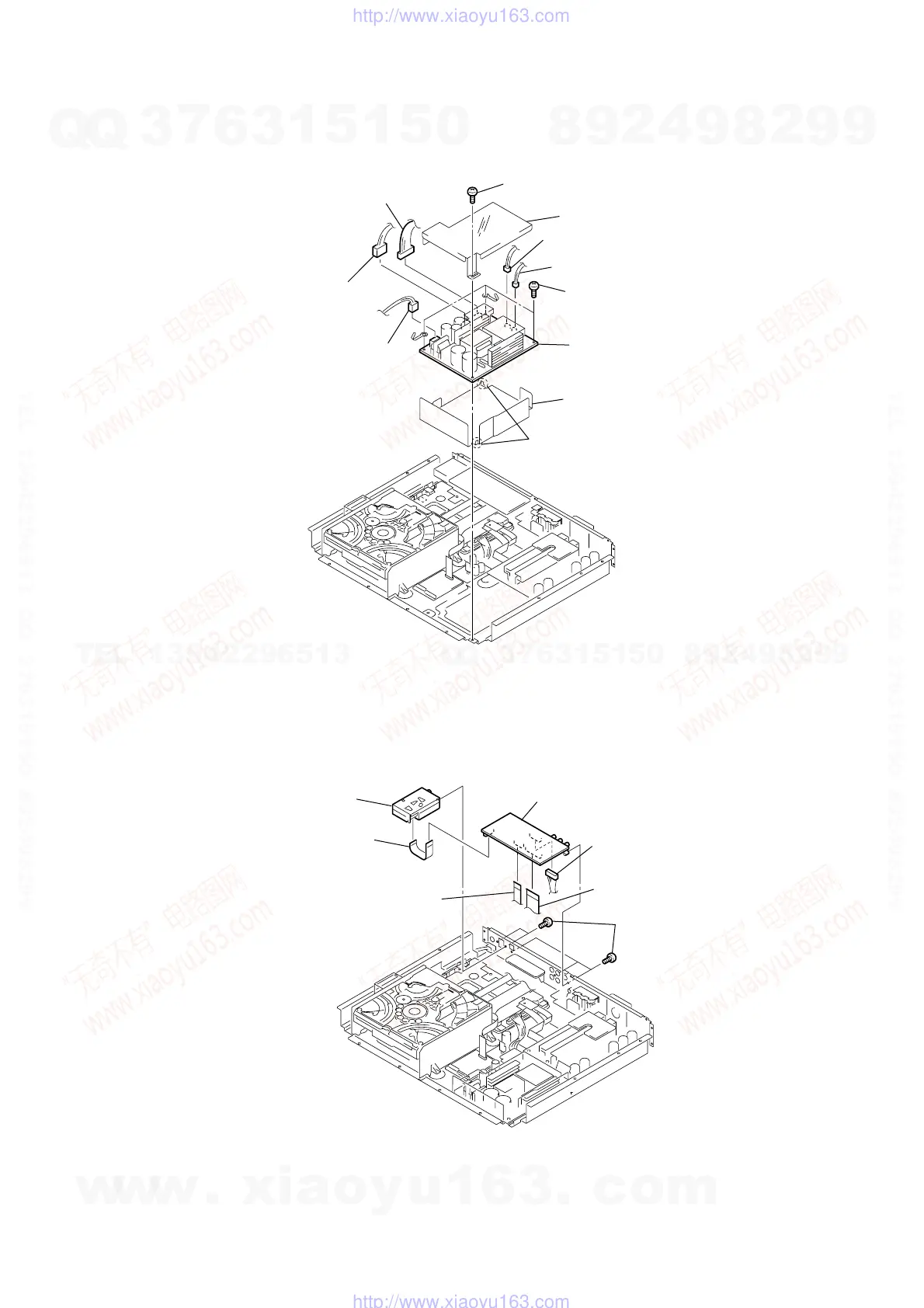

3-6. SWITCHING REGULATOR
1 screw
(+BV3)
3 three screws
(+BV3)
2 power sheet (top)
q; power sheet
qa switching regulator
5 connector (2p) (CN7)
4 connector (2p) (CN5)
6 connector
(12p) (CN8)
7 connector
(4p) (CN4)
8 connector
(2p) (CN3)
9 Remove the two solderings.
3-7. TUNER UNIT, IO BOARD
5 wire (flat type)
(29 core) (CN601)
7 IO board
4 wire (flat type)
(15 core) (CN201)
2 wire (flat type)
(11 core)
3 tuner unit
6 connector
(10p) (CN205)
1 five screws
(+BV3)
