Sony HCD-SR4W - RF Board; Optical Pick-Up (DBU-1)

15
HCD-SR4W

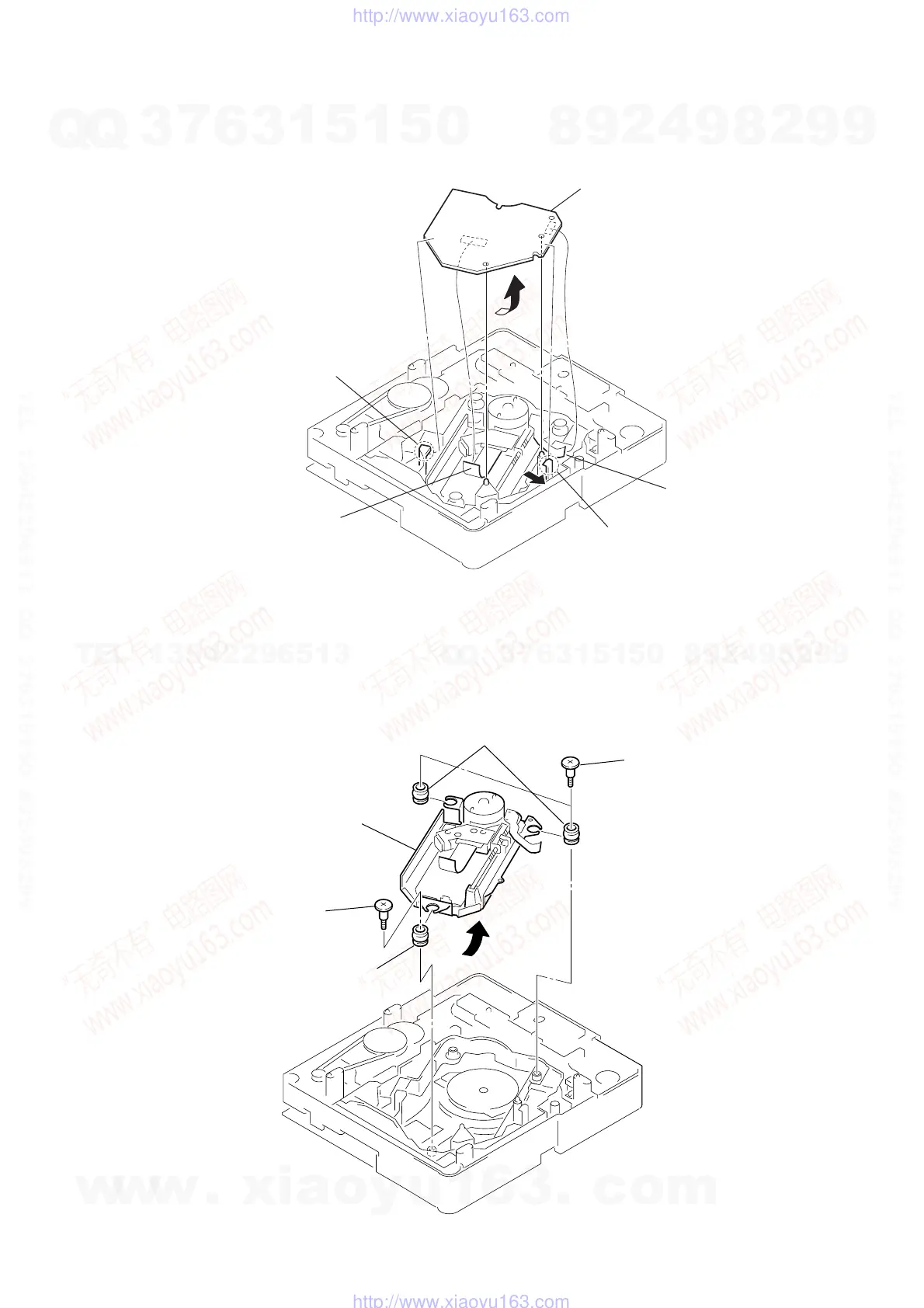

3-13. RF BOARD
5 RF board
3 wire (flat type)
(CN003)
4 wire (flat type)
(CN001)
1 claw
2 claw
3-14. OPTICAL PICK-UP (DBU-1)
1 two step screws (M
)
2 step screw (M)
3 two insulators
4 insulator
5 optical pick-up
(DBU-1)
