Sony HCD-SR4W - Printed Wiring Board - DMB08 Board (Side B); Ao y

4040
HCD-SR4W
HCD-SR4W

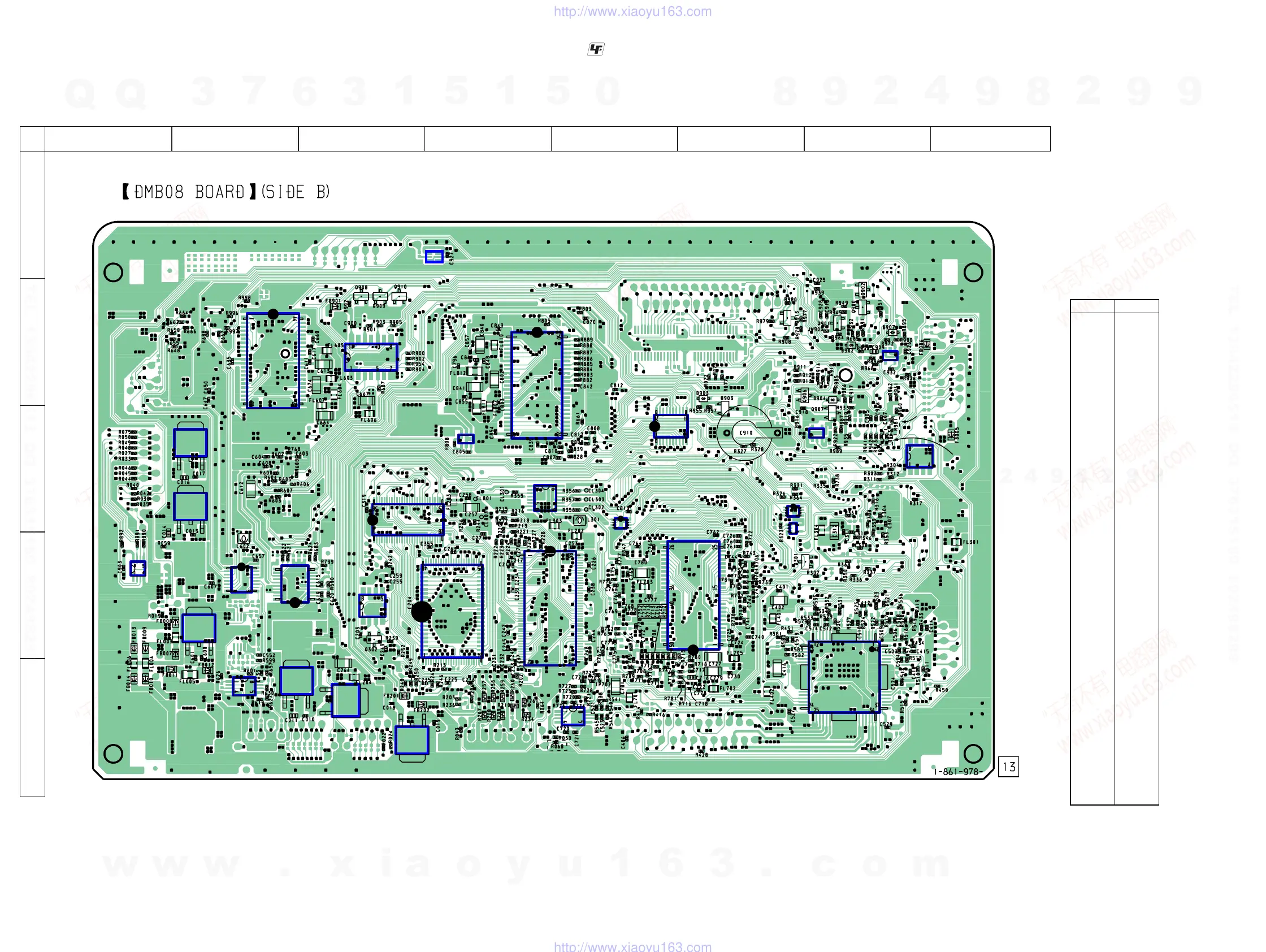

6-12. PRINTED WIRING BOARD — DMB08 BOARD (SIDE B) —
• See page 28 for Circuit Boards Location. :Uses unleaded solder.
IC604
IC005
IC004
IC608
IC904
IC601
IC002
IC006
IC703
IC205
IC203
IC215
IC202
IC814
IC501
IC803
IC802
IC903
IC907
IC302
IC812
IC303
IC704
IC808
IC706
IC001
IC603
IC609
IC900
IC7004
EXCEPT
AEP,UK,KR,CH
EXCEPT
HK,SP,TW
AEP,UK,RU
12
A
B
C
D
E
345678
• Semiconductor
Location
Ref. No. Location
D902 B-7
D903 B-6
D904 C-7
D907 B-7
IC001 E-3
IC002 D-2
IC004 C-2
IC005 C-2
IC006 E-4
IC202 D-4
IC203 D-3
IC205 D-4
IC215 C-3
IC302 C-7
IC303 C-4
IC501 E-7
IC601 D-2
IC603 E-2
IC604 C-2
IC608 D-2
IC609 D-2
IC703 E-5
IC704 C-4
IC706 D-5
IC802 C-7
IC803 C-6
IC808 B-4
IC812 C-5
IC814 C-5
IC900 B-3
IC903 C-6
IC904 D-1
IC907 B-7
IC7004 B-3
Q301 D-6
Q302 D-3
Q900 B-7
Q901 B-7
Q902 B-7
Q903 B-6
Q906 B-6
Q907 C-7
Q908 B-3
Q909 B-3
Q910 B-3
Q913 B-7
