103
HCD-SR4W
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
CH : Chinese model
E41 : 230 V AC area in E model
HK : Hong Kong model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
Ref. No. Part No. Description Remark

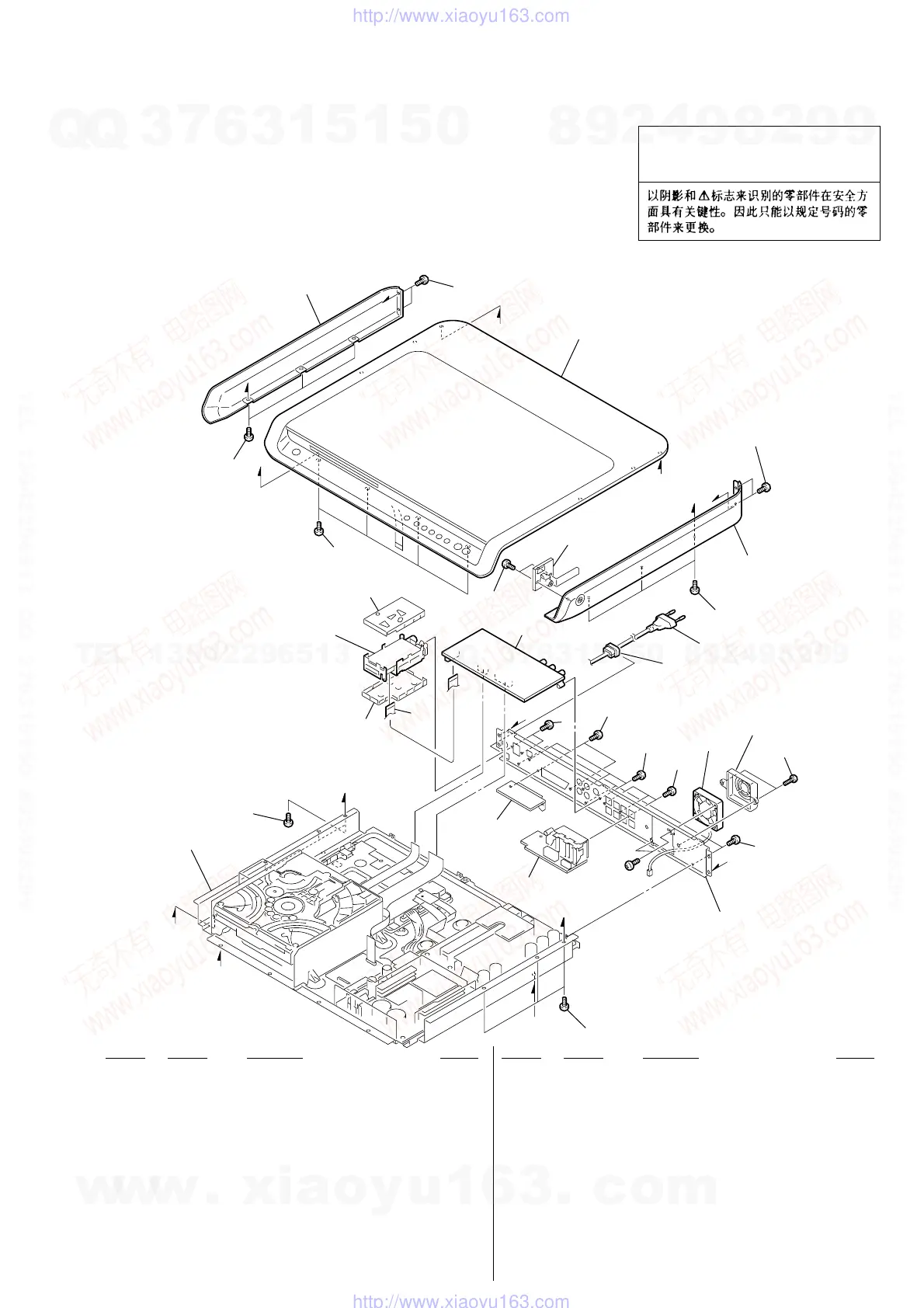

7-1. CASE SECTION
Ref. No. Part No. Description Remark
1 4-253-877-01 PANEL (L), SIDE
2 4-253-878-01 PANEL (R), SIDE
3 3-077-331-01 +BV3 (3-CR)
4 A-4750-570-A TUNER UNIT
(AEP, UK, RU, EA, TW, KR, AUS, CH)
4 A-4750-571-A TUNER UNIT (MX, HK, SP, E41)
5 1-828-962-11 WIRE (FLAT TYPE) (11 CORE)
6 A-1066-374-A IO BOARD, COMPLETE (AEP, UK, RU)
6 A-1066-644-A IO BOARD, COMPLETE (EA, KR, AUS, CH)
6 A-1067-499-A IO BOARD, COMPLETE (HK, SP)
6 A-1067-633-A IO BOARD, COMPLETE (TW)
6 A-1067-696-A IO BOARD, COMPLETE (MX)
6 A-1067-777-A IO BOARD, COMPLETE (E41)
7 4-217-350-11 STOPPER, CORD
08 1-696-169-51 CORD, POWER (AEP, UK, RU, HK, SP, E41)
08 1-696-847-22 CORD, POWER (AUS)
08 1-751-520-21 CORD, POWER (EA)
08 1-769-079-32 CORD, POWER (KR)
08 1-775-789-91 CORD, POWER (MX)
08 1-782-464-22 CORD, POWER (CH)
08 1-827-597-41 CORD, POWER (TW)
9 1-763-861-12 FAN, DC
#1 7-685-881-09 SCREW +BVTT 4X8 (S)
front panel section
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
#1
a
a
b
f
e
h
e
h
b
f
c
c
g
g
chassis section
1
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
6
5
7
8
9
4
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
TW : Taiwan model
