Sony HCD-SR4W - Printed Wiring Board - IO Section

5757
HCD-SR4W
HCD-SR4W

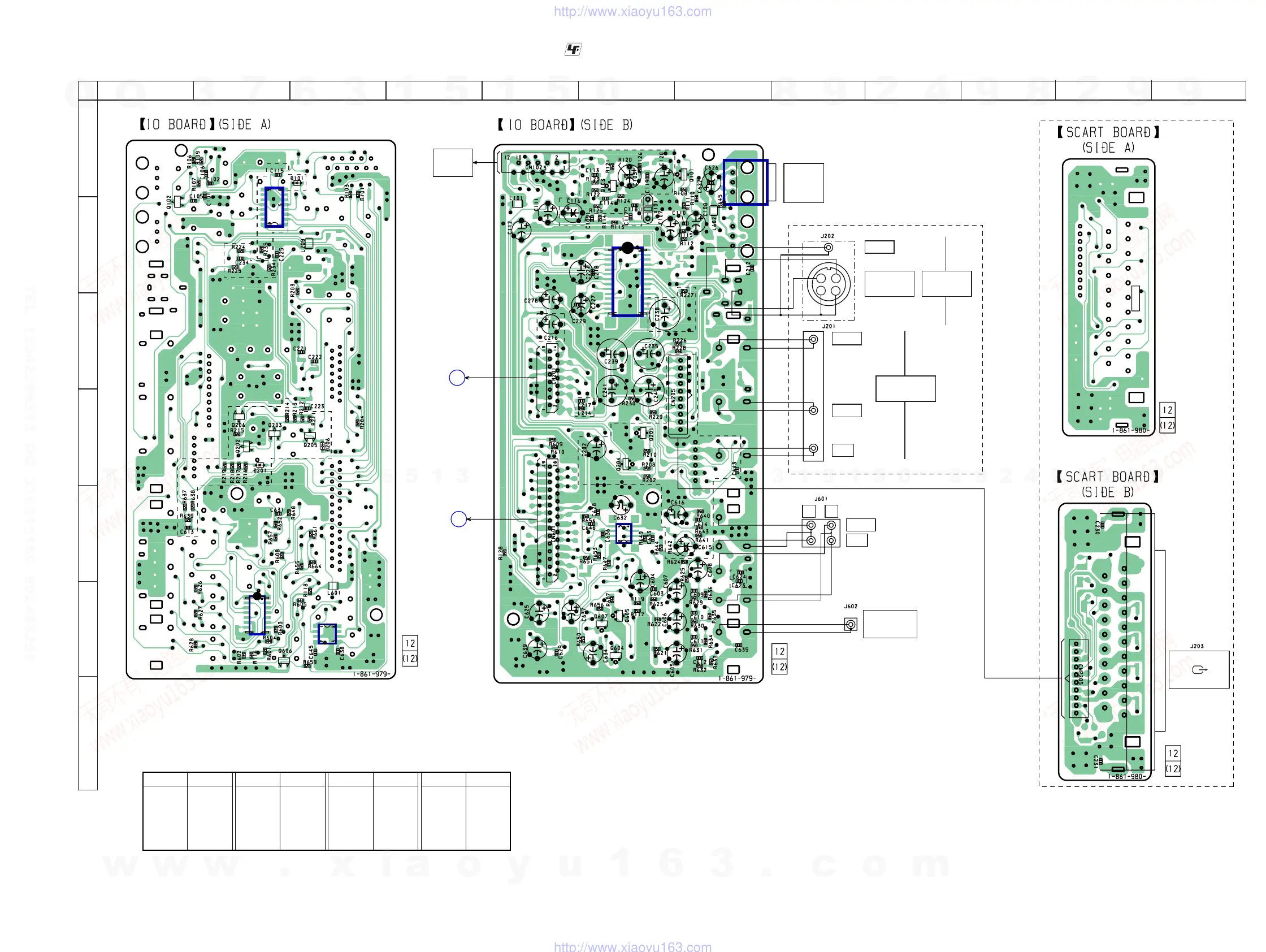

6-29. PRINTED WIRING BOARD — IO SECTION —
• See page 28 for Circuit Boards Location. :Uses unleaded solder.
TUNER
UNIT
DMB08
BOARD
CN003
(Page 39)
F
DMB08
BOARD
CN002
(Page 39)
E
IC603
IC602
IC605
AEP,UK,RU
EXCEPT
AEP,UK,RU
EXCEPT
AEP,UK,RU
AEP,UK,RU
EXCEPT
AEP,UK,RU
EXCEPT
AEP,UK,RU
AEP,UK,RU
EXCEPT
AEP,UK,RU
AEP,UK,RU
3
1
2
4
OPTICAL
DIGITAL
IN
SURROUND
BACK
EURO AV
OUTPUT (TO TV)
VIDEO
SAT
P B /C B
P R /C R
Y
VIDEO
S VIDEO
(DVD ONLY)
MONITOR
OUT
COMPONENT
VIDEO OUT
L R
IC201
IC606
AEP,UK,RU
EXCEPT
AEP,UK,RU
AEP,UK,RU
IC101
12
A
B
C
D
E
F
34567
8 910
11 12
E
• Semiconductor Location
Ref. No. Location
D101 A-3
D201 D-2
D206 D-3
IC101 B-2
IC201 B-6
Ref. No. Location
IC602 F-2
IC603 A-7
IC605 F-3
IC606 E-6
Q101 A-7
Ref. No. Location
Q102 B-1
Q103 B-6
Q201 D-6
Q202 D-2
Q203 D-2
Q204 D-6
Ref. No. Location
Q205 D-3
Q206 D-2
Q604 F-6
Q605 F-6
Q606 F-3
Q607 F-6
