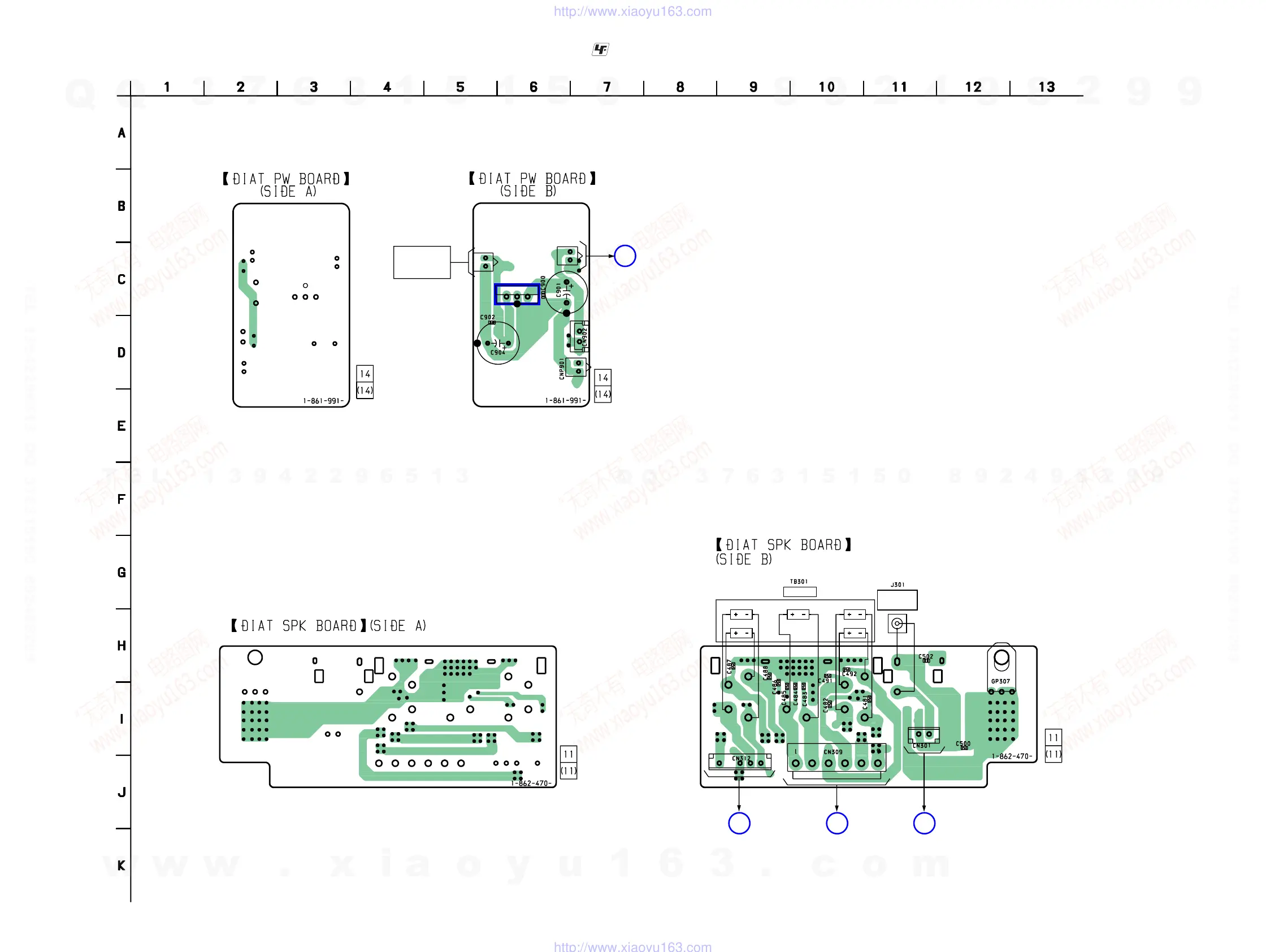

6-36. PRINTED WIRING BOARD — SPEAKER OUT SECTION —
• See page 28 for Circuit Boards Location. :Uses unleaded solder.
IC900
CNP812
CNP811
WIRELESS
SPEAKER
WOOFER
FRONT LCENTER
WOOFER
FRONT R
SPEAKER
SWITCHING
REGULATOR
X
DIAT TRANSMIT BOARD
CN802
(Page 62)
K
AMP BOARD
CN306
(Page 52)
I
AMP BOARD
CN313
(Page 52)
Z
DIAT TRANSMIT
BOARD
CN803
(Page 62)
