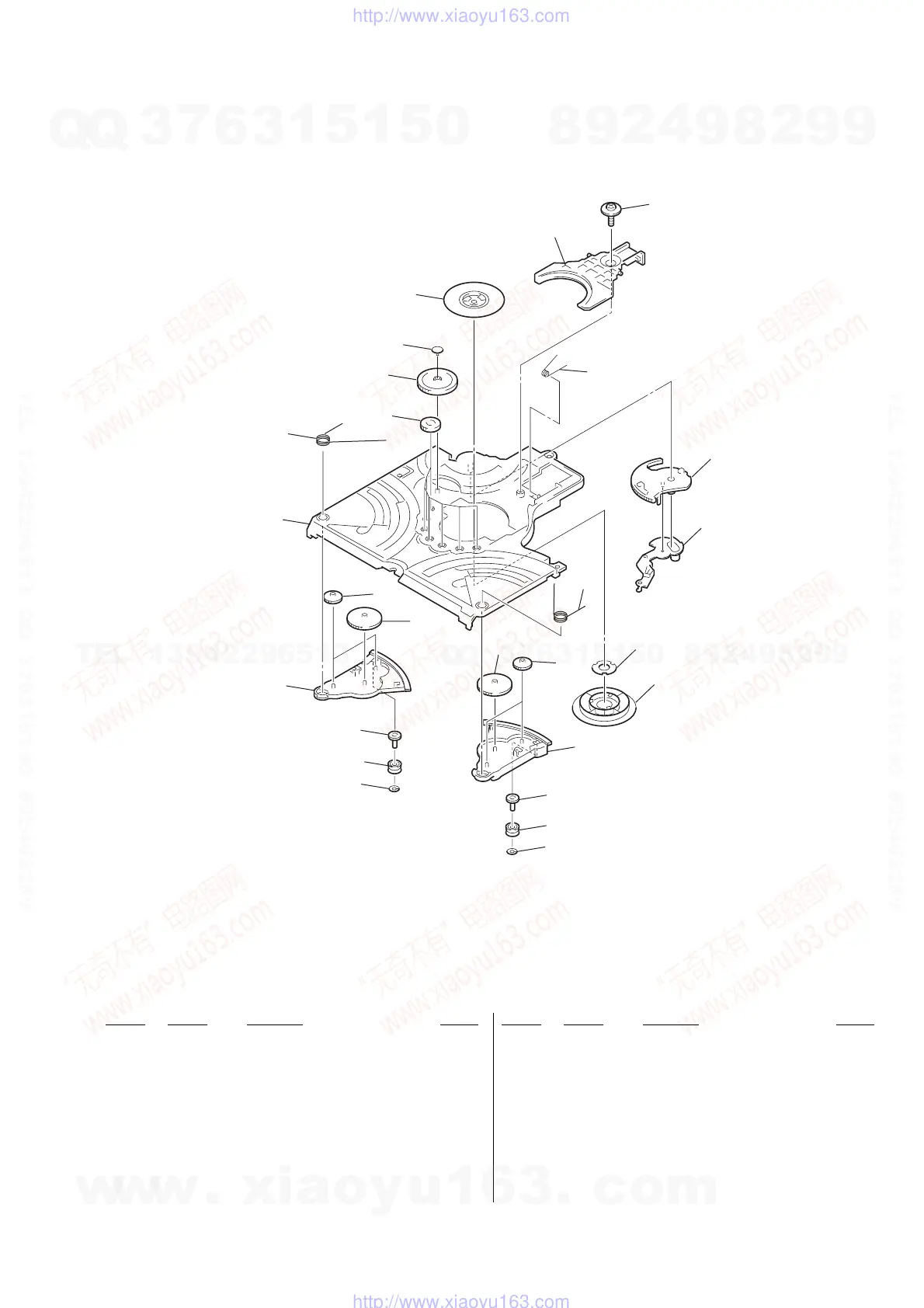

7-5. MECHANISM DECK SECTION-2
(CDM80A-DVBU24)
451
451
452
452
453
454
457
458
459
460
461
462
453
470
464
467
469
466
463
455
465
455
456
456
468
not supplied
451 4-245-627-01 WASHER (6-2.7-0.4)
452 4-245-637-01 ROLLER, RUBBER
453 4-245-649-01 GEAR (IDL-I)
454 4-245-657-01 LEVER (LOADING-R)
455 4-245-647-01 GEAR (IDL-G)
456 4-245-648-01 GEAR (IDL-H)
457 4-245-655-01 CHASSIS (TOP)
458 4-245-631-01 SPT-T (LOADING-R)
459 4-245-650-01 GEAR (IDL-J)
460 4-245-651-01 GEAR (IDL-L)
461 4-245-640-01 GEAR (CAP)
462 4-245-626-01 CAP, CLAMPER DBU-1
463 4-245-638-01 LEVER (CL UP1)
464 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
465 4-245-636-01 SPR-T CL DOWN
466 4-245-658-01 LEVER (DISC STOP)
467 4-245-659-01 LEVER (DISC SENSOR)
468 4-245-632-01 SPR-T (LOADING-L)
469 4-245-625-01 CLAMPER DBU-1
470 4-245-656-01 LEVER (LOADING-L)
