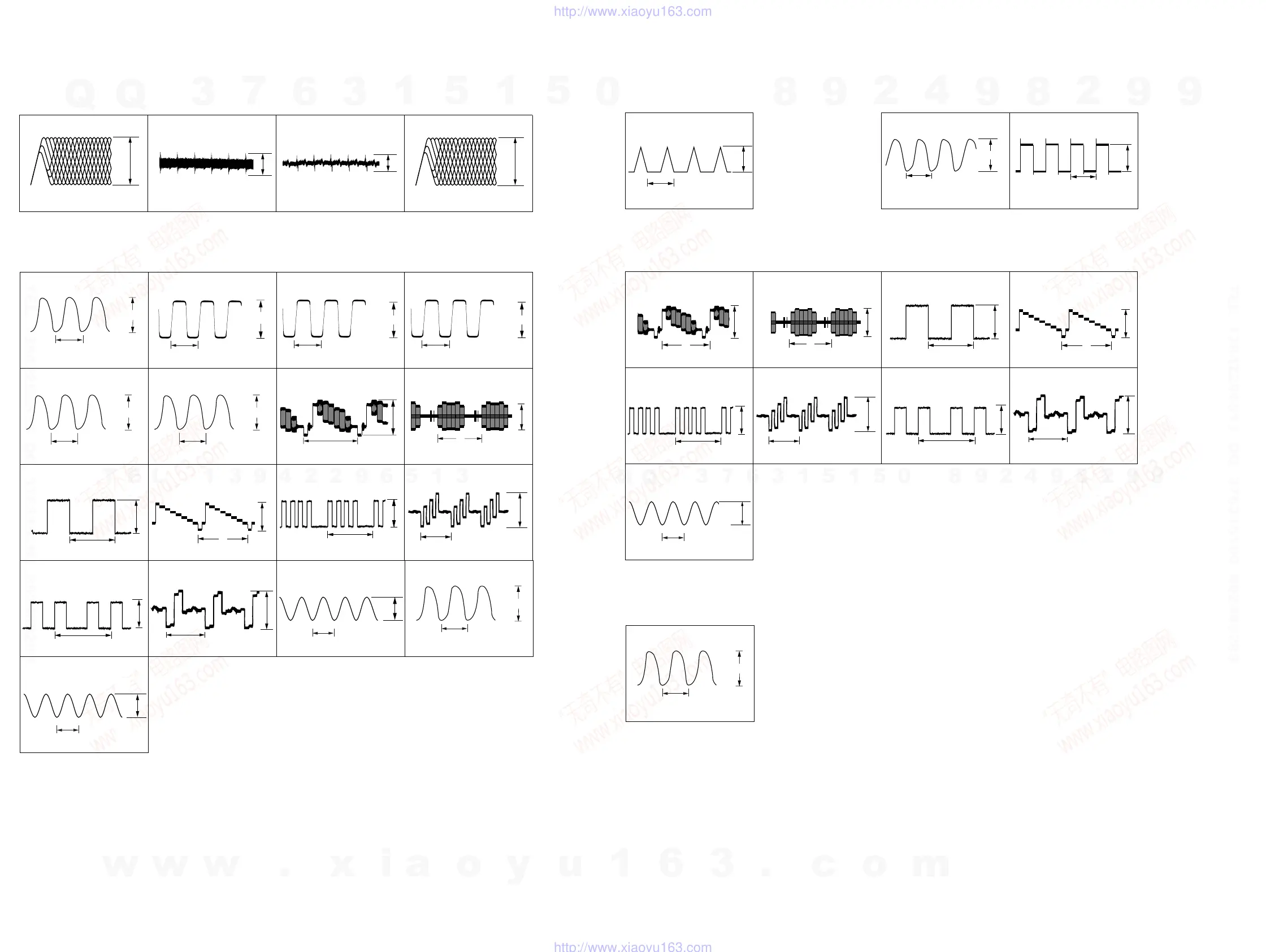

• Waveforms
– RF Board –
1 IC001 1 (DVDRFP) 4 IC001 tj (RFAC) 3 IC001 r; (FE)
100 mV/DIV, 1 ms/DIV200 mV/DIV, 100 ns/DIV 500 mV/DIV, 100 ns/DIV
800 mVp-p
0.3 Vp-p
1.3 Vp-p
2 IC001 el (TE)
500 mV/DIV, 1 ms/DIV
0.5 Vp-p
– DDCOM Board –
10.5 µs
23.2 Vp-p
10 V/DIV, 4 µs/DIV
ql Q802 collector
– AMP Board –
4.7 Vp-p
3.9 Vp-p
2.6 µs
20.3 ns
w; IC305 4 wa IC108,110 qa (OUTL1)
1 V/DIV, 10 ns/DIV
1 V/DIV, 1
µ s/DIV
5 IC303 8 (XTO)
qa to qg : color bars video signal
6 IC303 9 (SO1)
9 IC303 3 (MO1)
7 IC303 q; (SO2)
29.5 ns
37 ns
37 ns
29.5 ns
1 V/DIV, 10 ns/DIV
1 V/DIV, 10 ns/DIV
1 V/DIV, 10 ns/DIV 1 V/DIV, 10 ns/DIV
4.0 Vp-p
4.1 Vp-p
4.8 Vp-p
8 IC303 qd (SO3)
29.5 ns
1 V/DIV, 10 ns/DIV
4.1 Vp-p
4.5 Vp-p
q; IC301 r; (XTAL)
50 ns
1 V/DIV, 20 ns/DIV
4.1 Vp-p
qa IC206 <zcz (VDAC_0)
500 mV/DIV, 20 µs/DIV
qs IC206 <zx, (VDAC_1)
500 mV/DIV, 20 µs/DIV
1.1 Vp-p
qj IC901 ek (X2)
50 ns
1 V/DIV, 20 ns/DIV
2.7 Vp-p
qd IC206 <zxb (VDAC_2)
500 mV/DIV, 20 µs/DIV
1.1 Vp-p
qk IC607 qs (MCLK2)
74.1 ns
3.7 Vp-p
1 V/DIV, 40 ns/DIV
qf IC206 <zxx (VDAC_3)
800 mVp-p
H
200 mV/DIV, 20 µs/DIV
qg IC206 <zz. (VDAC_4)
200 mV/DIV, 20 µs/DIV
H
800 mVp-p
qh IC606 wa (XOUT)
81.4 ns
4.5 Vp-p
1 V/DIV, 40 ns/DIV
(EXCEPT AEP,UK,RU)
qd IC206 <zxb (VDAC_2)
(AEP,UK,RU)
(EXCEPT AEP,UK,RU)
qf IC206 <zxx (VDAC_3)
(AEP,UK,RU)
(EXCEPT AEP,UK,RU)
qg IC206 <zz. (VDAC_4)
(AEP,UK,RU)
500m V/DIV, 20 µs/DIV
H
930 mVp-p
500 mV/DIV, 20 µs/DIV
910 mVp-p
1.4 Vp-p
H
500 mV/DIV, 20 µs/DIV
920 mVp-p
H
H
H
H
– DMB08 Board –
ws IC201 wd (CVBS OUT) wd IC201 wh (COUT)
1 V/DIV, 20 µs/DIV 1 V/DIV, 20 µs/DIV
wf IC201 w; (CYOUT)
1 V/DIV, 20 µs/DIV
2.2 Vp-p
H
wg IC201 qk (CbOUT)
1.6 Vp-p
H
500 mV/DIV, 20 µs/DIV
H
2.7 Vp-p
H
2.0 Vp-p
ws to wj : color bars video signal
(EXCEPT AEP,UK,RU)
wf IC201 w; (CYOUT)
(AEP,UK,RU)
(EXCEPT AEP,UK,RU)
wg IC201 qk (CbOUT)
(AEP,UK,RU)
wh IC201 qh (CrOUT)
500 mV/DIV, 20 µs/DIV
H
1.6 Vp-p
(EXCEPT AEP,UK,RU)
wh IC201 qh (CrOUT)
(AEP,UK,RU)
wj IC101 qf (XO)
(AEP,UK,RU)
500 mV/DIV, 20 µs/DIV
H
1.7 Vp-p
500 mV/DIV, 20 µs/DIV
1.7 Vp-p
H
500 mV/DIV, 20 µs/DIV
1.7 Vp-p
H
231 ns
3.5 Vp-p
1 V/DIV, 100 ns/DIV
– IO Board –
– DIAT TRANSMIT Board –
wk IC804 tl (OSCO)
40.7 ns
1 V/DIV, 20 ns/DIV
2.8 Vp-p
