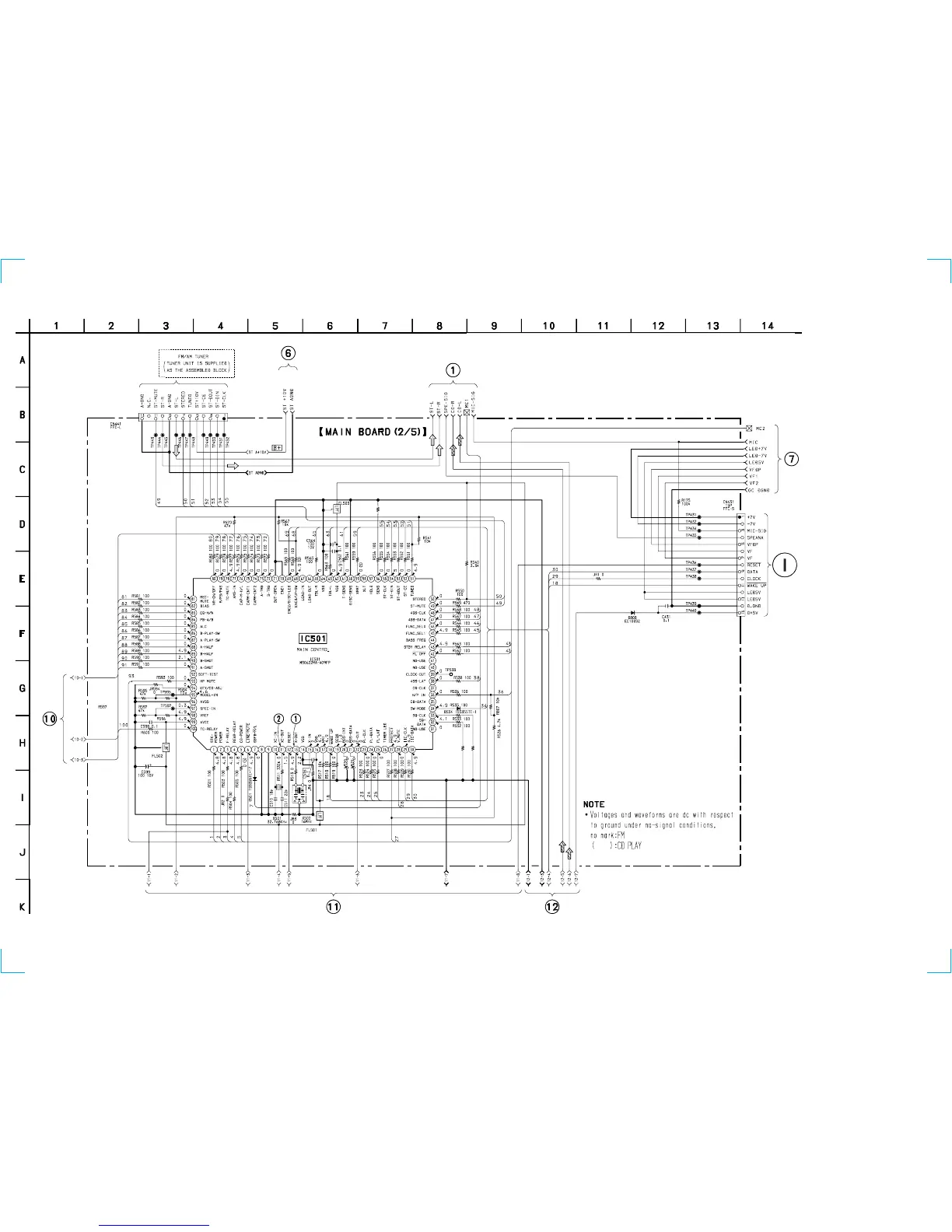

6-11. SCHEMATIC DIAGRAM MAIN (2/5) SECTION
• Refer to page 27 for Waveforms. • Refer to page 34 for Printed Wiring Board. • Refer to page 61 for IC Pin Functions.
(Page 38)
(Page 39)
(Page 35)
(Page 39)
(Page 45)
(Page 37)
(Page 37)
13P
16
JR556
0
JR533 0 JR532 0
JR519 0
47k
(EA)
6.8k(MY,SP,
TH,IA)
