7

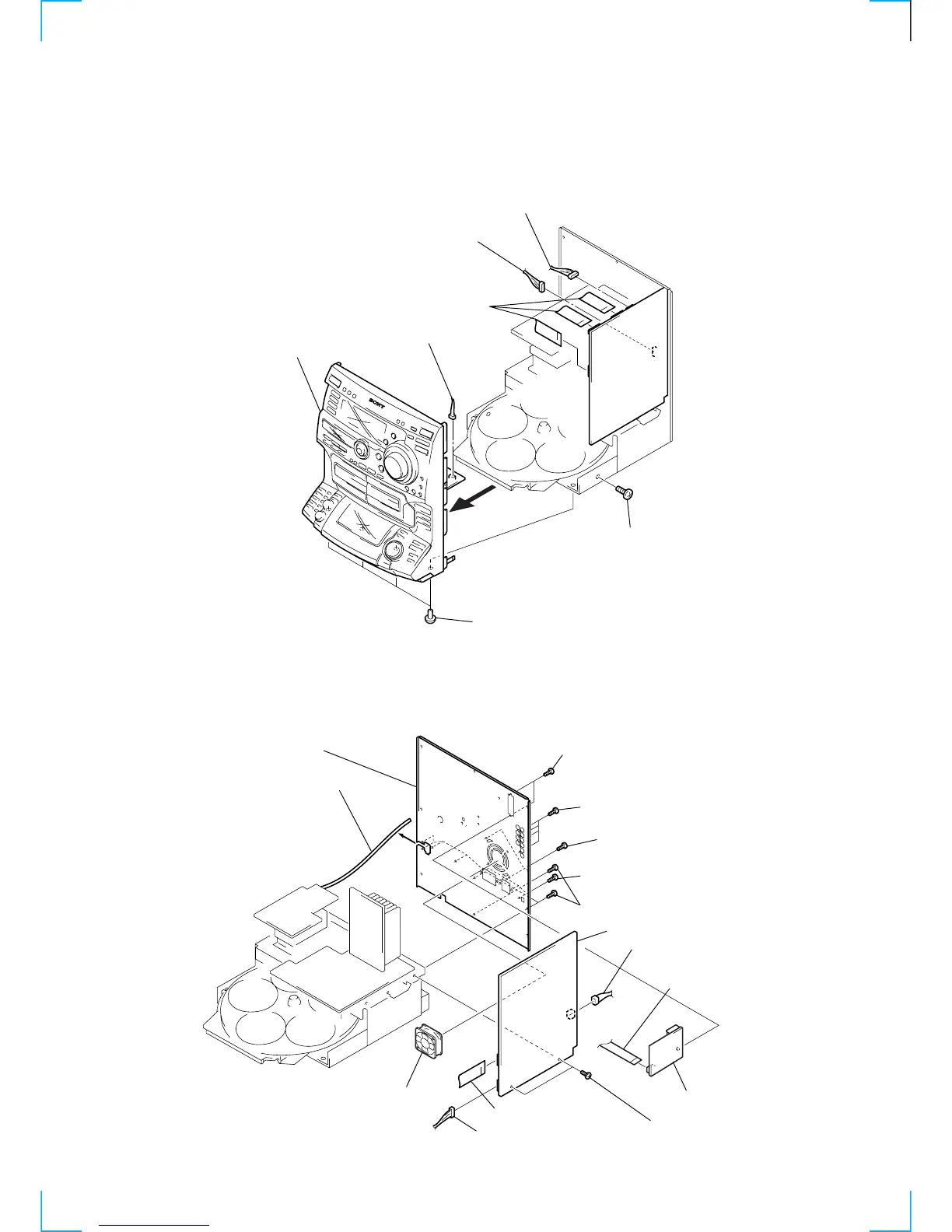

SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
2-1. FRONT PANEL
2-2. MAIN BOARD
1
Three flat type wires
(CN303,CN304,CN431)
2
Connector (CN702)
3
Connector (CN452)
4
Connector (CN802)
7
Front panel
5
Screw (BVTP 3x8
)
6
Four screw (BVTP 3x8)
4
Connector (CN412)
5
Flat type wire (CN411)
1
Flat type wire (CN1
)
3
Tuner unit
2
Two screws (BVTP 3x8)
7
Seven screws (BVTP 3x8)
Fan motor
!™
Power cord
Back panel
8
Five screws (BVTP 3x8)
6
Connector (CN903)
Main board
Two screws (BVTP 3x8
)
0
Two screws (BVTP 3x8)
9
Four screws (BVTP 3x8)
