Sony HCD-VR90AV - FL Section; Printed Wiring Board FL Section

HCD-VR90AV
4747
(Page 34)
(Page 51)
(Page 51)
(Page 49)
(Page 51)
C612 C611
23
1/u
16
R696 R698

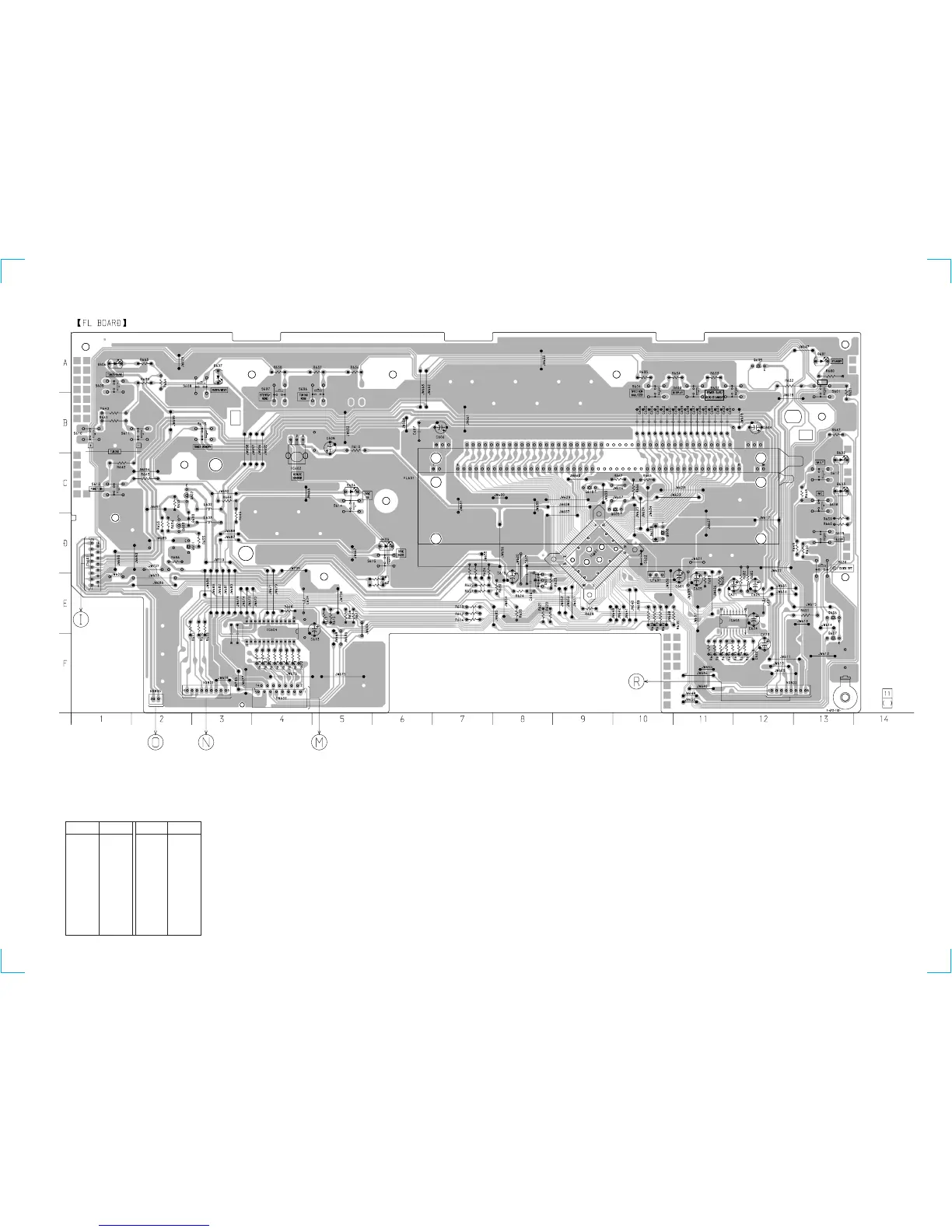

6-23. PRINTED WIRING BOARD FL SECTION
• Refer to page 19 for Circuit Boards Location.
• Semiconductor Location
D601 A-13
D602 C-13
D603 C-13
D604 C-5
D605 D-6
D606 A-1
D607 A-3
D608 D-2
IC601 D-9
IC602 C-4
IC603 E-12
Ref. No. Location
IC604 E-4
Q601 D-2
Q602 C-2
Q603 D-2
Q605 A-12
Q606 E-13
Q607 F-13
Q608 D-10
Q609 C-10
Q610 C-9
Ref. No. Location
