Sony HCD-VR90AV - 2-5. TAPE MECHANISM DECK AND CASSETTE LID; 2-6. CD MECHANISM DECK; 2-7. BASE UNIT

9

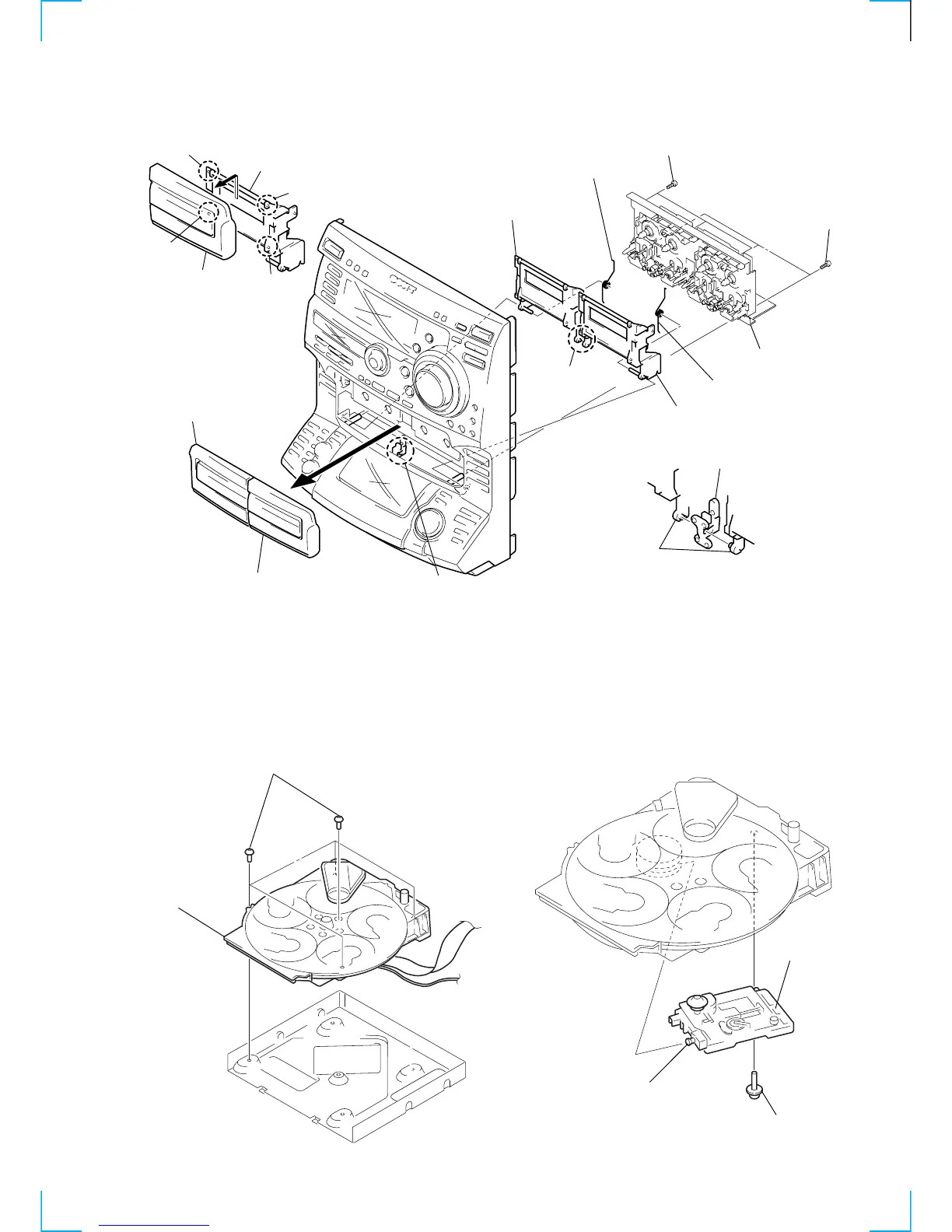

2-5. TAPE MECHANISM DECK AND CASSETTE LID
2-6. CD MECHANISM DECK 2-7. BASE UNIT
5 Cassette lid (B) assembly
(Refer to upper figure)
7 Holder (B) assembly
(Refer to lower figure)
6 Holder (A) assembly
(Refer to lower figure)
4 Cassette lid (A) assembly
(Refer to upper figure)
Cassette lid assembly
Holder assembly
Claw
Claw
Claw
Claw
8 Torsion spring (TC-A)
9 Torsion spring (TC-B)
1 Three screws (BVTP 2.6x8)
2 Three screw
s
(BVTP 2.6x8
)
3 Tape mechanism
Portion B
Portion B
Portion A
Portion A
1 Five screws (BVTP3x8)
2 CD mechanism
deck
3 Base uni
t
1 Yoke fitting
2 Boss
