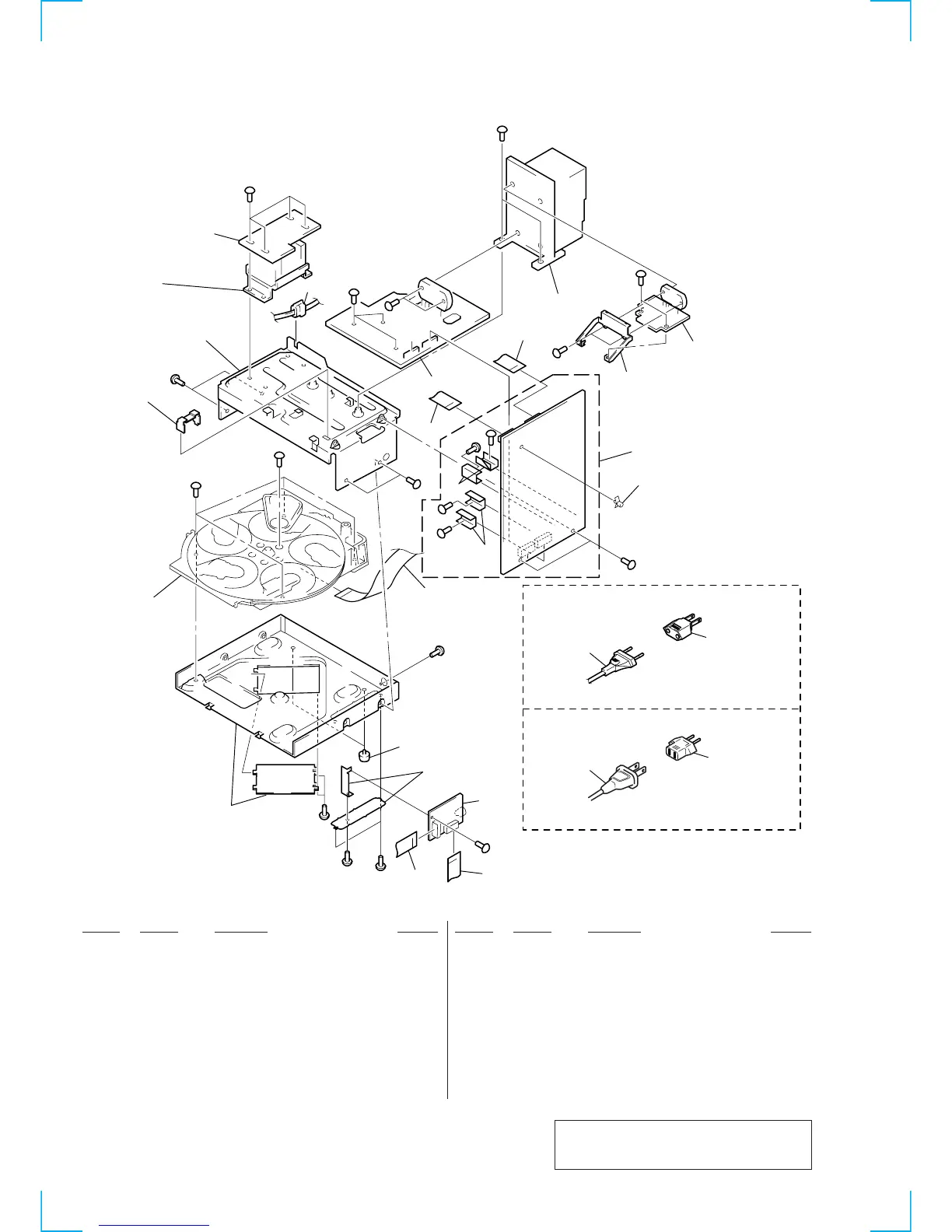

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
(EA, SP, MY)
(EA, SP, MY)
151
159
157
164
156
158
156
155
160
154
161
163
163
153
#8
#3
#3
#3
#3
#3
#3
#3
#3
#7
#3
CNP901
#3
#3
#3
#3
#3
T951
not supplied
not supplied
not supplied
not supplied
not supplied
CDM37L-5BD34L
152
152
(IA)
(IA, TH)
CNP901
#2
#7
#3
#3
162
not supplied
151 1-673-110-11 TRANS BOARD
! 152 1-569-007-11 ADAPTOR, CONVERSION 2P (IA)
! 152 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,MY,SP)
153 3-703-244-00 BUSHING (FBS001), CORD
154 A-4417-494-A PA BOARD, COMPLETE (EA,MY,SP,IA)
154 A-4424-301-A PA BOARD, COMPLETE (TH)
155 A-4417-485-A MAIN BOARD, COMPLETE (MY,SP,IA,TH)
155 A-4419-724-A MAIN BOARD, COMPLETE (EA)
156 1-790-660-11 WIRE (FLAT TYPE) (23 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
158 1-790-288-11 WIRE (FLAT TYPE) (13 CORE) (350 mm)
160 1-773-006-11 WIRE (FLAT TYPE) (15 CORE) (120 mm)
161 1-773-056-11 WIRE (FLAT TYPE) (17 CORE)
* 162 A-4417-711-A SURROUND AMP BOARD, COMPLETE
163 4-875-327-31 HEAT SINK
164 A-4724-725-A VIDEO BOARD, COMPLETE (EA,MY,SP,IA)
164 A-4724-929-A VIDEO BOARD, COMPLETE (TH)
! CNP901 1-558-943-41 CORD, POWER (TH,IA)
! CNP901 1-575-651-21 CORD, POWER (EA,MY,SP)
! T951 1-433-613-11 TRANSFORMER, POWER
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
