Sony HCD-VR90AV - Base Unit Section (BU-5 BD32 L)

76

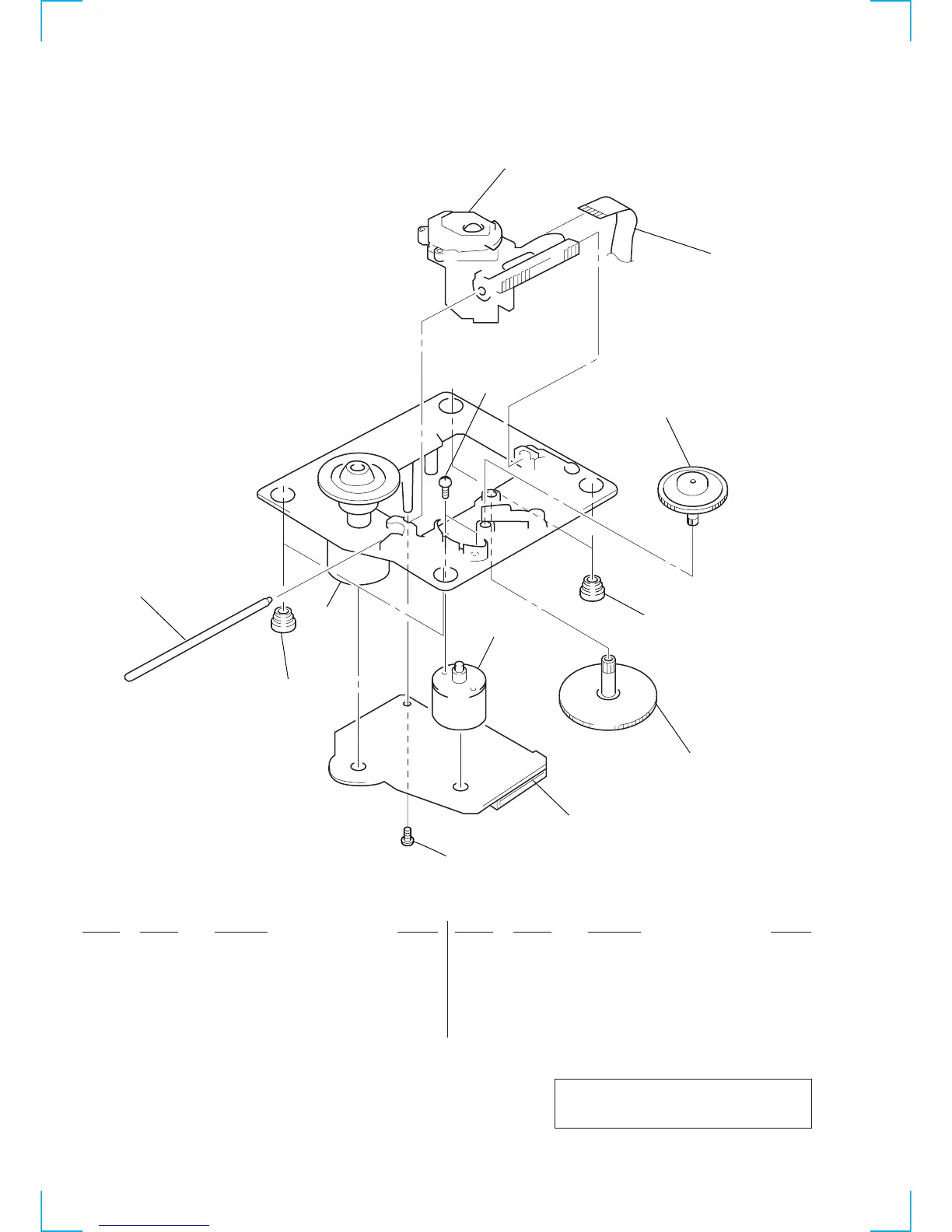

7-8. BASE UNIT SECTION (BU-5BD32L)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
M102
M101
601
602
603
609
604
605
604
608
607
606
! 601 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-NP
602 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
603 4-917-567-21 GEAR (M)
604 4-951-940-01 INSULATOR (BU)
605 4-917-565-01 SHAFT, SLED
606 4-917-564-01 GEAR (P), FLATNESS
607 A-4724-653-A BD BOARD, COMPLETE
608 4-951-620-01 SCREW (2.6 × 8), +BVTP
609 3-713-786-51 SCREW +P 2 × 3
M101 X-4917-523-3 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
