22
VIDEO SECTION
Frequency adjustment
1. Connect the frequency counter to check point of the VIDEO
board.
2. Adjust CT503 of the VIDEO board so that the frequency counter
read 27MHz ± 80Hz at STOP condition.

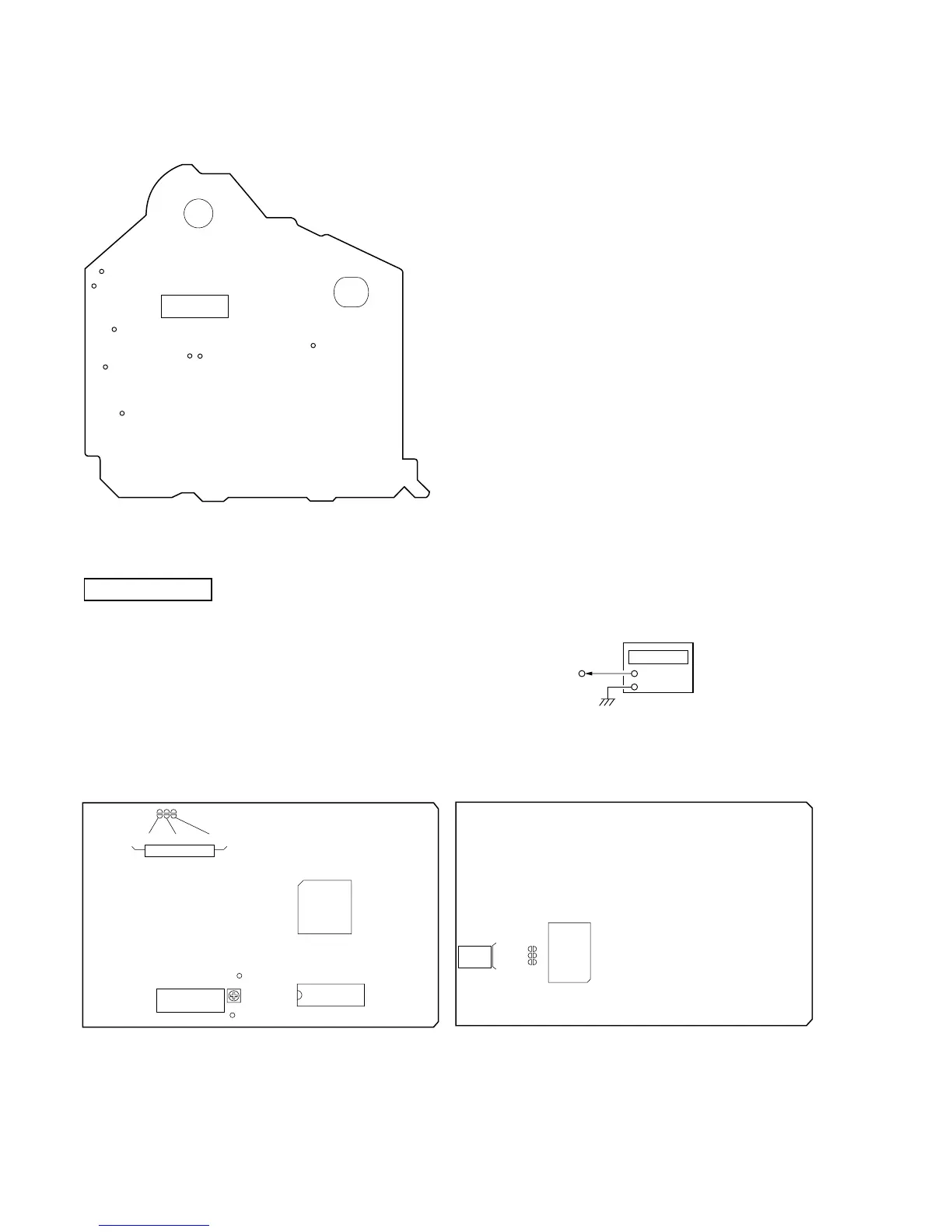

[ VIDEO BOARD ] – SIDE B –
Adjustment Location :
[ VIDEO BOARD ] – SIDE A –
frequency counte
r
VIDEO board
(27 MHz)
+
–
SL501
IC502
SL502
SL503
TEST
MODE
SL501
SL502
CT503
SL503
TEST MODE
VIDEO
FREQUENCY
(27MHz)
(GND)
IC507
IC505
Adjustment Location :
[ BD BOARD ] — SIDE B —
TP
(VC)
TP
(RF)
TP
(TEO)
TP
(IOP)
TP
(FEO)
TP
(AGND)
TP
(DGND)
TP
(AGCCON)
IC102
