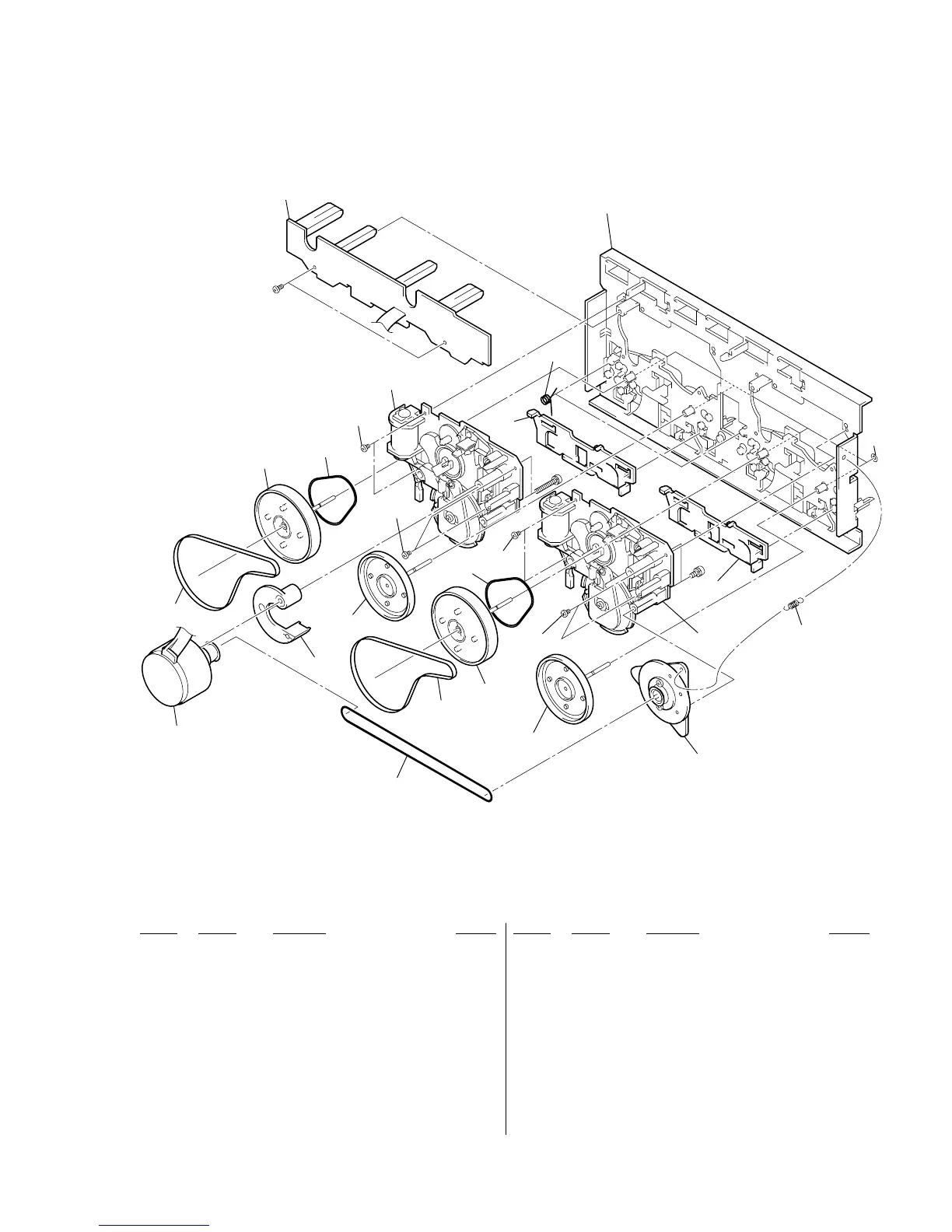

8-5. TAPE MECHANISM DECK SECTION-2
(TCM-230PWR11)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 X-4952-881-1 CHASSIS ASSY, MAIN
202 3-041-946-01 BELT (CAPSTAN B)
203 4-227-239-01 BELT (CAPSTAN C)
204 3-016-568-01 BRACKET (MOTOR)
205 X-3378-040-1 FLYWHEEL (A-FWD) ASSY
206 X-3378-041-1 FLYWHEEL (A-REV) ASSY
207 X-3374-157-1 PULLEY ASSY, TENSION
208 3-041-947-01 BELT (FR)
209 A-2004-752-A BLOCK (A) ASSY, MECHANICAL
210 3-016-566-01 SLIDER, REVERSE
211 A-2007-838-A LEAF SW BOARD, COMPLETE
212 4-228-450-01 SPRING (REVERSE SLIDER),TORSION
213 3-019-208-01 WASHER, STOPPER
214 3-027-453-01 SPRING (GROUND), TENSION
215 3-030-823-01 SCREW (+BVTT) (2X3.5)
216 A-2004-753-A BLOCK (B) ASSY, MECHANICAL
217 X-3378-042-1 FLYWHEEL (B-FWD) ASSY
218 X-3378-043-1 FLYWHEEL (B-REV) ASSY
219 7-685-851-04 SCREW +BVTT 2X4 (S)
220 7-628-254-15 SCREW +PS 2.6X6
221 7-628-254-50 SCREW +PS 2.6X16
M1 X-3378-241-1 MOTOR ASSY (INCLUDING PULLEY)
To Next Page
