Sony HCD-VX77 - Printed Wiring Board - Panel Section

HCD-VX77/VX77J
40
40

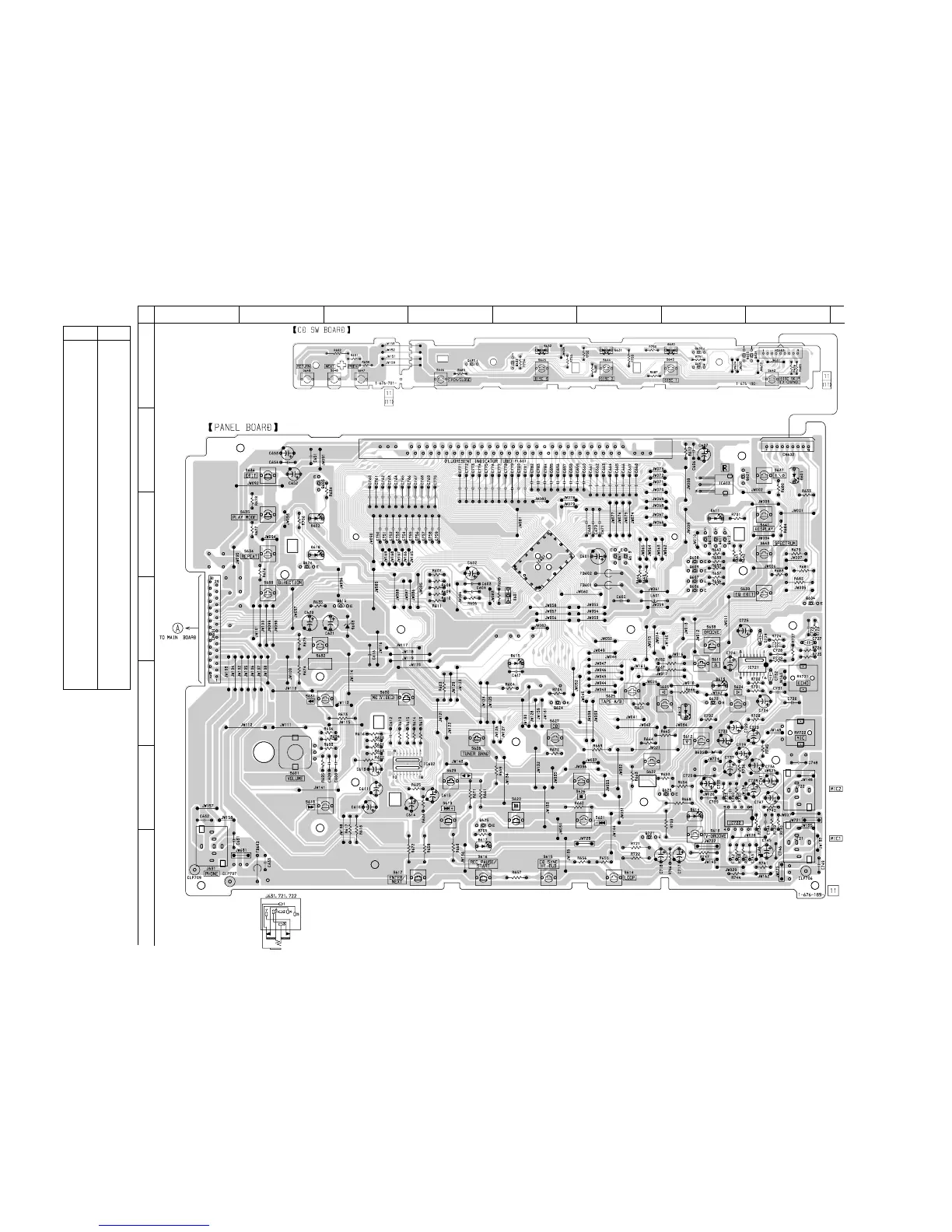

7-15. PRINTED WIRING BOARD – PANEL SECTION – • See page 23 for Circuit Boards Location.
Ref. No. Location
D601 B-8
D602 C-2
D603 D-3
D611 C-7
D612 E-7
D613 E-7
D614 F-7
D615 D-5
D617 G-4
D618 C-2
D630 A-6
D631 A-5
D632 A-4
IC601 C-5
IC602 F-4
IC603 B-7
IC721 E-8
IC722 F-8
Q604 D-8
Q605 B-2
Q606 D-7
Q607 D-7
Q608 C-7
Q609 C-7
Q610 C-7
Q611 C-7
Q612 C-7
Q613 C-6
Q614 C-6
Q615 D-3
Q621 B-7
Q622 E-7
Q623 F-7
Q624 E-5
Q625 F-4
Q626 C-2
Q630 A-7
Q631 A-7
Q632 A-4
Q633 A-7
Q634 A-7
Q635 A-3
Q721 G-6
• Semiconductor
Location
12
A
B
C
D
E
F
G
345678
(Page 34)
09
EFFECT
CHINEMA
SPACE
