Sony HCD-VX77 - Panel Section

62

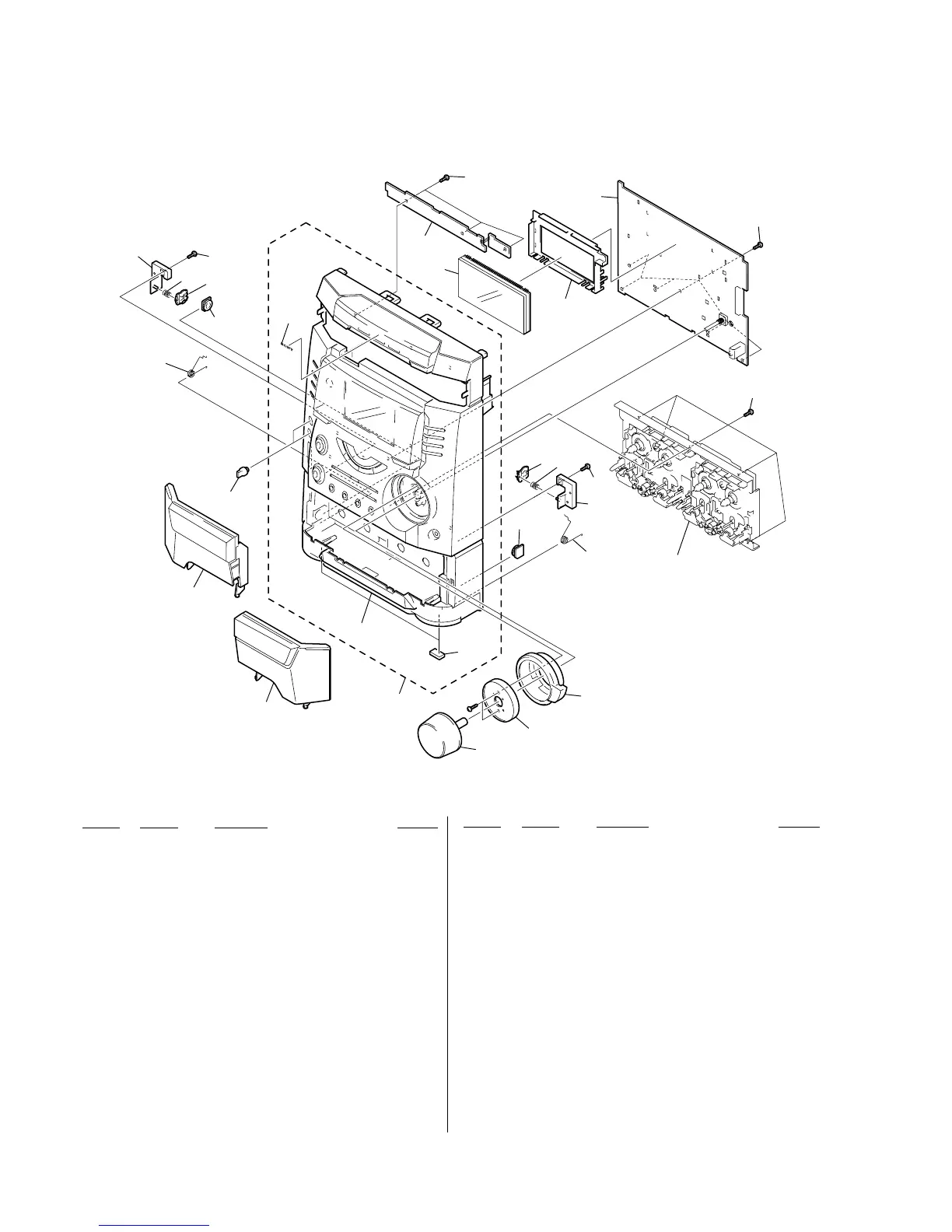

8-2. PANEL SECTION
51
52
53
56
69
58
57
70
59
59
63
64
65
66
54
55
* 67
67
67
67
61
60
60
62
* For service only
(Be sure to refer to "Service note" on page 4.)
Tape mechanism deck
FL601
68
67
not supplied
not supplied
#7
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
51 X-4952-418-1 TC HOLDER (L) ASSY
(VX77:MY,SP,HK,IA,TH,EA,VX77J)
51 X-4952-790-1 TC HOLDER (L) ASSY (VX77:E)
52 X-4952-419-1 TC HOLDER (R) ASSY
(VX77:MY,SP,HK,IA,TH,EA,VX77J)
52 X-4952-789-1 TC HOLDER (R) ASSY(VX77:E)
53 4-225-032-11 VOL KNOB
54 A-4428-450-A CD SWITCH BOARD, COMPLETE
(VX77:MY,SP,EA,HK,IA,E)
54 A-4428-978-A CD SWITCH BOARD, COMPLETE (VX77:TH)
54 A-4473-045-A CD SWITCH BOARD, COMPLETE (VX77J)
55 4-962-708-81 EMBLEM (4-A), SONY
56 4-225-033-01 FR KNOB
57 X-4952-661-1 FRONT PANEL ASSY
(VX77:MY,SP,EA,HK,IA,TH,VX77J)
57 X-4952-675-1 FRONT PANEL ASSY (VX77:E)
58 4-224-562-01 BRACKET (HEART CAM L)
59 4-224-803-01 SPRING (PUSH),COMPRESSION COIL
60 4-224-104-11 DAMPER
61 4-224-560-01 CAM (L), HEART
62 4-224-559-01 CAM (R), HEART
63 4-224-561-01 BRACKET (HEART CAM R)
64 4-225-053-01 SPRING R
65 4-224-584-11 HOLDER (FL)
66 A-4428-457-A PANEL BOARD, COMPLETE
(VX77:MY,SP,EA,HK,IA,E)
66 A-4428-980-A PANEL BOARD, COMPLETE (VX77:TH)
66 A-4473-047-A PANEL BOARD, COMPLETE (VX77J)
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-224-578-11 KNOB (MIC)
69 4-225-052-01 SPRING L
70 4-225-252-01 CUSHION (FOOT)
FL601 1-517-928-11 INDICATOR TUBE, FLUORESCENT
