Sony HCD-VX77 - Mechanism Section Exploded Views

64
151
151
152
152
153
153
154
154
155
156
156
155
HRPE101
HP101
Note: Two different types of tape mechanism are used depending on models.
They maintain compatibility as an entire mechanism even though
there are some different parts are used.

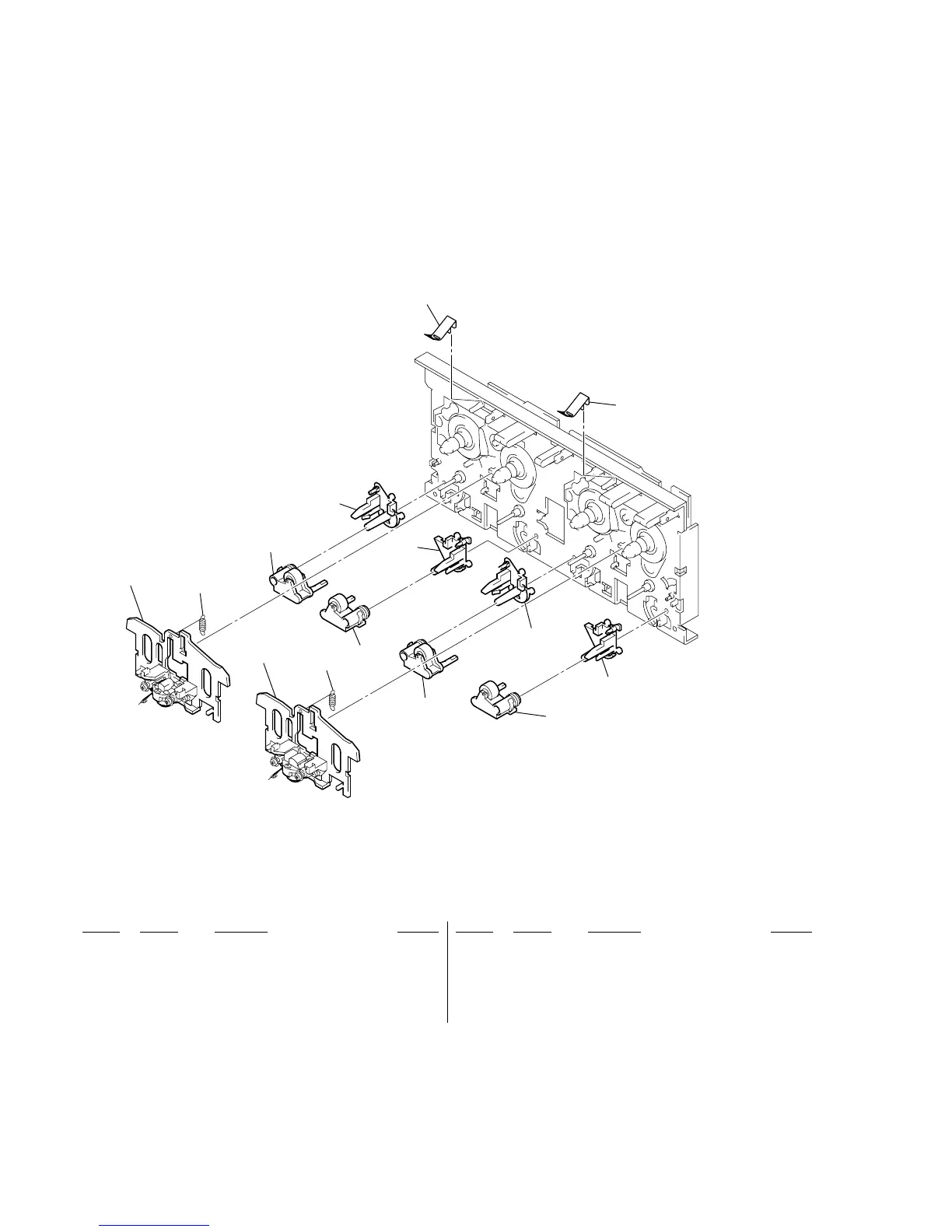

8-4. TAPE MECHANISM DECK SECTION-1
(TCM-230PWR11)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 3-016-574-01 SPRING (HEAD), TENSION
152 X-3374-156-1 PINCH LEVER (REV) ASSY
153 X-3374-155-1 PINCH LEVER (FWD) ASSY
154 3-017-365-01 BASE (PINCH LEVER FWD)
155 3-017-366-01 BASE (PINCH LEVER REV)
156 3-016-567-01 SPRING (CASSETTE), LEAF
HP101 A-2004-778-A BASE (A) ASSY, HEAD
HRPE101 A-2004-779-A BASE (B) ASSY, HEAD
Ver 1.1 2001.08
