#3
#3
#3
#3
#5
#2
4
7
3
5
1
1
2
2
6
Front panel section
Chassis section
#3
M961
9
8
10
12
11
not supplied

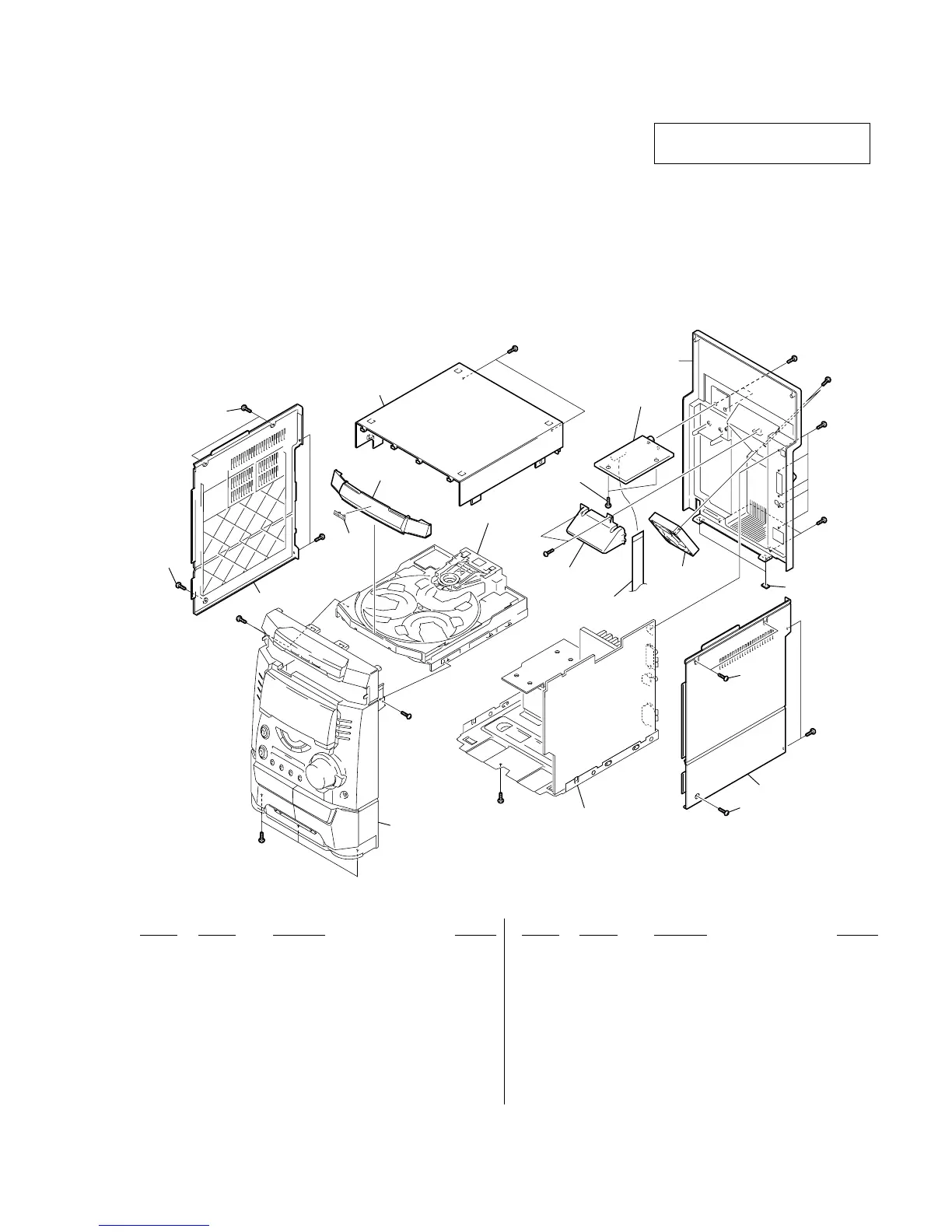

8-1. MAIN SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
IA : Indonesian model
HK : Hong Kong model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
1 3-363-099-01 SCREW (CASE 3 TP2)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-225-038-31 SIDE PANEL L
4 4-225-018-71 LOADING PANEL (VX77:MY,SP,EA,HK,IA,TH)
4 4-225-018-81 LOADING PANEL (VX77:E)
4 4-228-259-31 LOADING PANEL (VX77J)
5 4-225-039-31 SIDE PANEL R
6 4-224-550-41 UPPER CASE (TOP)
7 4-991-781-01 EMBLEM (VCD)
8 4-225-040-61 BACK PANEL (VX77:TH)
8 4-227-061-11 BACK PANEL (VX77:MY,SP,EA,HK,IA,E,VX77J)
9 4-225-252-01 CUSHION (FOOT)
10 A-4724-973-A VIDEO BOARD, COMPLETE
11 1-792-246-11 WIRE (FLAT TYPE) (23 CORE)
12 4-951-620-01 SCREW (2.6x8),+BVTP
M961 1-763-072-11 FAN, DC
