HCD-VX77/VX77J
2929

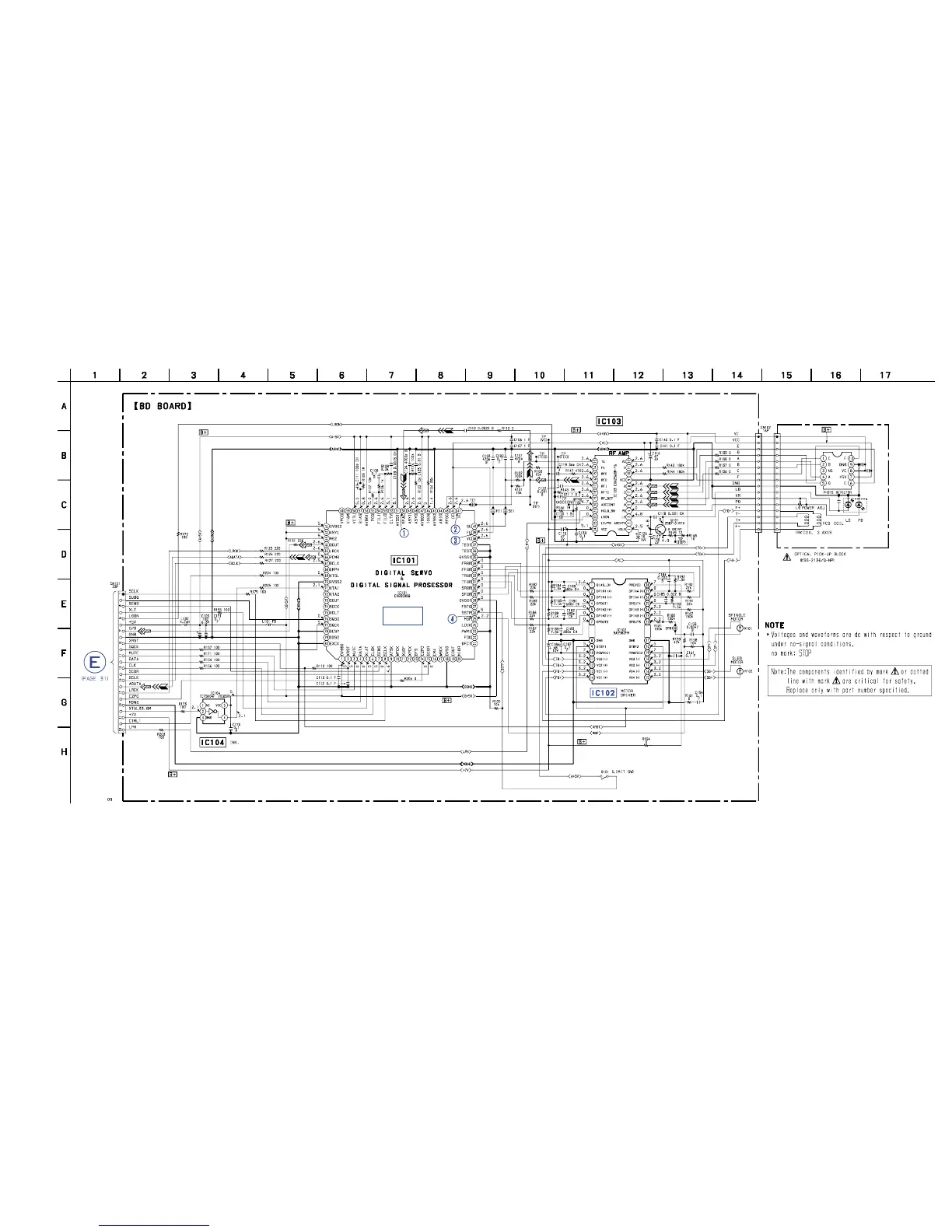

7-4. SCHEMATIC DIAGRAM – BD SECTION –
• See page 24 for Waveforms.
• See page 57 for IC Block Diagrams.
• See page 48 for IC Pin Function.
