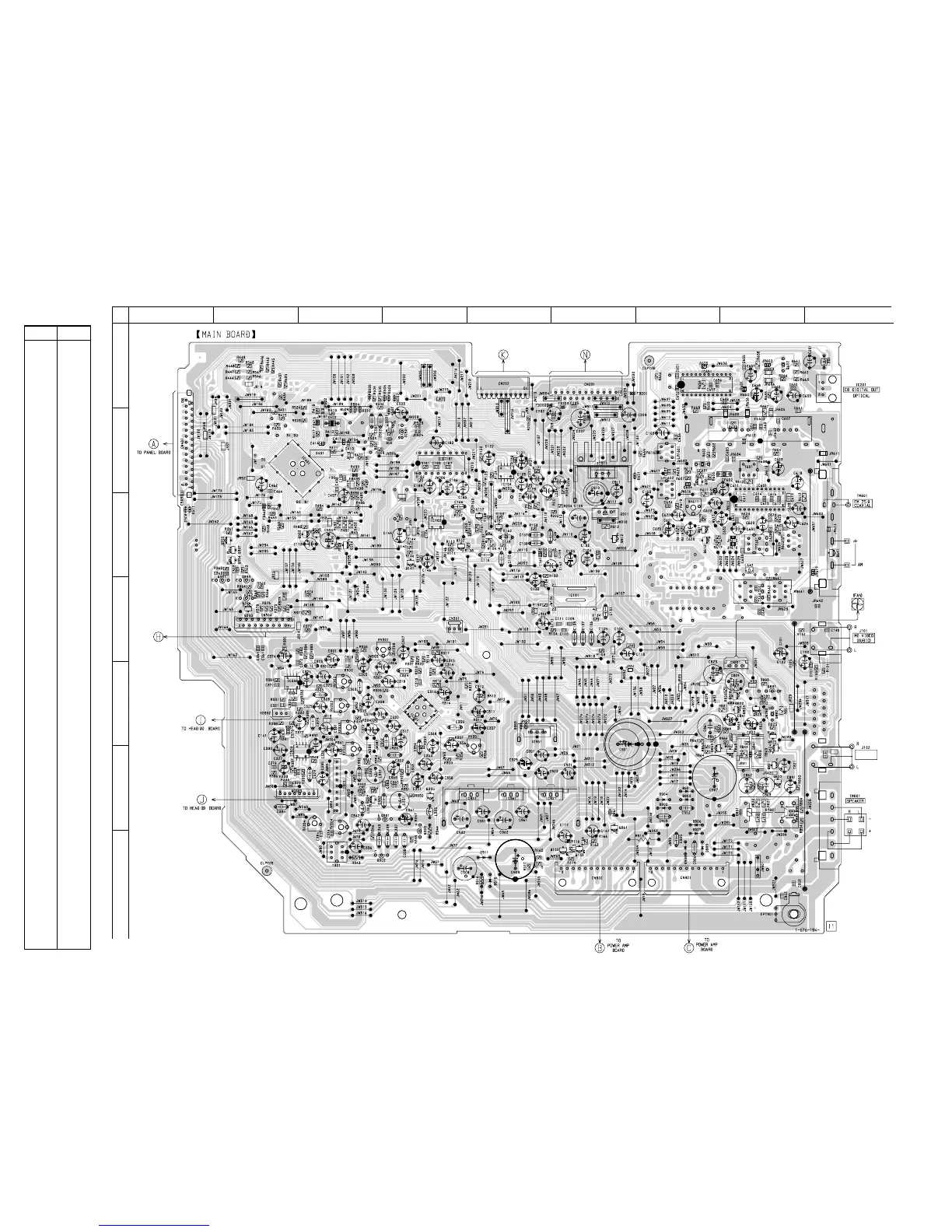

7-9. PRINTED WIRING BOARD – MAIN SECTION – • See page 23 for Circuit Boards Location.
Ref. No. Location
D501 B-3
D502 B-4
D503 A-4
D504 B-3
D505 A-3
D506 A-4
D508 C-1
D509 B-3
D510 B-3
D511 C-1
D601 B-7
D641 C-9
D651 B-7
D681 C-7
D801 F-8
D822 E-8
D861 F-6
D891 F-8
D892 F-8
D901 F-7
D902 F-7
D903 F-7
D904 F-7
D906 G-7
D907 G-7
D908 G-7
D909 G-7
D910 G-5
D911 G-5
D952 E-5
D953 E-5
D957
IC104 B-5
IC101 D-6
IC102 C-4
IC302 F-3
IC303 E-2
IC304 F-3
IC301 E-4
IC401 B-3
IC501 B-4
IC601 C-8
IC651 A-7
IC681 C-7
IC682 D-7
IC911 B-6
IC951 E-5
IC961 F-6
Q101 C-5
Q102 C-4
Q103 G-6
Q141 C-4
Q151 C-5
Q152 C-5
Q153 G-6
Q301 G-4
Q302 G-3
Q303 G-4
Q304 F-3
Q305 F-4
Q391 D-2
Q392 D-2
Q393 D-2
Q394 C-2
Q395 D-2
Q396 D-2
Q397 C-2
Q501 B-4
Q503 C-3
Q504 C-3
Q505 C-3
Q601 B-7
Q602 A-8
Q611 C-7
Q612 C-7
Q821 F-8
Q822 F-8
Q823 E-8
Q824 E-8
Q825 E-8
Q828 E-8
Q829 E-8
Q861 F-6
Q862 F-8
Q863 E-7
Q891 E-8
Q892 E-8
Q911 C-6
Q912 C-6
• Semiconductor
Location
12
A
B
C
D
E
F
G
3456789
(Page 30)
(Page 40)
TO LEAF SW BOARD
(Page 42)
(Page 42)
(Page 38) (Page 38)
TO DRIVER BOARD TO VIDEO BOARD
(Page 44)
(Page 42)
JR917
C143
SURROUND
SPEAKER
09
IC103
