Sony HCD-VX77 - Main Board Section

63
IA,E,TH,VX77J
E,IA,VX77J
SP,MY,EA,HK
#2
#2
#4
#6
#2
#6
109
109
108
103
107
106
101
102
104
105
not supplied
not supplied
108
109
EA,SP,MY
HK

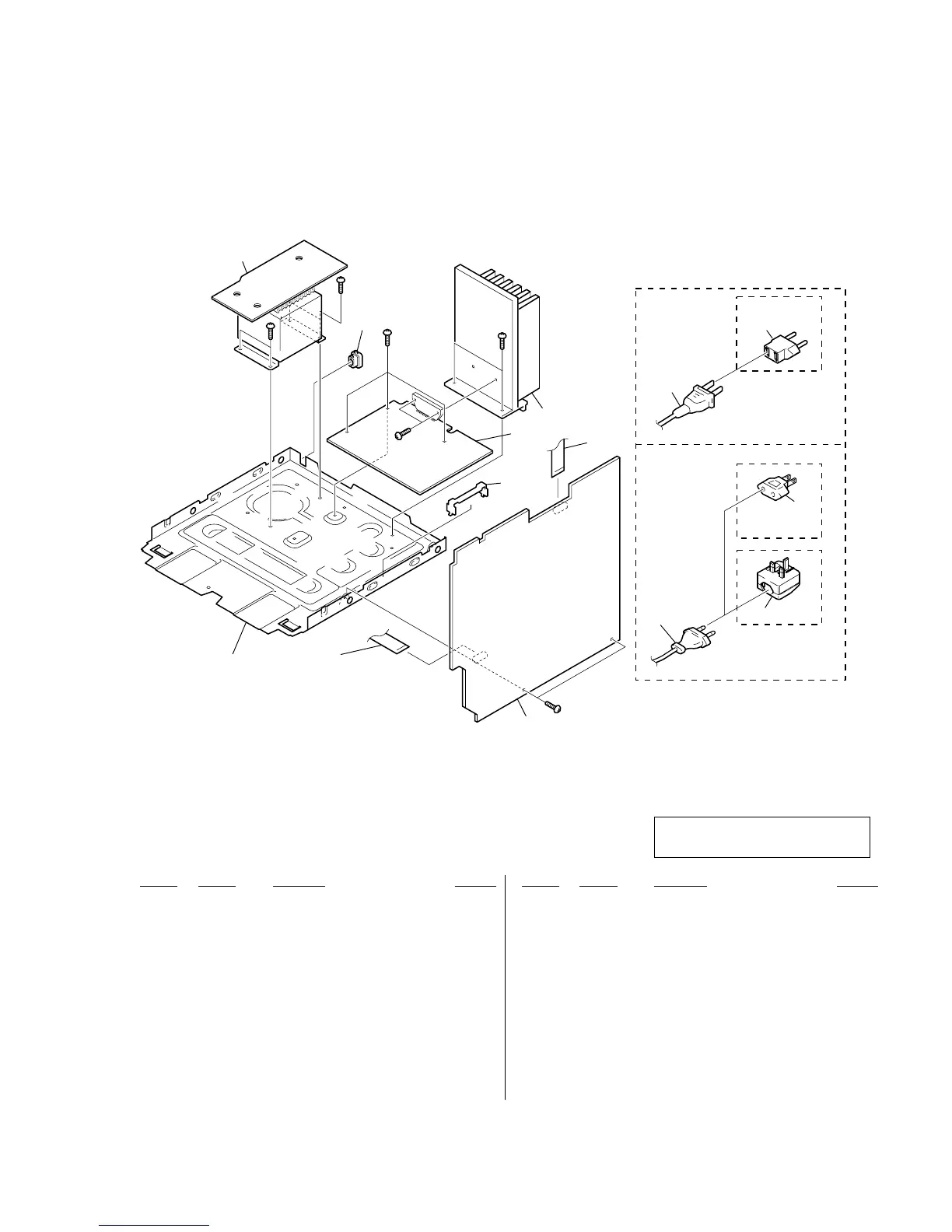

8-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
102 A-4428-475-A MAIN BOARD, COMPLETE
(VX77:MY,SP,HK,IA,E)
102 A-4473-167-A MAIN BOARD, COMPLETE (VX77:TH)
102 A-4473-325-A MAIN BOARD, COMPLETE (VX77:EA)
102 A-4473-339-A MAIN BOARD, COMPLETE (VX77J)
* 103 4-988-533-01 HOLDER, PWB
104 1-769-987-11 WIRE (FLAT TYPE) (13 CORE)
105 A-4428-346-A TRANS BOARD, COMPLETE
(VX77:MY,SP,EA,HK,IA,E)
105 A-4473-166-A TRANS BOARD, COMPLETE (VX77:TH)
105 A-4473-345-A TRANS BOARD, COMPLETE (VX77J)
106 3-703-244-00 BUSHING (FBS001), CORD
107 A-4428-344-A POWER AMP BOARD, COMPLETE
(VX77:MY,SP,EA,HK,IA,E)
107 A-4473-170-A POWER AMP BOARD, COMPLETE (VX77:TH)
107 A-4473-342-A POWER AMP BOARD, COMPLETE (VX77J)
0 108 1-575-653-11 CORD, POWER (VX77:E,IA,VX77J)
0 108 1-777-071-51 CORD, POWER (VX77:MY,SP,EA,HK)
0 108 1-791-901-11 CORD, POWER (VX77:TH)
0 109 1-569-007-11 ADAPTOR, CONVERSION 2P
(VX77:E,IA,VX77J)
0 109 1-569-008-21 ADAPTOR, CONVERSION (VX77:MY,SP,EA)
0 109 1-770-019-12 ADAPTOR, CONVERSION PLUG 3P (VX77:HK)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
