Sony HCD-VX77 - CD Mechanism Deck Section (CDM58-K2 BD37 A)

66

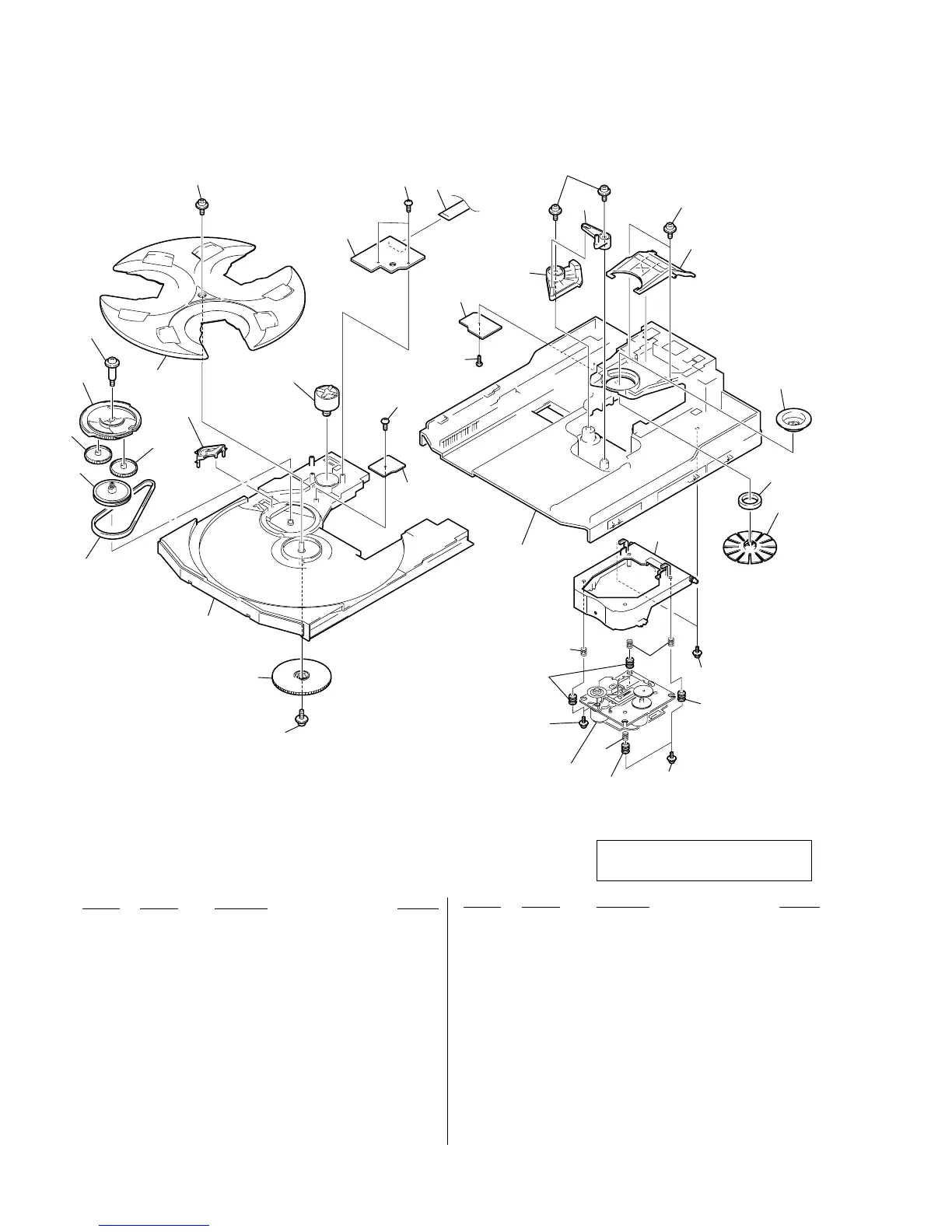

8-6. CD MECHANISM DECK SECTION
(CDM58-K2BD37A)
BU-K2BD37
not supplied
251
252
253
254
273
269
272
275
274
274
M721
255
256
257
259
258
258
258
260
261
262
263
251
264
271
265
266
268
270
270
276
270
271
276
271
267
271
276
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
251 4-933-134-11 SCREW (+PTPWH M2.6X8)
252 4-221-679-01 CAM (RELAY)
253 4-221-675-01 TABLE
254 4-221-686-01 LEVER (CHANGE)
255 4-221-676-01 TRAY
256 4-933-134-51 SCREW (+PTPWH 2.6X8)
257 1-675-910-11 MOTOR BOARD
258 4-951-620-01 SCREW (2.6X8), +BVTP
259 1-791-983-11 WIRE (FLAT TYPE) (8 CORE)
260 1-675-911-11 SENSOR BOARD
261 1-675-912-11 DRIVER BOARD
262 X-4952-608-1 CAM (U/D) ASSY
263 4-221-681-01 LEVER (EX)
264 4-221-682-01 LEVER (LIFTER)
265 4-221-688-01 PULLEY (B), CHUCKING
266 1-471-035-11 MAGNET ASSY
267 X-4952-019-1 PULLEY (A) ASSY, CHUCKING
268 X-4951-889-1 HOLDER (BU) ASSY
269 4-222-097-01 SCREW, STEP
270 4-227-045-01 SPRING (INSULATOR), COIL
271 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
272 4-222-095-01 BELT
273 4-221-678-01 CAM (CONTROL)
274 4-221-683-01 GEAR (U)
275 4-221-685-01 PULLEY (S)
276 4-227-549-11 INSULATOR
M721 A-4672-826-A MOTOR ASSY (INCLUDING PULLEY)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ver 1.1 2001.08
