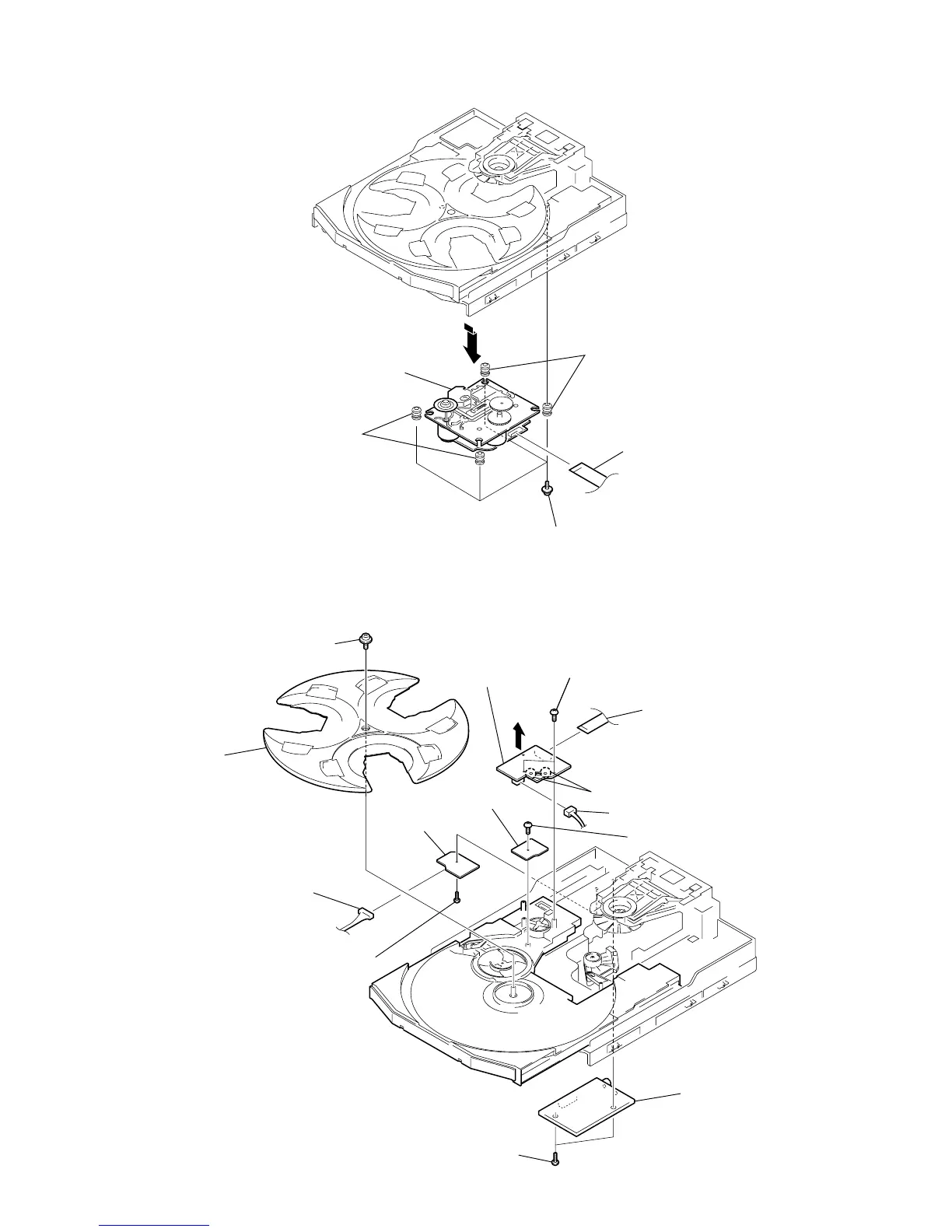

Sony HCD-VX88 - Page 11

11
3
5 base unit
(BU-K2BD37A)
4 two insulators
2 four screws
(PTPWH M2.6)
1 wire (flat type) (23 core)
(CN101)
4 two insulators
0 screw
(PTPWH 2.6 × 8)
qa tray
1 connector
(CN701)
2 screw
(BVTP 3 × 10)
3 DRIVER board
qd SENSOR board
7
9 MOTOR board
6 two screws
(BVTP 2.6 × 8)
4 wire (flat type) (8 core)
(CN721)
8 connector (CN722)
5 Remove two solders of turn motor (M721).
qs screw (BVTP 2.6 × 8)
qf two screws
(BVTP 2.6 × 8)
qg VIDEO board
BASE UNIT (BU-K2BD37A)
DRIVER/MOTOR/SENSOR/VIDEO BOARDS
