Sony HCD-VX88 - (3) CHASSIS SECTION

64

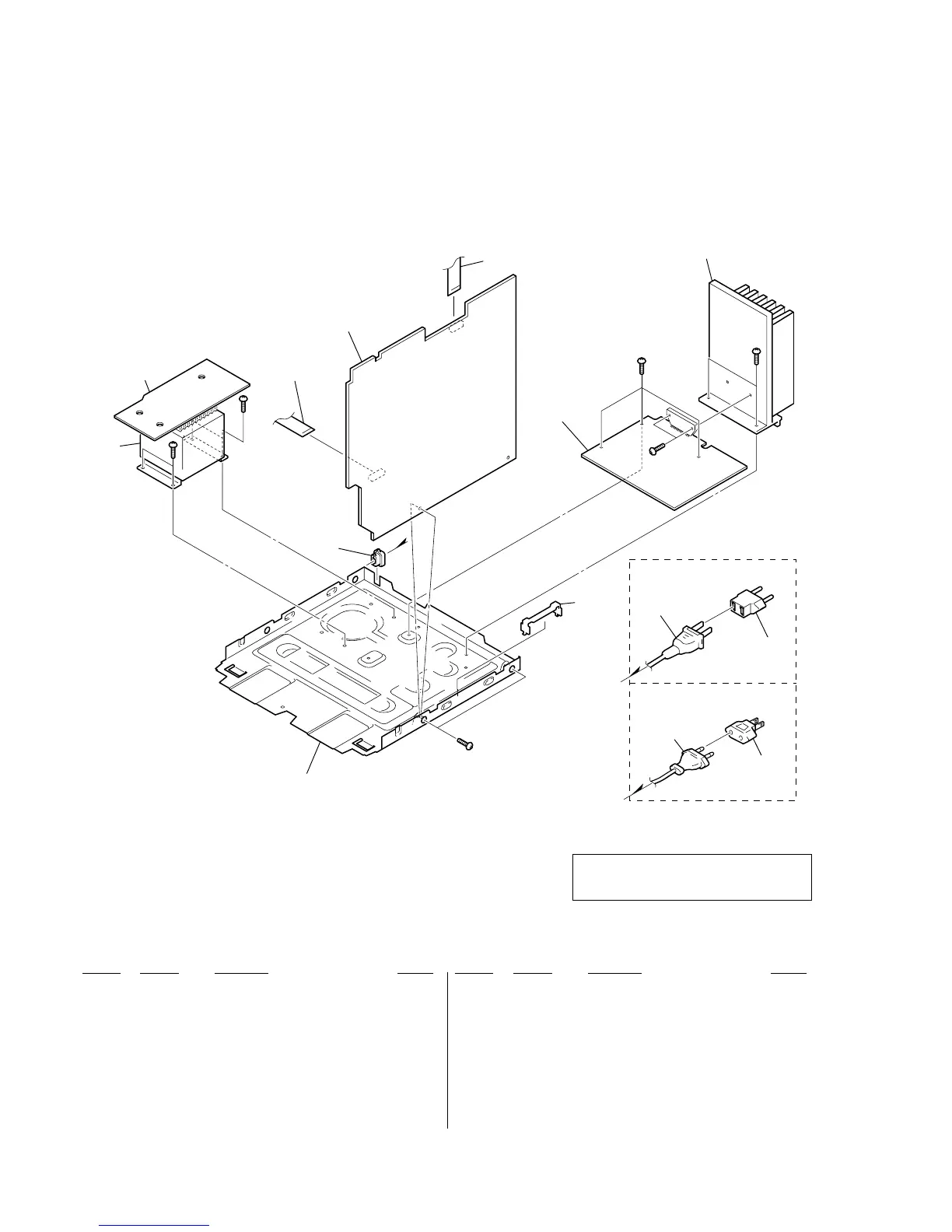

(3) CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
E
#2
#2
#4
#6
#2
#6
109
108
103
107
106
101
102
104
105
not supplied
not supplied
T971
108
109
EA, MY, SP, IA
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
101 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
102 A-4428-472-A MAIN BOARD, COMPLETE (E, MY, SP)
102 A-4473-078-A MAIN BOARD, COMPLETE (EA)
102 A-4473-527-A MAIN BOARD, COMPLETE (IA)
* 103 4-988-533-01 HOLDER, PWB
104 1-690-589-31 WIRE (FLAT TYPE) (13 CORE)
105 1-676-808-11 TRANS BOARD
* 106 3-703-244-00 BUSHING (2104), CORD
107 A-4428-344-A POWER AMP BOARD, COMPLETE (IA)
107 A-4428-483-A POWER AMP BOARD, COMPLETE
(E, EA, MY, SP)
0 108 1-575-653-11 CORD, POWER (E)
0 108 1-777-071-21 CORD, POWER (MY, SP)
0 108 1-777-071-51 CORD, POWER (EA, IA)
0 109 1-569-007-11 ADAPTOR, CONVERSION 2P (E)
0 109 1-569-008-21 ADAPTOR, CONVERSION 2P (EA, MY, SP, IA)
0 T971 1-435-325-11 POWER TRANSFORMER
