Sony HCD-VX88 - (4) TAPE MECHANISM DESK SECTION (TCM-230 AWR11)

65

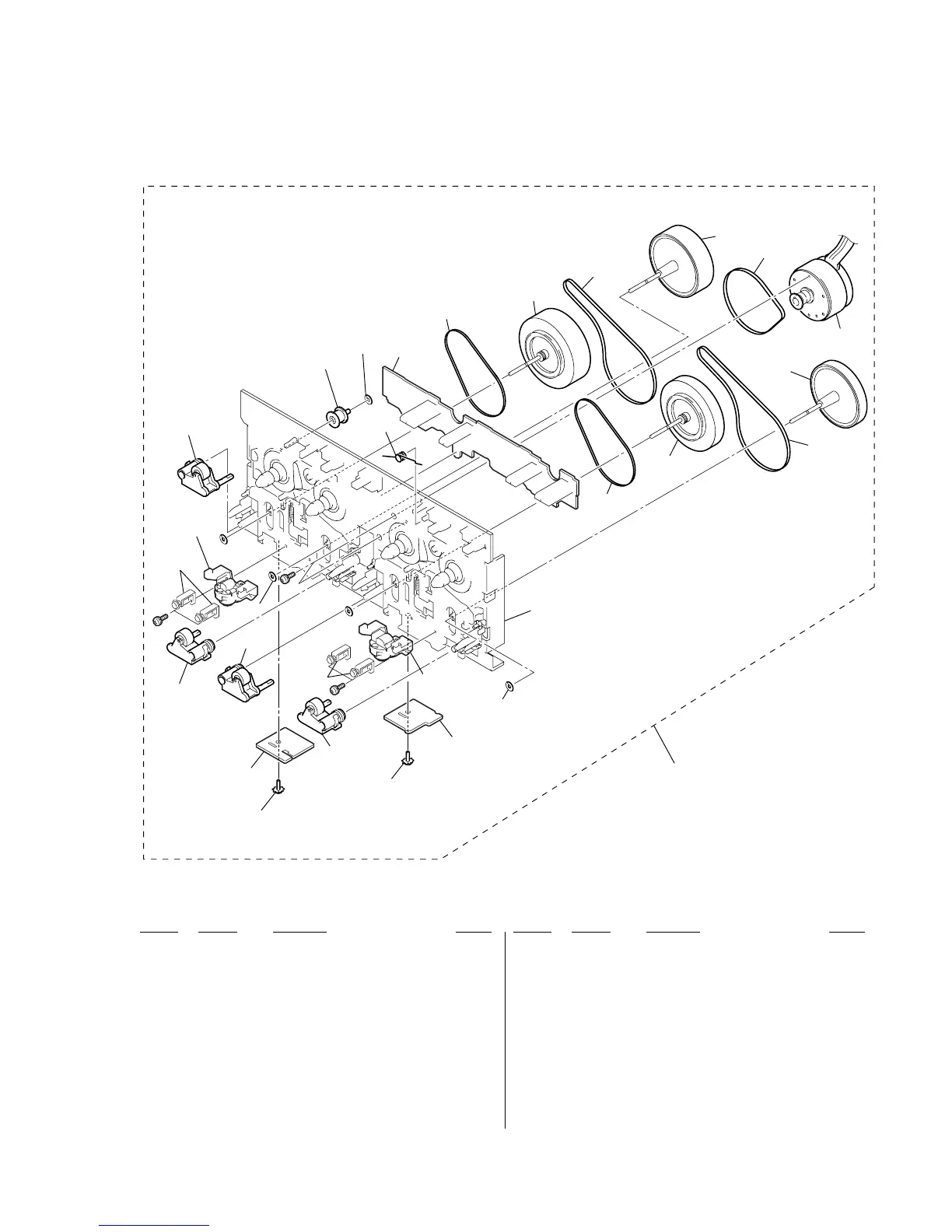

(4) TAPE MECHANISM DESK SECTION
(TCM-230AWR11)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 X-3374-156-5 PINCH LEVER (REV) ASSY
152 X-3374-155-5 PINCH LEVER (FWD) ASSY
153 A-2007-839-A HEAD (A) BOARD, COMPLETE
154 A-2007-840-A HEAD (B) BOARD, COMPLETE
156 3-040-580-02 PULLEY (TENSION)
157 A-2007-838-A LEAF SW BOARD, COMPLETE
158 3-041-947-01 BELT (FR)
159 3-041-946-01 BELT (CAPSTAN B)
160 4-227-239-01 BELT (CAPSTAN C)
162 3-019-208-01 WASHER, STOPPER
163 3-016-533-01 WASHER (FR), STOPPER
164 X-3378-041-1 FLYWHEEL (A-REV) ASSY
165 X-3378-040-1 FLYWHEEL (A-FWD) ASSY
166 X-3378-043-1 FLYWHEEL (B-REV) ASSY
167 X-3378-042-1 FLYWHEEL (B-FWD) ASSY
168 4-227-872-11 SCREW (+PTT 2X4), GROUND POINT
169 4-227-455-02 SPING (HALF), TORSION
170 A-2100-894-A TAPE MECHANISM DECK (TCM-230AWR11)
HP901 X-4953-985-1 BLOCK (A) ASSY, HEAD (PB)
HRPE901X-4953-986-1 BLOCK (B) ASSY, HEAD (REC/PB/ERASE)
M901 X-3378-241-1 MOTOR ASSY (WITH PULLEY)
(CAPSTAN/REEL)
151
158
157
158
170
164
159
159
166
165
160
167
151
152
152
162
169
162
153
154
#1
HP901
HRPE901
not
supplied
not
supplied
not supplied
#7
#8
#8
#7
M901
168
168
163
156
Ver 1.3
