23
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000 ONLY

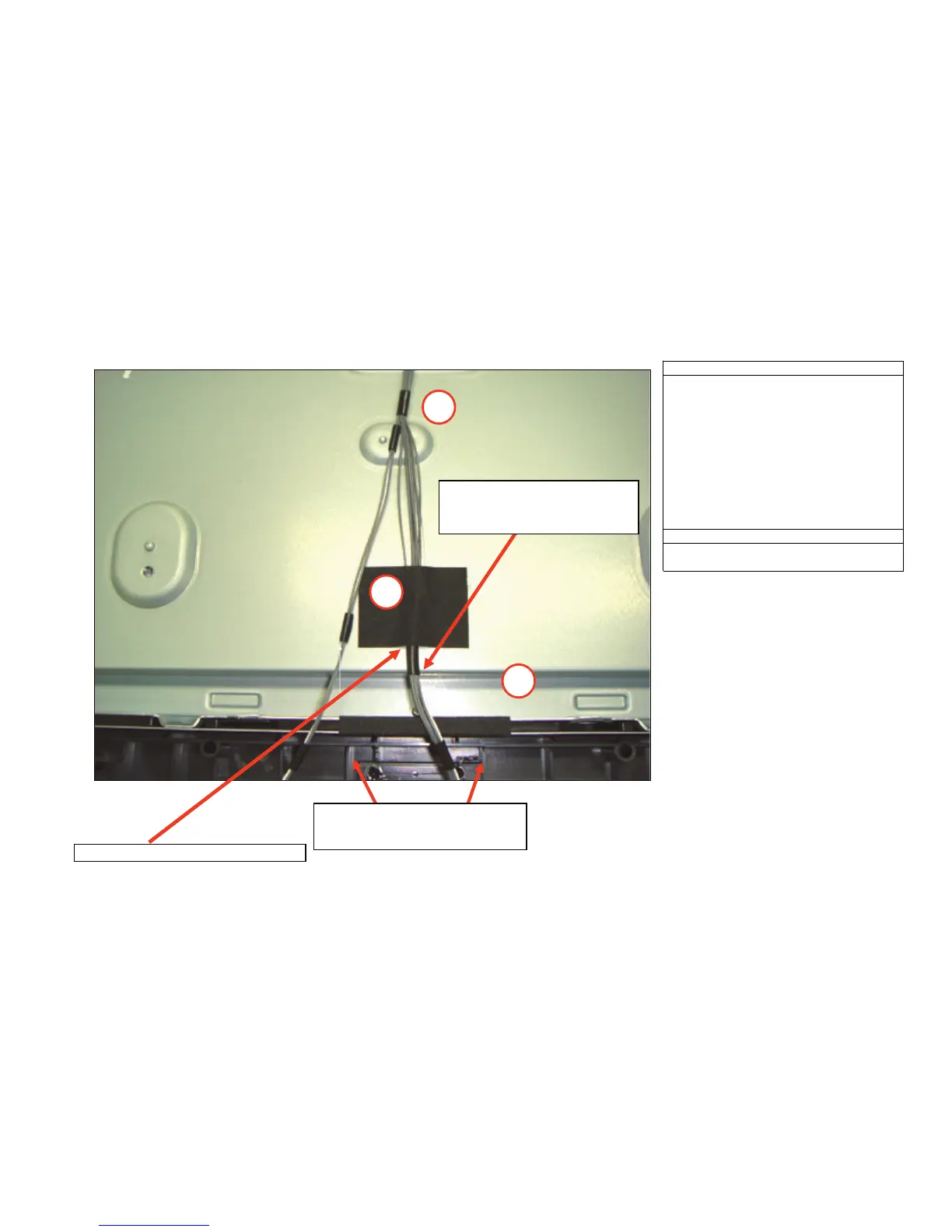

H3 BOARD HARNESS
1. Apply Sheet Core C to edge of Panel to
cover sharp edge of panel.
Use ribs on bezel (w/o screw boss) as a
guide to center tape.
2. Use 2nd UL Tape on H3-Bd harness to
align with edge of panel.
Apply Cushion D to edge of 2nd UL Tape as
shown.
Torque: 0.9㧔N.m㧕
OPERATION PROCESS
TORQUE SPECIFICATION
Use UL Tape edge to align Himelon Tape.
Use ribs on bezel as reference
to center Sheet Core C when applying
to panel edge.
1
2
3
Use 2nd UL Tape wrapping (from H3-Bd)
as refrerence to position H3 cable.
NOTE edge of UL tape is aligned with
edge of panel.
To Next Page
