KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000 ONLY

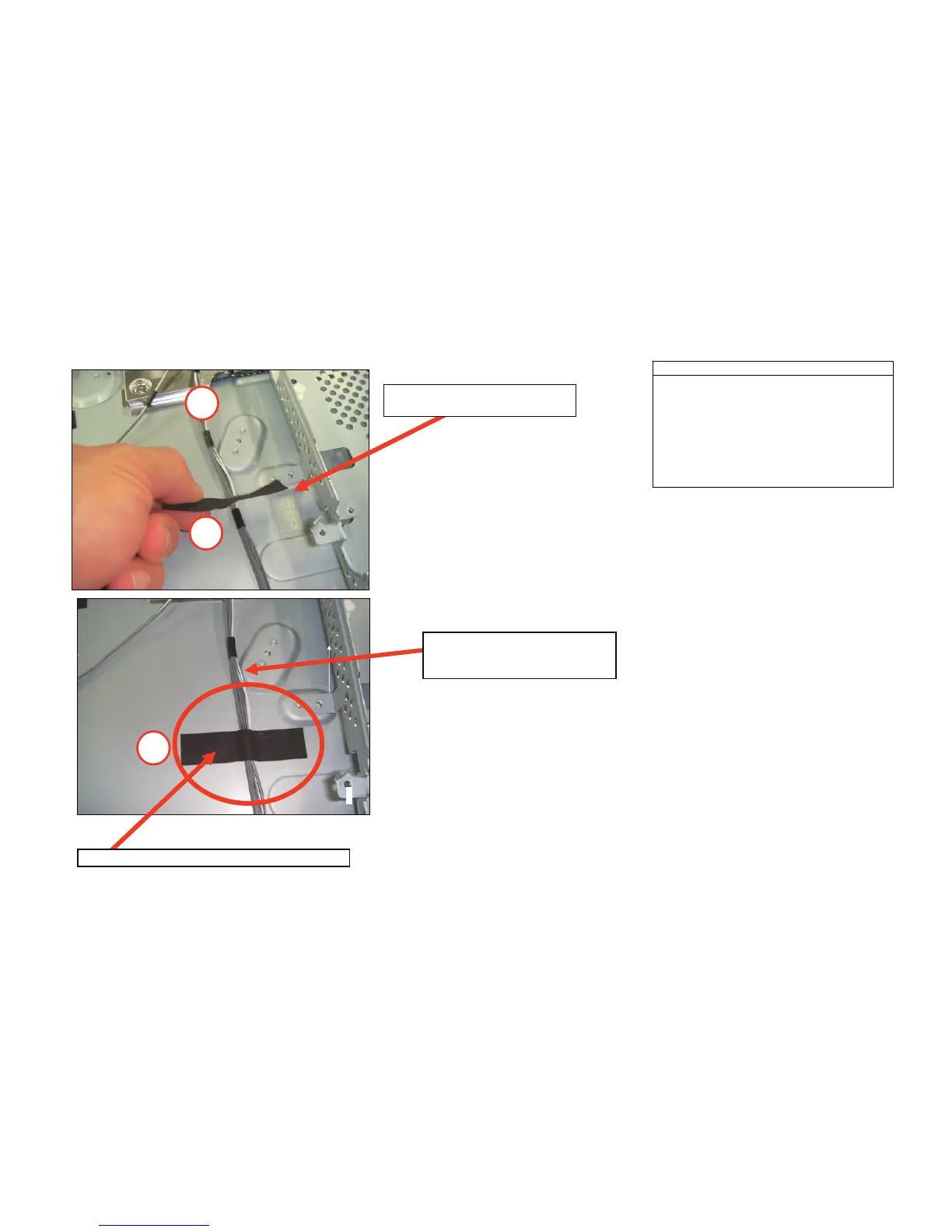

1. Apply Sheet Core C as Shown on H3-Bd
Harness
2. Make sure wires do not cross over "bumps"
in the Panel. LVDS cable will be attached to
bumps (with 3x5mm screw-pinch points).
OPERATION PROCESS
Sheet Core C
Use Panel "bumps" as tape guide.
NOTE ROUTING OF THE CABLES.
Cables CANNOT cross over top of
"bumps" on Panel.
Sheet Core C installed (next to DTT lower shield)
1
2
2
H3 BOARD HARNESS (CONTINUED)
To Next Page
