28
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000

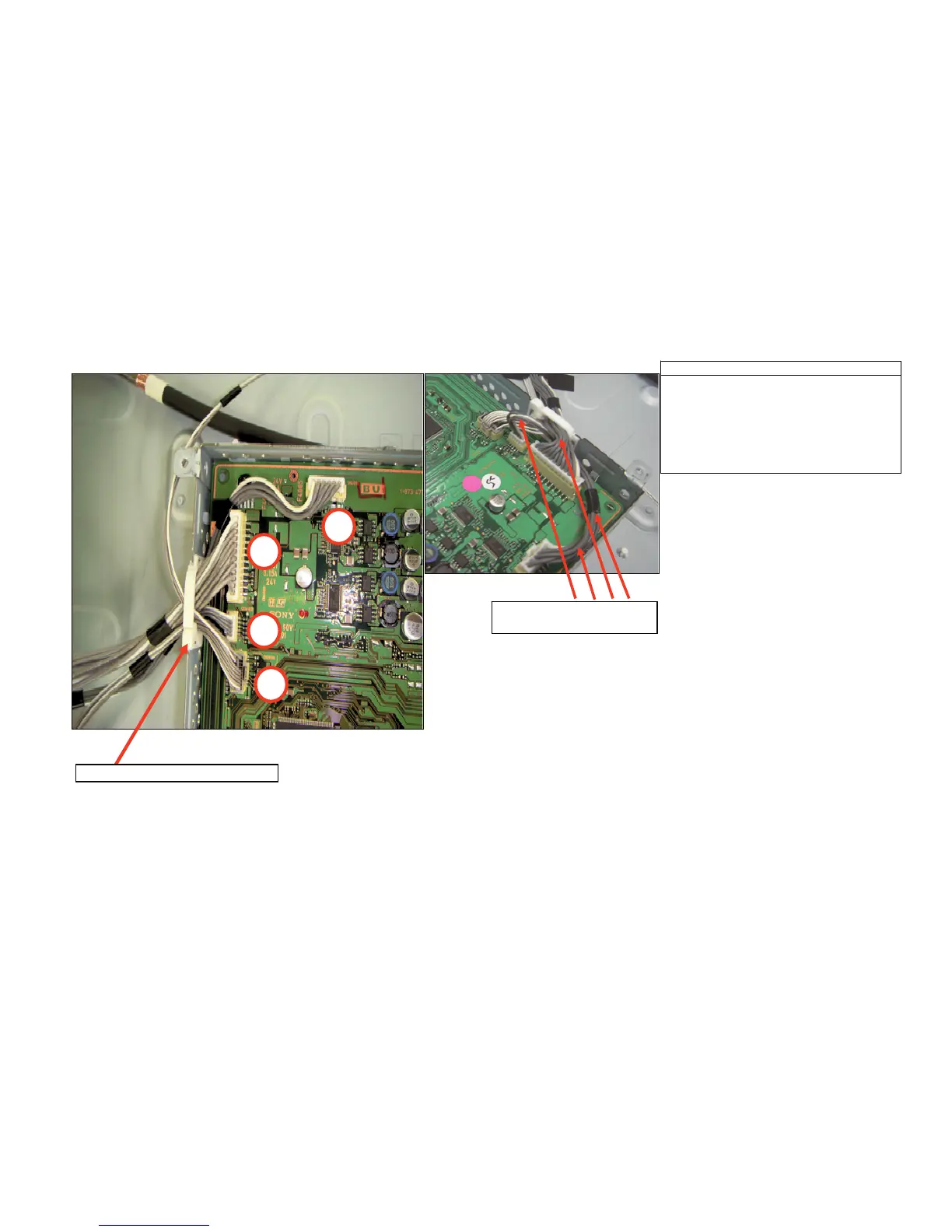

KDL-26S3000 ONL
Y
Route/Dress Harne
sses connected to
Core Block as
Shown
NOTE
Order & Direction of Cables in
plastic Clip on Shield Case.
OPERA
TION PROCE
SS
1
3
2
2
Keep Cables BE
LOW level
of Shield C
ase (Pinch Points)
NOTE order and direction of cable
s!
CORE BLOCK HARNESS
27
29
Table of Contents
Service Manual
1
Table of Contents
3
Section Title
3
Specifi Cations
4
Warnings and Cautions
6
Safety-Related Component Warning
7
Safety Check-Out
9
Self-Diagnostic Function
10
Section 1: Disassembly
12
Rear Cover Removal
12
H1 Board Removal
12
Stand Assembly and VESA Arm Assembly Removal (KDL-26S3000/32S3000 Only)
13
Stand Assembly and VESA Arm Assembly Removal (KDL-40S3000/46S3000 Only)
13
U1 Board, DTT Shield, and Jack Holder Removal
14
BU1 Board Removal
14
G1D/G1H Board (Power Unit) and G1 Bracket Removal (Kdl-26S3000/32S3000 Only)
15
Speaker, H3 Board, and H4 Board Removal
15
G3 Board (Power Unit) and D1 Board Removal (Kdl-40S3000/46S3000 Only)
16
Replacing the Inverter Connector Assembly (KDL-40S3000/46S3000 Only)
16
D2 Board Removal (KDL-46S3000 Only)
17
Replacing the Inverter Connector Assembly (KDL-46S3000 Only)
17
AC Inlet Removal (KDL-26S3000/32S3000 Only)
18
AC Inlet Removal (KDL-40S3000/46S3000 Only)
18
LCD Panel, LED and Guide Light Removal (KDL-26S3000/32S3000 Only)
19
LCD Panel, LED and Guide Light Removal (KDL-40S3000/46S3000 Only)
20
Inverter Board Removal
21
Wire Dressing
22
KDL-26S3000 Only
22
KDL-32S3000 Only
38
KDL-40S3000 Only
54
KDL-46S3000 Only
72
Section 2: Service Adjustments
98
Using the Remote Commander for Electrical Adjustments
98
Accessing Service Adjustment Mode
98
Viewing the Service Menus
98
Using the Remote Commander to View Service Data
99
Changing Service Data
99
Exiting Service Mode
99
Verifying Service Data Changes
100
Resetting to Factory Defaults
100
Kdl-26S3000/32S3000/40S3000/46S3000
100
Section 3: Diagrams
101
Circuit Boards Location
101
Printed Wiring Boards and Schematic Diagrams Information
102
Block Diagram
103
Signal Flow Diagram
103
Connection Diagram (KDL-26S3000/32S3000 Only)
104
Connection Diagram (KDL-40S3000/46S3000 Only)
105
Schematics and Supporting Information
106
BU1 Board Schematic Diagram (1 of 12)
106
BU1 Board Schematic Diagram (2 of 12)
107
BU1 Board Schematic Diagram (3 of 12)
108
BU1 Board Schematic Diagram (4 of 12)
109
BU1 Board Schematic Diagram (5 of 12)
110
BU1 Board Schematic Diagram (6 of 12)
111
BU1 Board Schematic Diagram (7 of 12)
112
BU1 Board Schematic Diagram (8 of 12)
113
BU1 Board Schematic Diagram (9 of 12)
114
BU1 Board Schematic Diagram (10 of 12)
115
BU1 Board Schematic Diagram (11 of 12)
116
BU1 Board Schematic Diagram (12 of 12)
117
D1 Board Schematic Diagram (KDL-40S3000 Only)
119
D2 Board Schematic Diagram (KDL-46S3000 Only)
122
G1D Board Schematic Diagram (KDL-26S3000 Only)
124
G1H Board Schematic Diagram (Power Supply) (KDL-32S3000 Only)
125
G3 Board Schematic (Power Supply) (KDL-40S3000/46S3000 Only)
126
H1 Board Schematic Diagram
128
H3 Board Schematic Diagram
130
H4 Board Schematic Diagram
132
U1 Board Schematic Diagram
134
Semiconductors
136
Section 4: Exploded Views
137
Rear Cover and Stand Assembly
137
Bezel Assembly and LCD Panel
138
Chassis (KDL-26S3000/32S3000 Only)
139
Chassis (KDL-40S3000/46S3000 Only)
140
Connectors (KDL-26S3000/32S3000 Only)
141
Connectors (KDL-40S3000/46S3000 Only)
142
Speakers
143
Section 5: Electrical Parts List
144
Appendix A: Encryption Key Components
175
