29
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000 ONLY

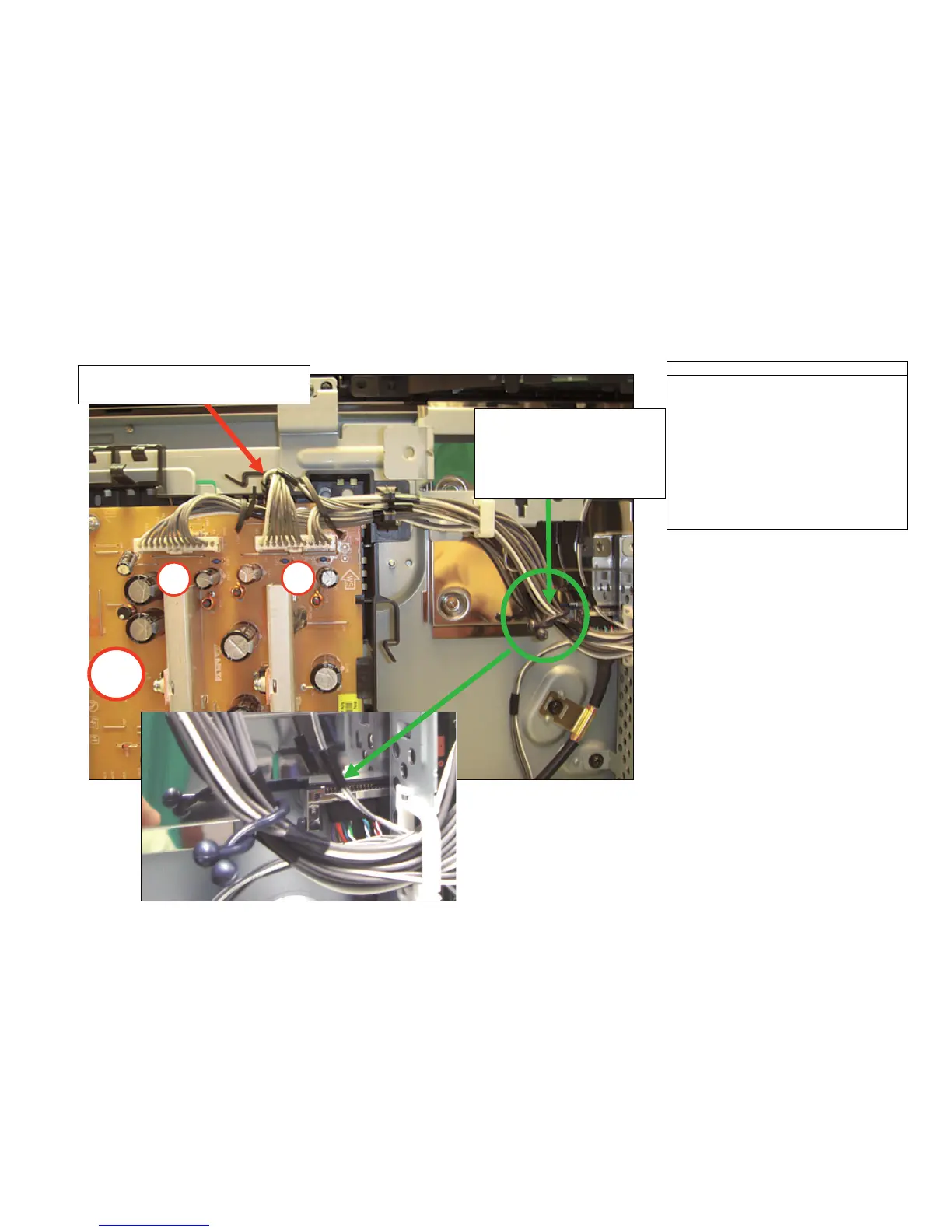

1. Install/Wire Dress Harnesses as shown.
2.
CAUTION: Make sure INVERTER CONN.
is Fully LOCKED!!
Dress Cables in 9mm Purselock as shown.
CAUTION: Keep cables from G1-Bd from
touching LVDS Cable/Connector.
OPERATION PROCESS
1
2
CAUTION: Make Sure
Inverter Conn ON G-Bd is Fully LOCKED!
G1-
Bd
Dress all G-Bd to BU-Bd cables in
9mm Purselock.
Use end of UL Tape on Cables to
position Purselock.
Wires CANNOT touch LVDS cable
or connector!
G1D BOARD
To Next Page
