30
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000 ONLY

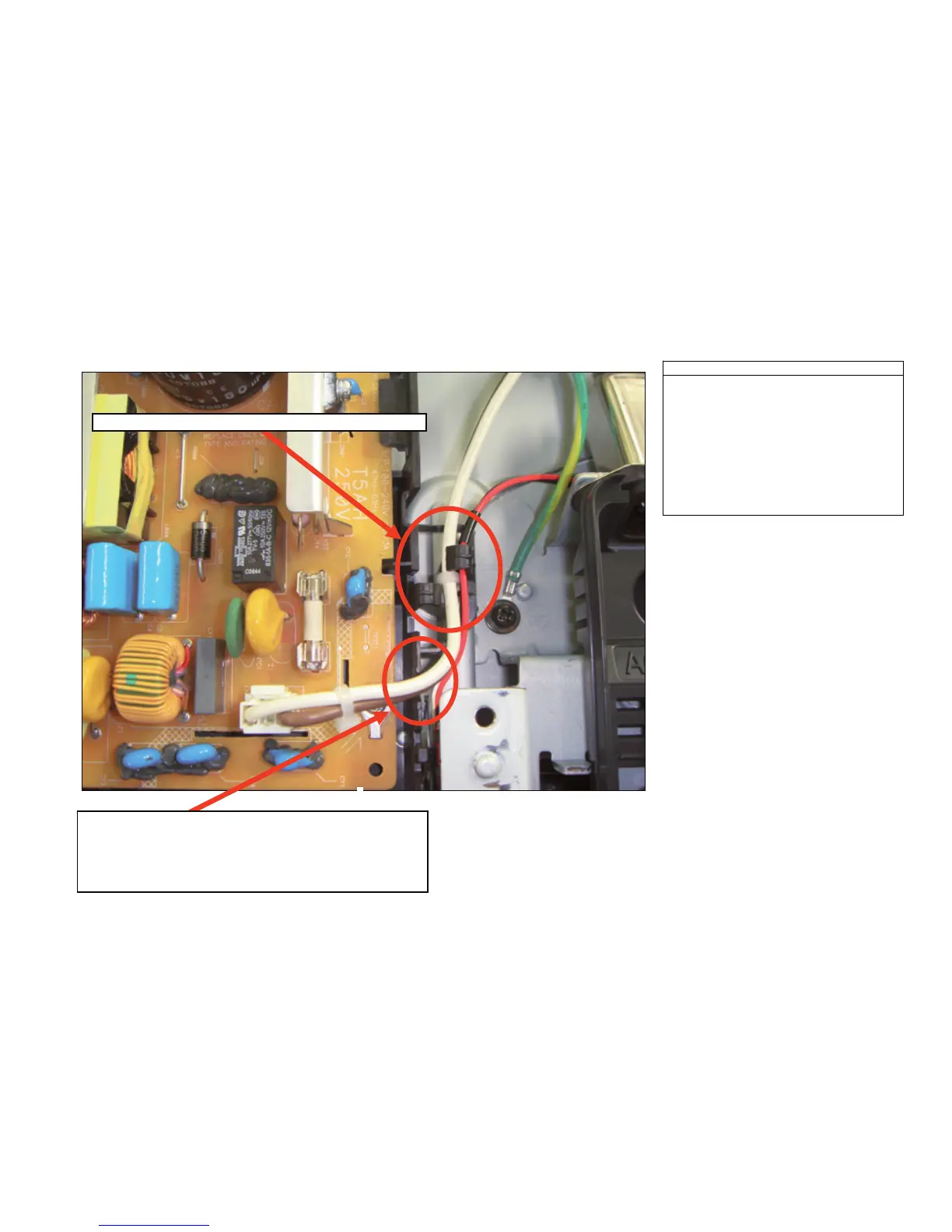

Install AC Inlet Connector and dress as
shown.
Make Sure Earth GND wire is screwed
into Lower LCD Bracket.
Dress Right Speaker/H4/AC Inlet cables
in G-Bracket Clip.
OPERATION PROCESS
CAUTION: Instruct Operators NOT to push wires in bracket
with a lot of force. Cut-out in Bracket design is just to GUIDE
wires away from heat-sink. Cut-out is NOT designed to hold
wires inside channel securely!! IF Operator pushes on wires
while they are in cut-out, damage/cut can occur in insulation.
Dress all H4/Right Speaker/AC Inlet cables in G-Bracket Clip
G1D BOARD (CONTINUED)
To Next Page
