39
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-32S3000 ONLY

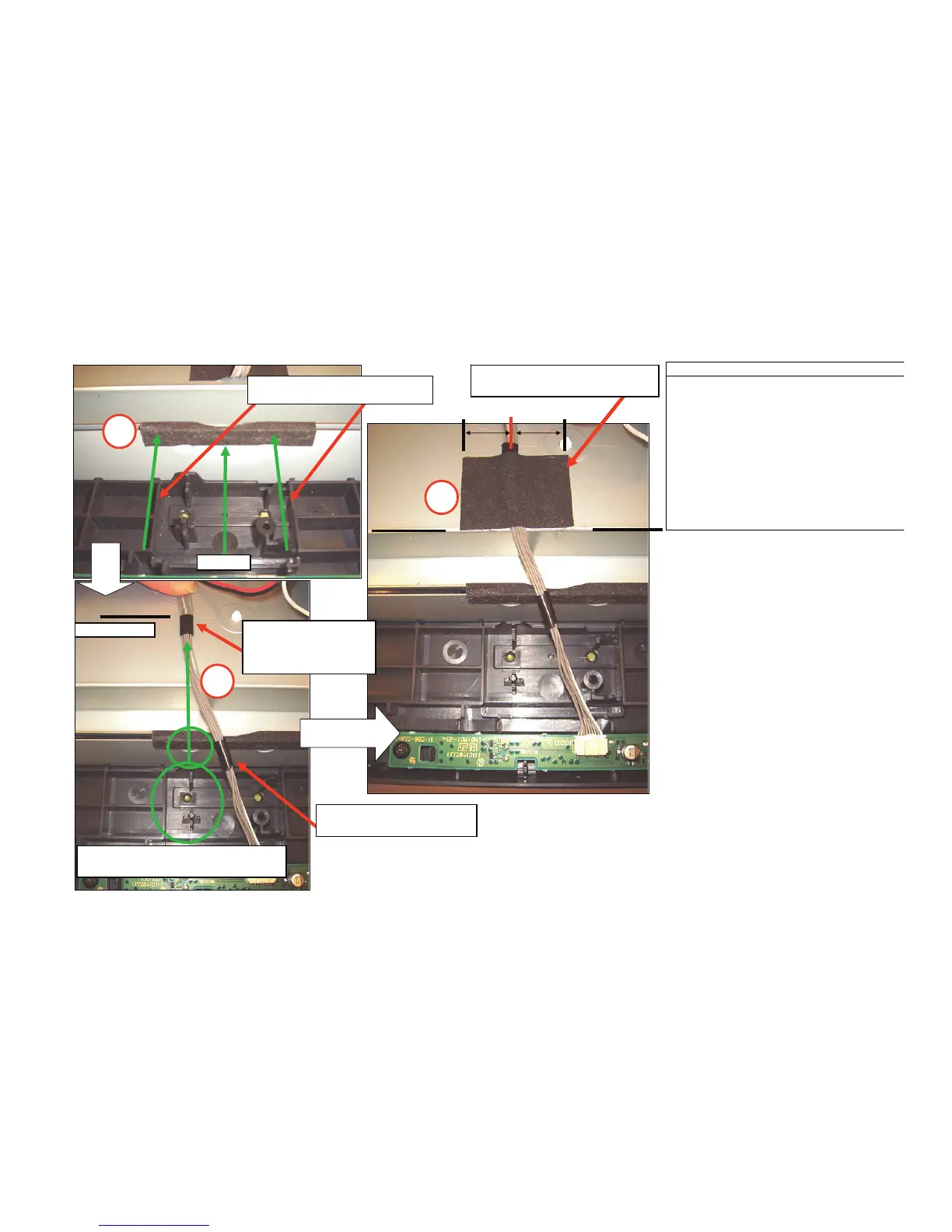

1. Apply Sheet Core C to edge of Panel to
cover sharp edge of panel.
2. Align H3 harness as shown in photo. Take
caution not to create tension on the H3
connector! Connector will unlock.
3. Apply Cushion D as shown in 3rd photo.
OPERATION PROCESS
Use boss and SONY emblem hole
on bezel to align UL tape on harness.
Make sure 1st tape is below
himelon tape on panel edge.
1
2
3
Align top of UL tape with
"Score Line" on Panel and
center of "Circle" on Panel
Frame.
Use Ribs on Bezel as Reference to
position Sheet Core C on Panel edge.
㪤㫀㪻㪄㪧㫆㫀㫅㫋
㪪㪺㫆㫉㪼㩷㪣㫀㫅㪼㩷㪿㪼㫀㪾㪿㫋
Center Cushion D over Wires.
Align Cushion D w/edge of panel.
H3 BOARD HARNESS
To Next Page
