46
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-32S3000 ONLY

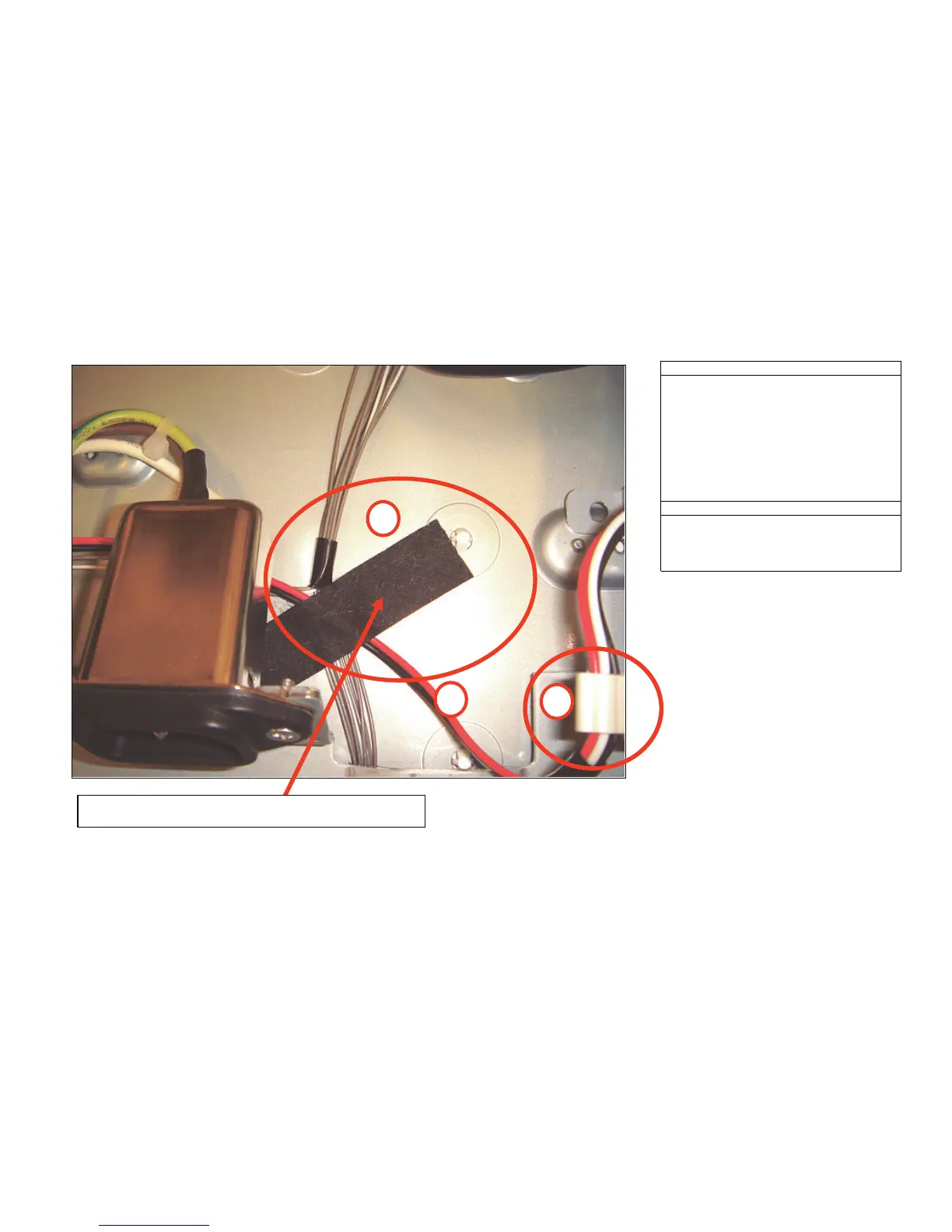

1. Wire Dress Speaker Cables as shown.
2. BOTH R/L cables are dressed in FGC-3
conductive clip.
3. Apply LCD TAPE to BOTH H4-Bd AND Right
Speaker Wires.
TORQUE: 6kg.cm (+-1.0kg.cm)
OPERATION PROCESS
TORQUE SPECIFICATION
1
2
3
Apply Sheet Core C to BOTH H4/H3 AND Right Speaker Wires.
Align edge of tape with White Plastic Peg On Panel.
SPEAKER HARNESS
To Next Page
