45
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-32S3000 ONLY

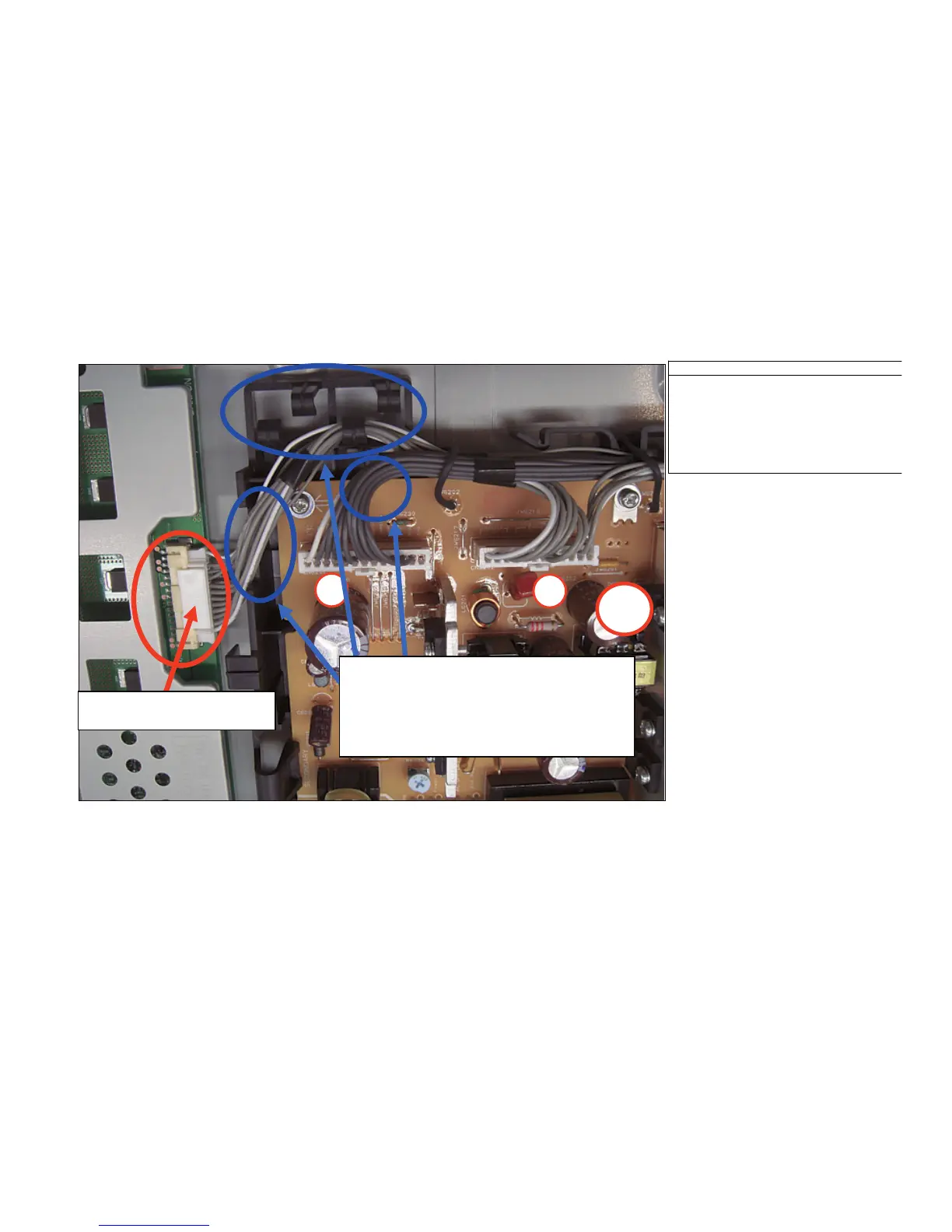

Install/Wire Dress Harnesses as shown.
CAUTION: Make sure INVERTER CONN.
is Fully LOCKED!!
OPERATION PROCESS
1
2
CAUTION: Make Sure Inverter
Connector is Fully LOCKED!
G1H-
Bd
NOTE: NEW G-Bracket Change!
Inverter wire is NOT dressed in 1st clip.
Inverter wires are dressed in cut-out on
side of the G-Bracket and the 2nd clip on right.
13P harness is NOT dressed in any of the
clips above PWB!
G1H BOARD
To Next Page
