48
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-32S3000 ONLY

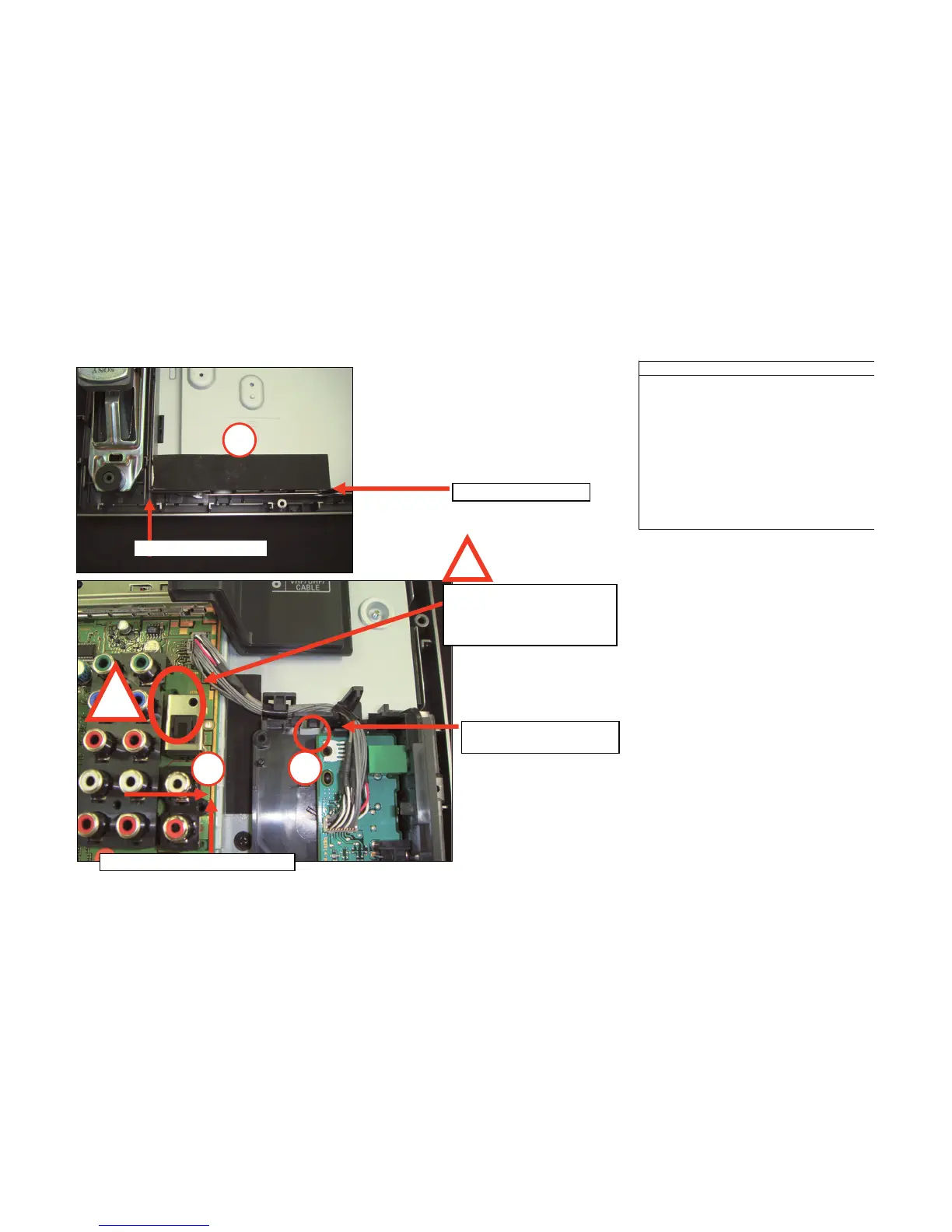

1. Apply Sheet Core A to Panel in location
where U1 bracket is to be installed
(Use edges of panel as guide)
2. Make sure DTT Shield has Sheet Core C
installed as per diagram.
3. Wire Dress 20P Harness as shown.
Put attention on DIRECTION of wires from
BU-Bd inside side clamp on U1 Bracket.
OPERATION PROCESS
2
1
Align side edge of panel
Align with bottom of panel
Sheet Core C (Installed by Vendor)
3
3/4/2007 LATE CHANGE:
ADD 3x12mm SCREW Here.
DO NOT Cross wires over
Optical Output Connector
(Pinch Point when Rr. Cover is
installed).
To Next Page
